N2501-12-08-B

N2501-12-08-B - Image 2

N2501-12-08-B - Image 3

N2501-12-08-B - Image 4

N2501-12-08-B - Image 5

N2501-12-08-B - Image 6

Product Code: n2501-12-08-b Brand: Brennan Inc

Options

Description

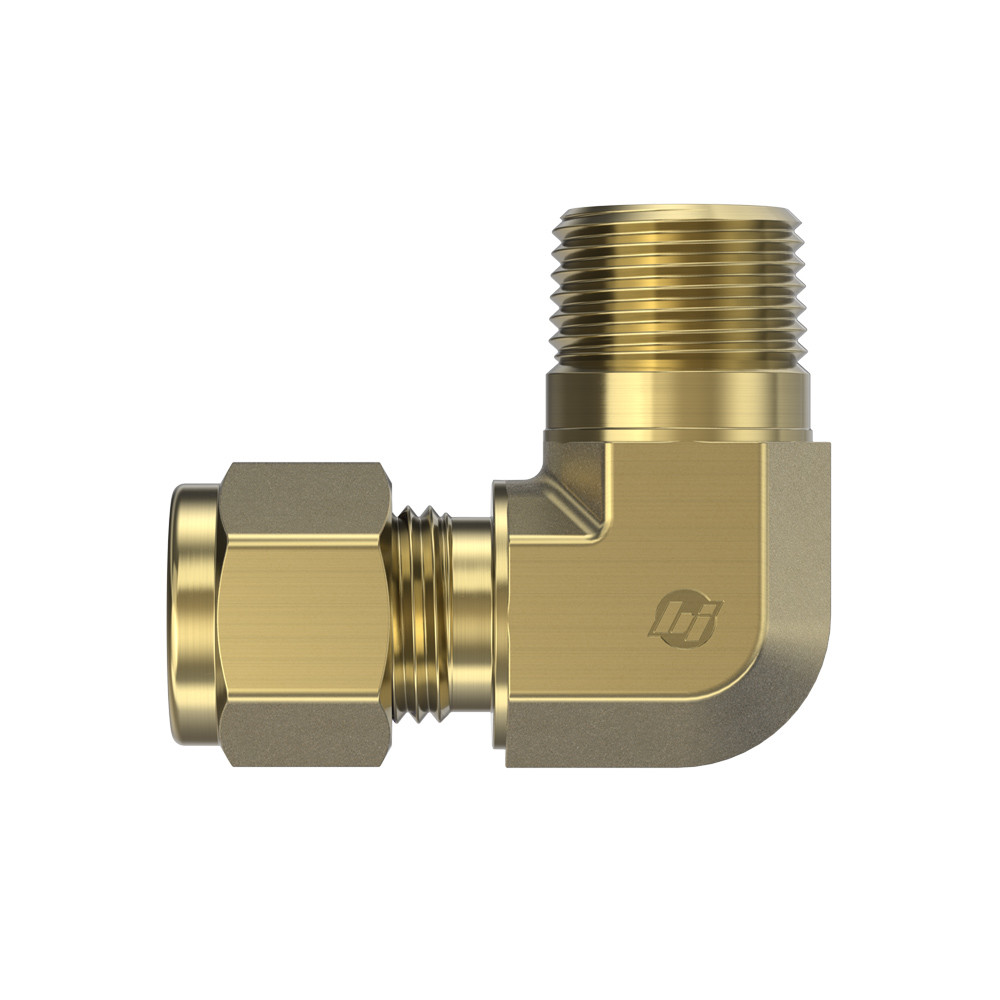

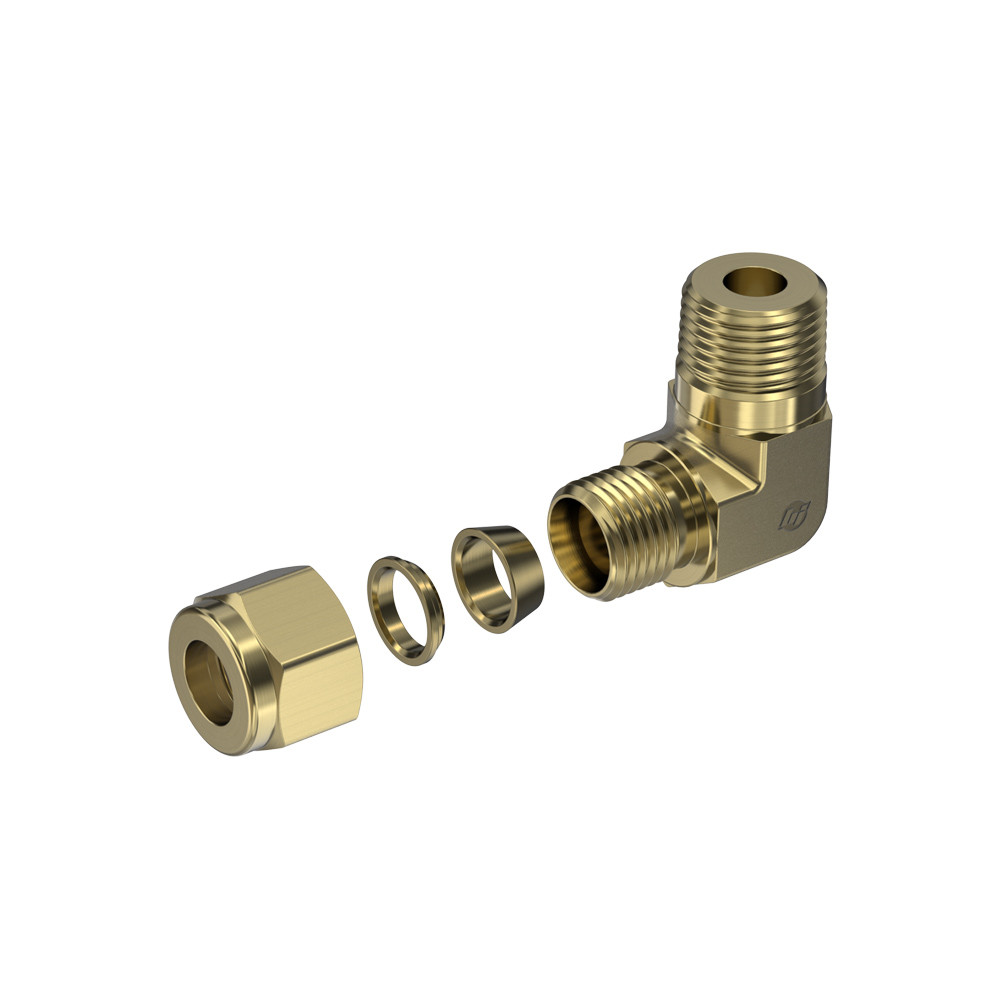

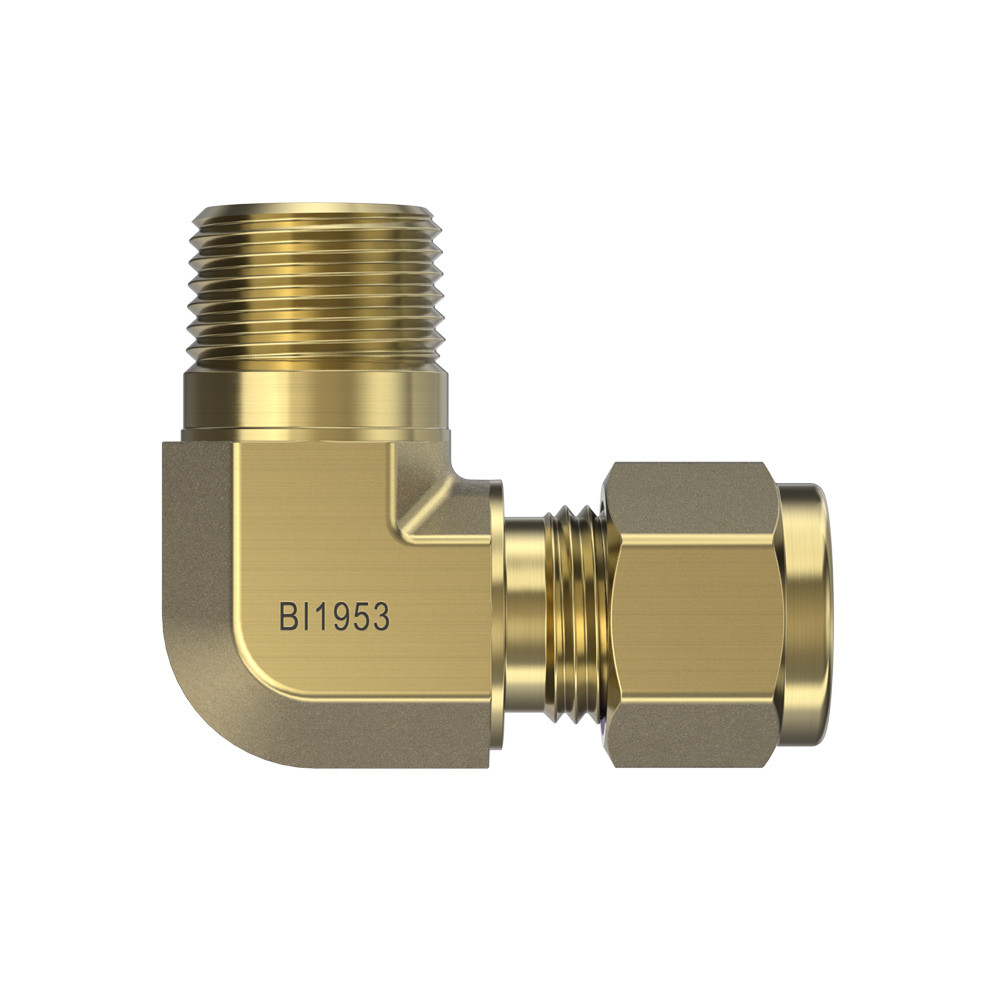

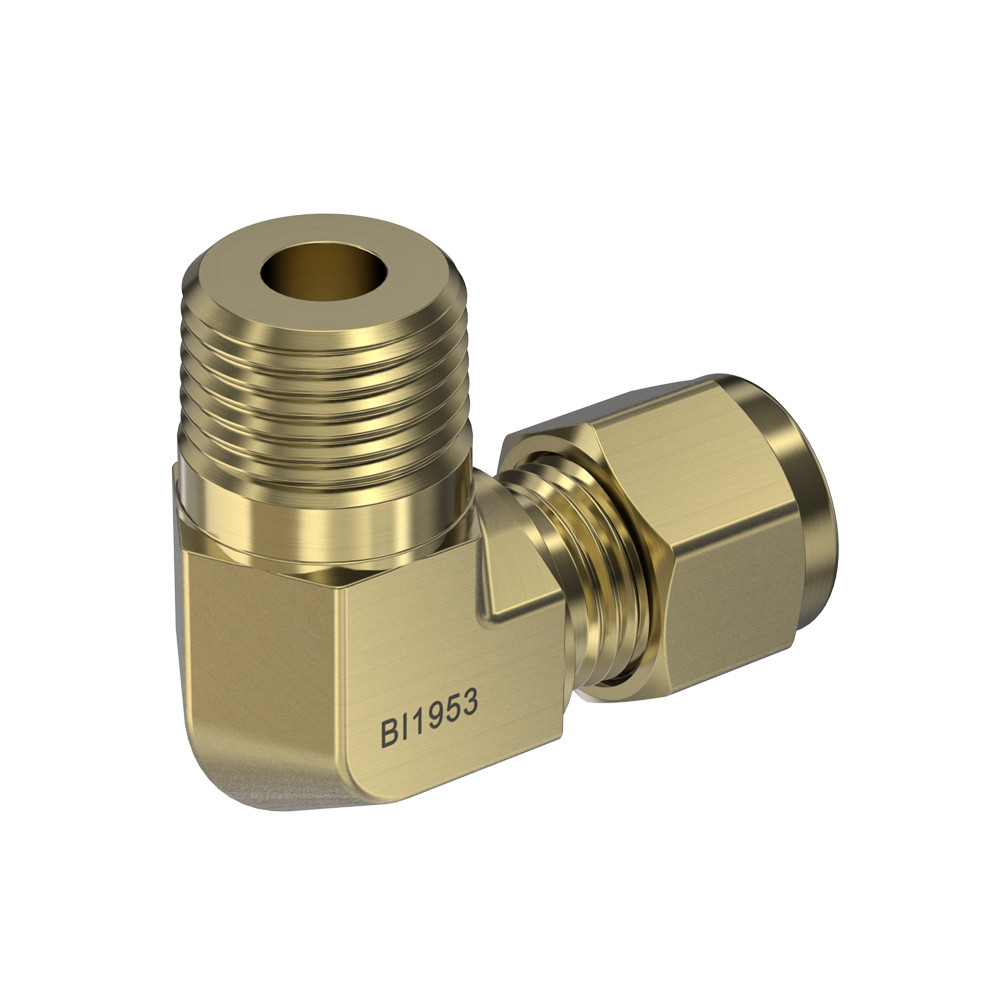

Brass, Brennan Tube Fitting 90° Male Elbow, 3/4″ Tube OD x 1/2″ Male NPT

Additional information

Connection Details	Side 1 Connection Type: Double Ferrule Compression Side 1 Tube OD: 3/4" Side 1 Thread Type: 1-20 UNEF Side 1 Role: Tube Connection Side 1 Replacement Ferrule: N0319-F-12-B, N0319-B-12-B Side 1 Replacement Nut: N0318-12-B Side 1 Tube Fitting System: Brennan N Series Side 2 Connection Type: Male NPT Side 2 Pipe Size: 1/2" Side 2 Thread Type: 1/2-14 NPT Side 2 Standard: ASME/ANSI B1.20.1 Side 2 Role: Pipe Connection
Body & Materials	Shape: 90° Elbow Shape Type: Male Elbow Primary Material: Brass Material Grade: ASTM B124 CA37700 Length: 1.17"
Dimensions	Hex/Wrench: 1.0625" Overall Length/Centerline: 1.17" Weight: 0.5312 lb
Performance Specifications	Working Pressure: 700 psi Temperature Range: -325°F to 400°F Suggested Tubing: High-quality, soft annealed seamless copper tubing manufactured to ASTM B75 or equivalent standards. Alternative: Soft annealed (Temper O) copper water tube, Type K or Type L, manufactured to ASTM B88. Condition: Tubing must be free of surface defects and scratches, suitable for reliable flaring and bending. Hardness: Soft annealed condition required to ensure proper bite and sealing in compression fittings. Tolerances: OD and wall thickness tolerances should conform to the applicable ASTM standard. Pressure Rating Notes: See Tube Pressure Rating Chart
Cross References	Parker IPD ALOK Part Number: 12MSEL8N-B Swagelok Part Number: B-1210-2-8
Series Configuration	Double Ferrule Compression x Male NPT
Side 1 Connection Type	Double Ferrule Compression
Side 2 Connection Type	Male NPT
Product Type	Fittings

Documents

Assembly Instructions

Pressure Rating Tables
