N2428-04-02-B - Capital Rubber & Gasket: A Singer Industrial Company

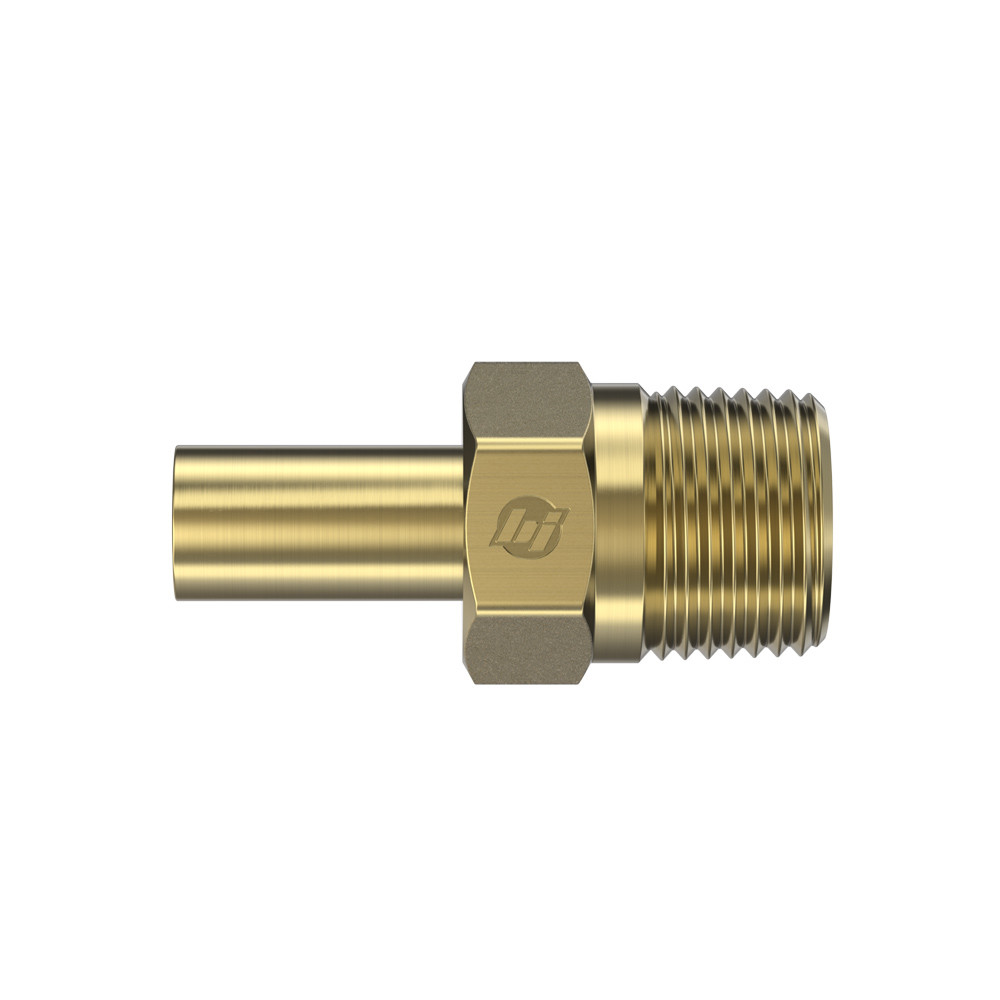

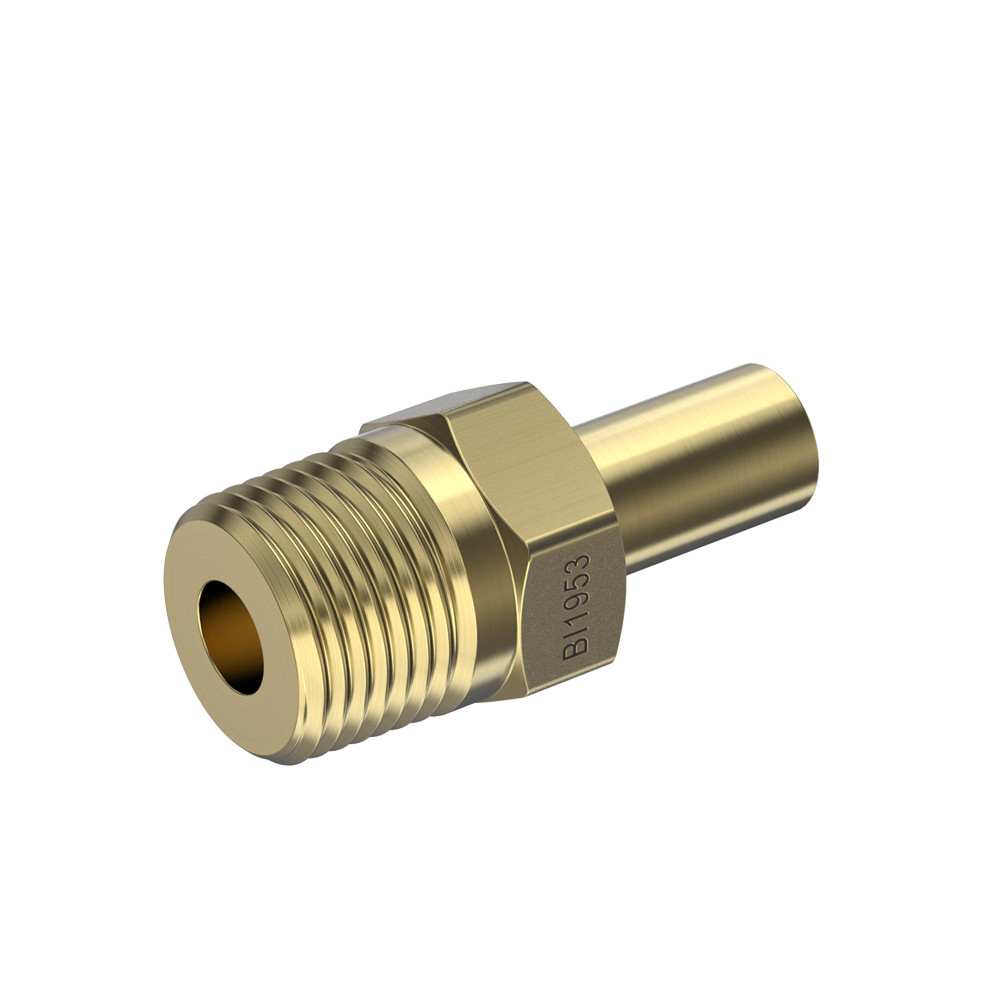

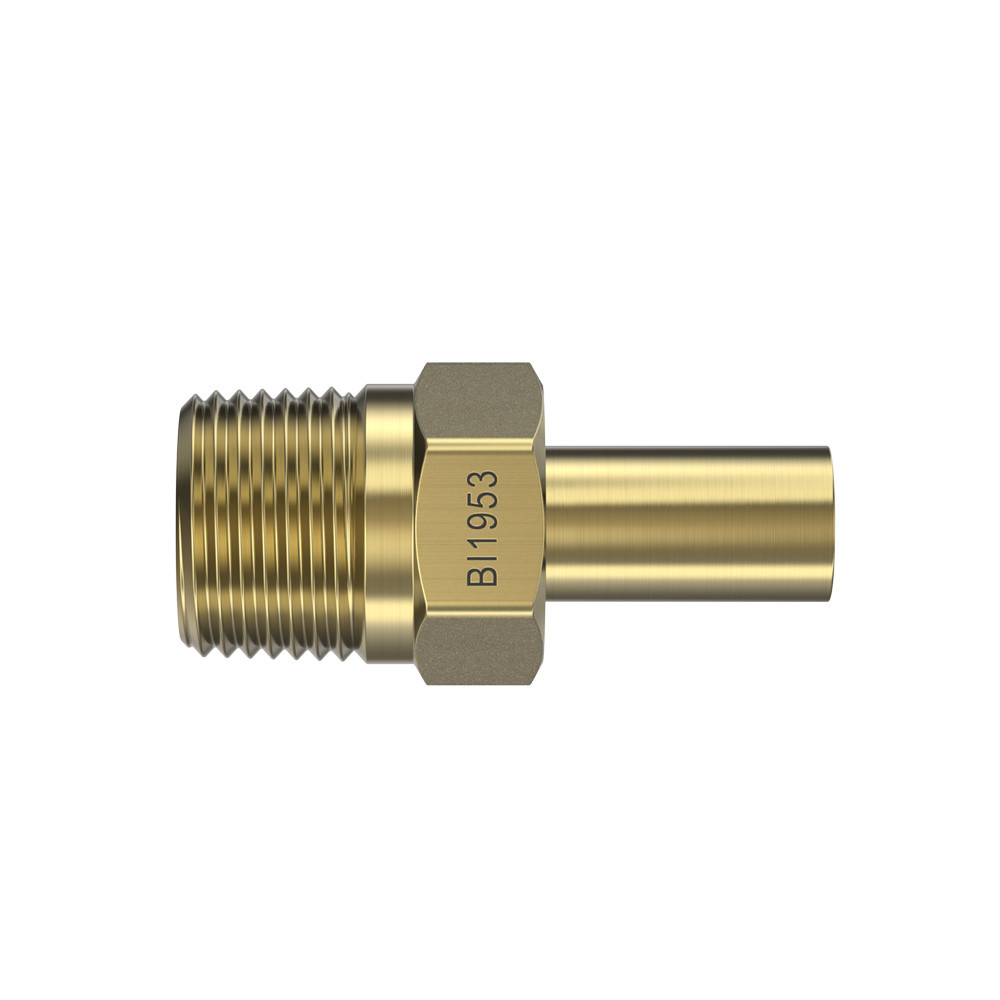

Brass, Brennan Tube Fitting Tube Stub Male NPT Adapter, 1/4″ Tube Stub x 1/8″ Male NPT

Connection Details	Side 1 Connection Type: Tube Stub Side 1 Tube OD: 1/4" Side 1 Role: Tube Connection Side 1 Tube Fitting System: Brennan N Series Side 2 Connection Type: Male NPT Side 2 Pipe Size: 1/8" Side 2 Thread Type: 1/8-27 NPT Side 2 Standard: ASME/ANSI B1.20.1 Side 2 Role: Pipe Connection
Body & Materials	Shape: Straight Shape Type: Tube Adapter Primary Material: Brass Material Grade: ASTM B16 C36000 Length: 1.25"

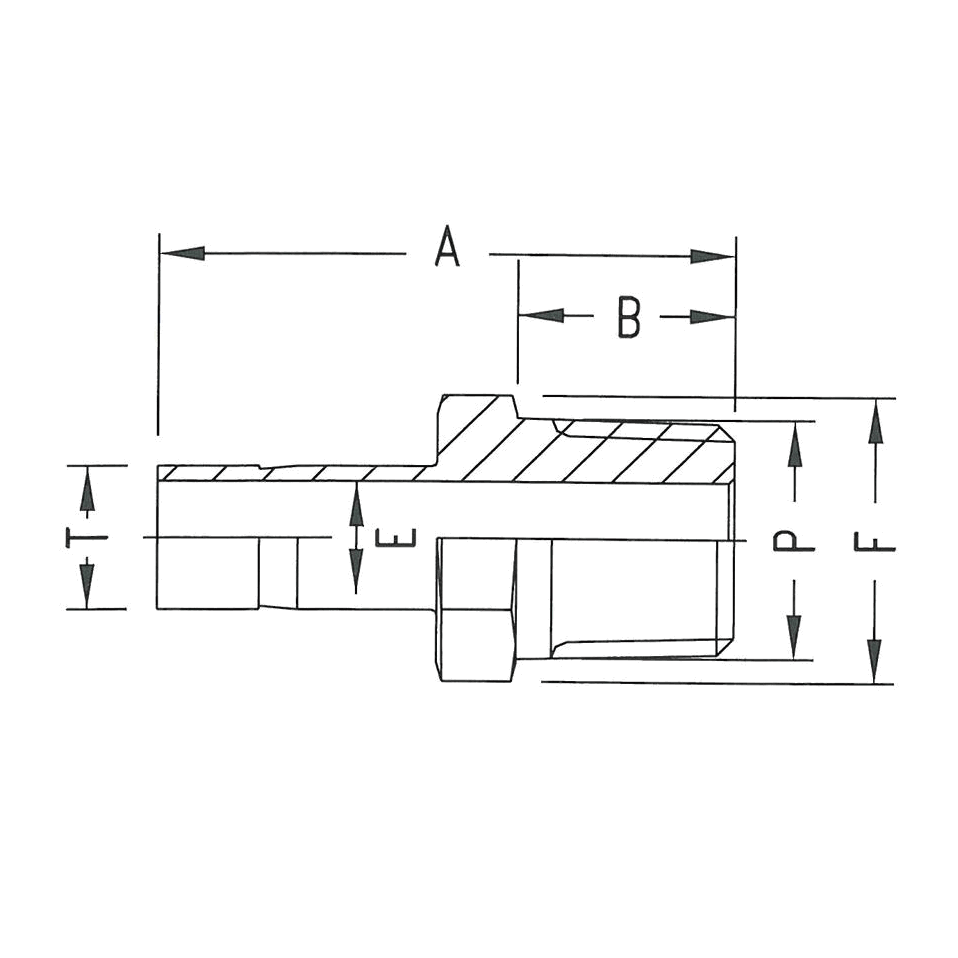

Dimensions	Hex/Wrench: 0.4375" Overall Length/Centerline: 1.25" Weight: 0.0592 lb
Performance Specifications	Working Pressure: 1600 psi Temperature Range: -325°F to 400°F Pressure Rating Notes: See Tube Pressure Rating Chart
Cross References	Parker IPD ALOK Part Number: 4MA2N-B Swagelok Part Number: B-4-TA-1-2
Series Configuration	Tube Stub x Male NPT
Side 1 Connection Type	Tube Stub
Side 2 Connection Type	Male NPT
Product Type	Fittings
