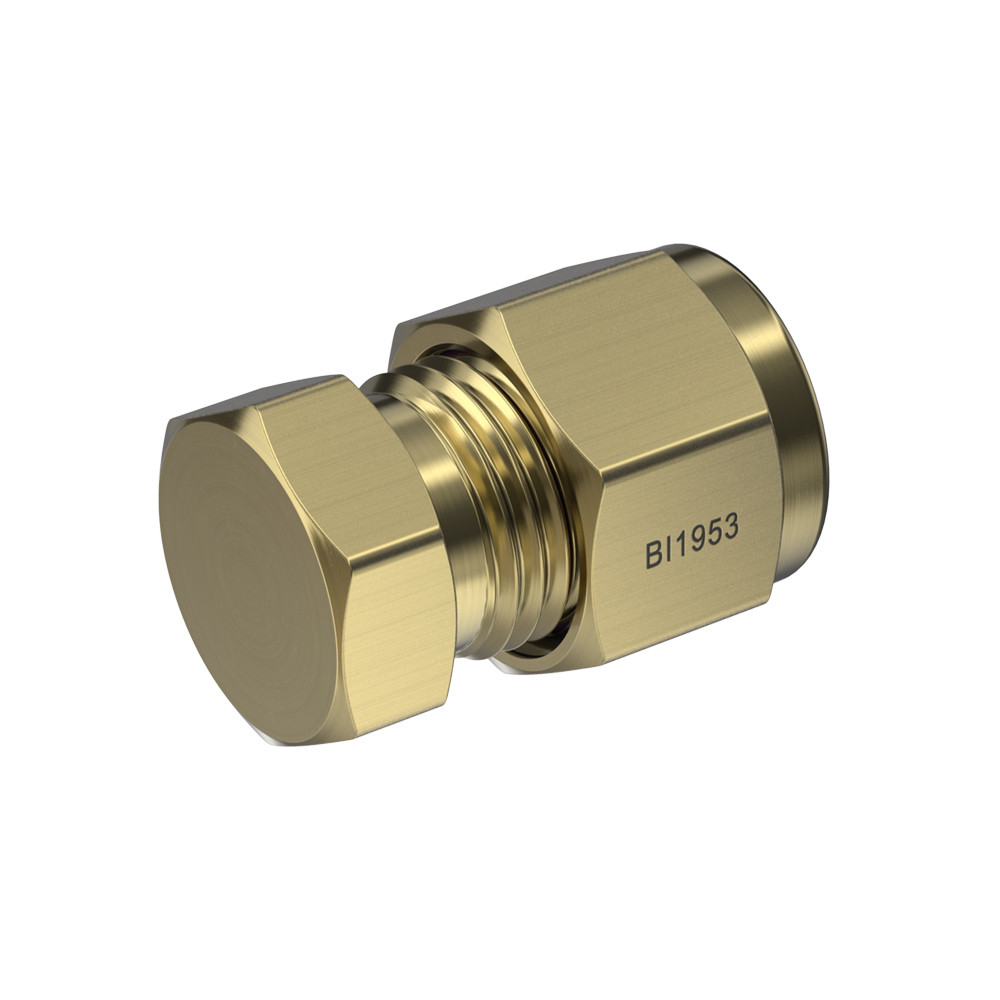

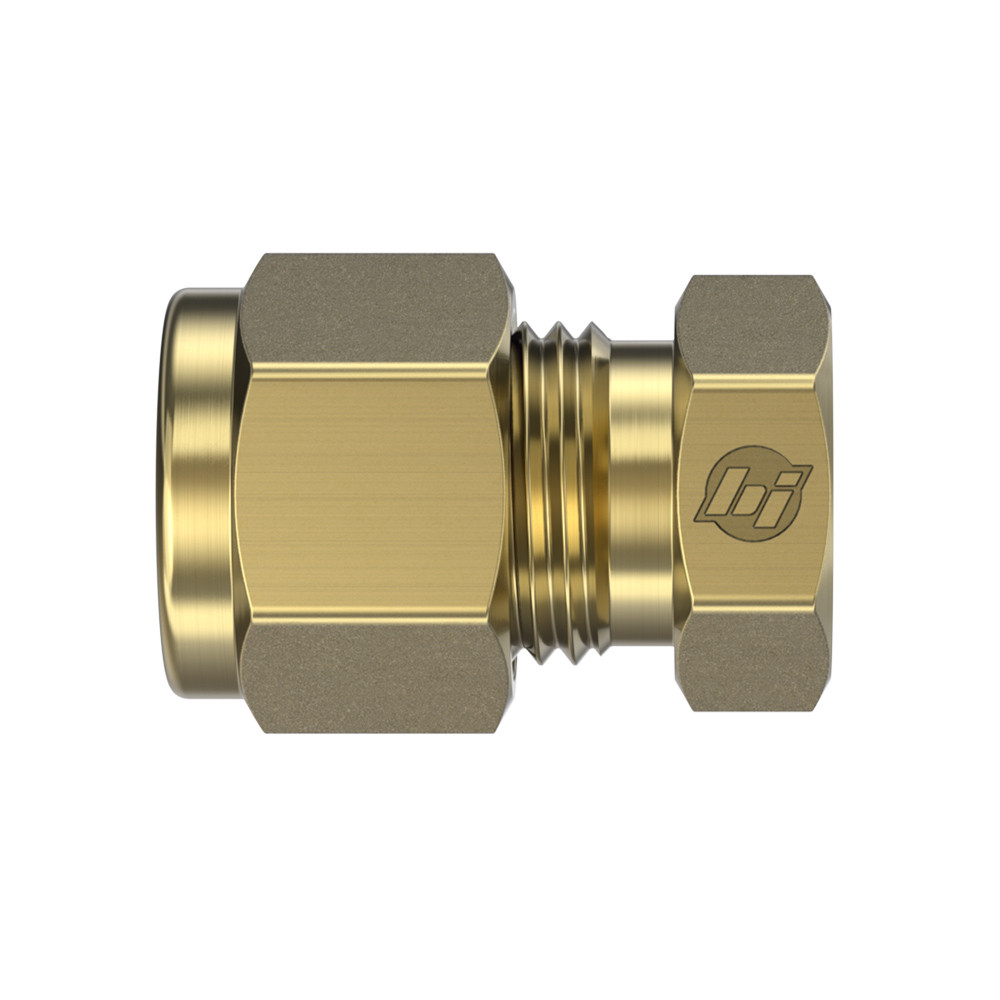

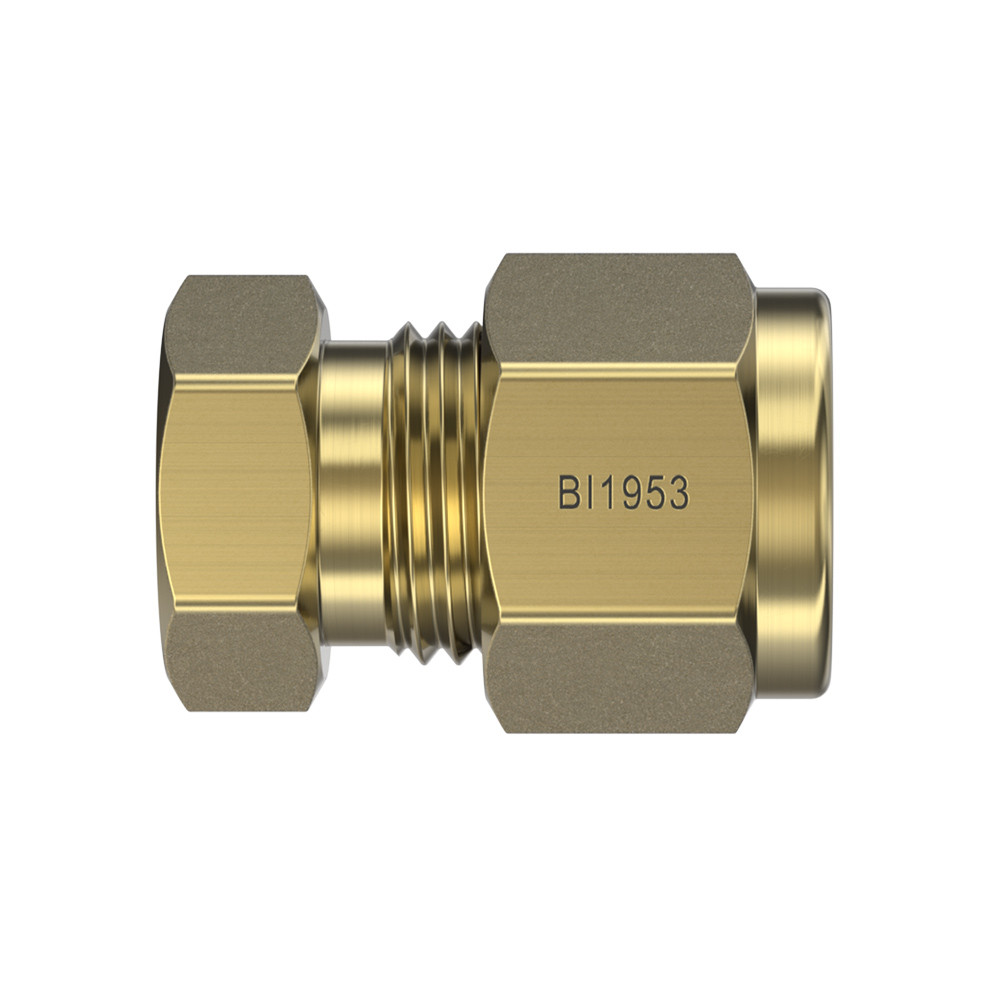

N2408-01-B - Capital Rubber & Gasket: A Singer Industrial Company

01IN CAP Brass

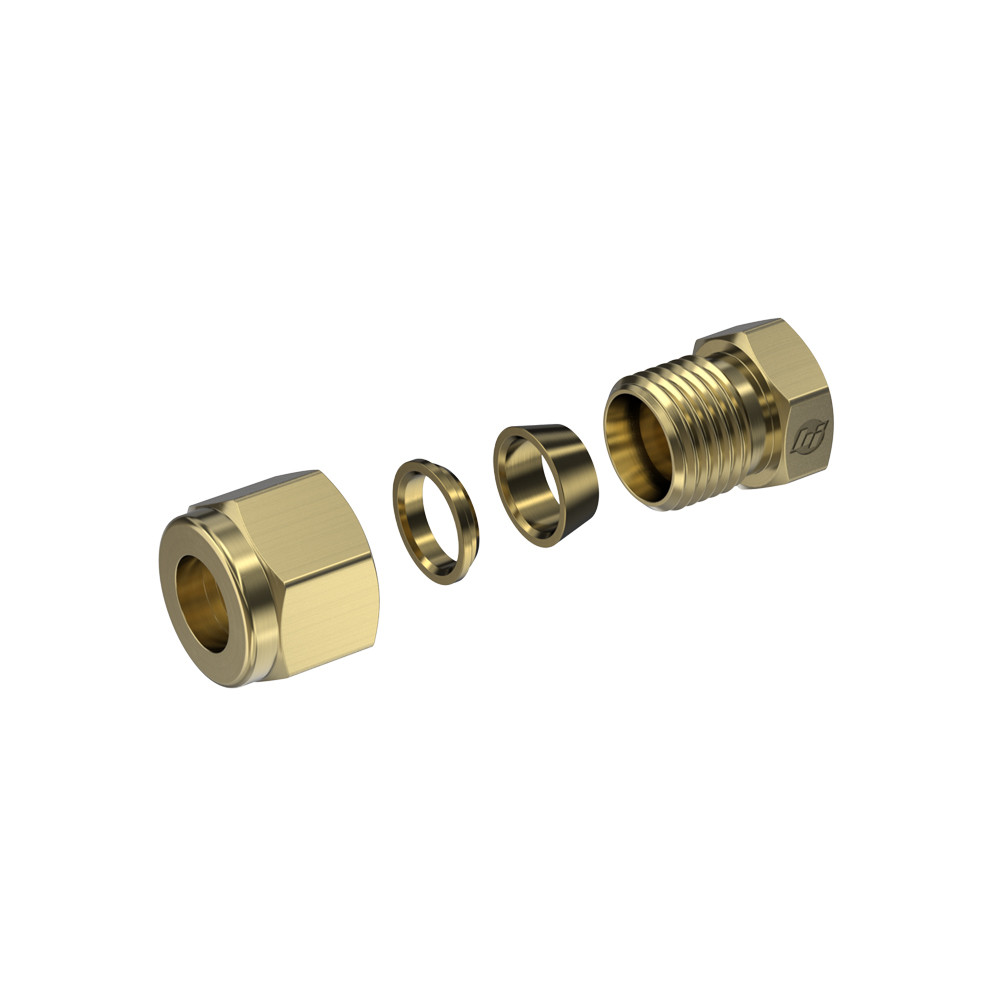

Connection Details	Connection Type: Double Ferrule Compression Tube OD: 1/16" Thread Type: 3/16-32 UNEF Standard: ASME B31.3 Connection Standard: ASME B31.3 Tube Fitting System: Brennan N Series Replacement Ferrule: N0319-F-01-B, N0319-B-01-B Replacement Nut: N0318-01-B
Body & Materials	Shape: Cap Primary Material: Brass Material Grade: ASTM B16 C36000 Length: 0.59"

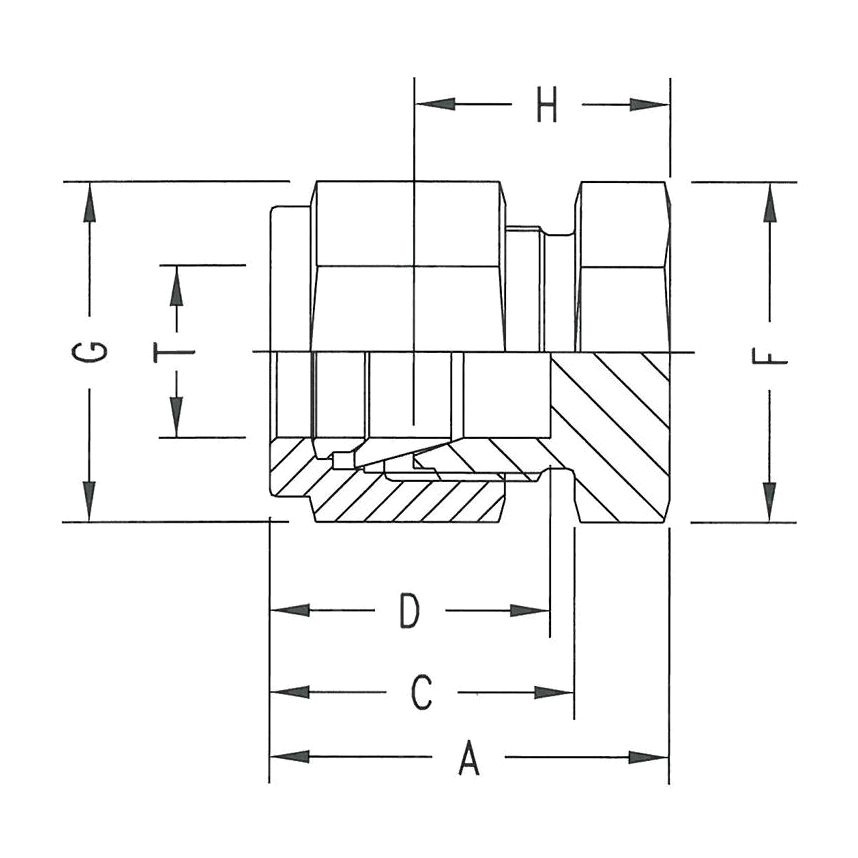

Dimensions	Hex/Wrench: 0.3125" Overall Length/Centerline: 0.59" Weight: 0.1021 lb
Performance Specifications	Working Pressure: 5400 psi Temperature Range: -325°F to 400°F Pressure Rating Notes: See Tube Pressure Rating Chart
Cross References	Parker IPD ALOK Part Number: 1BLEN1-B Swagelok Part Number: B-100-C
Series Configuration	Double Ferrule Compression Cap
Side 1 Connection Type	Double Ferrule Compression
Product Type	Fittings
