N2406-06-04-B - Capital Rubber & Gasket: A Singer Industrial Company

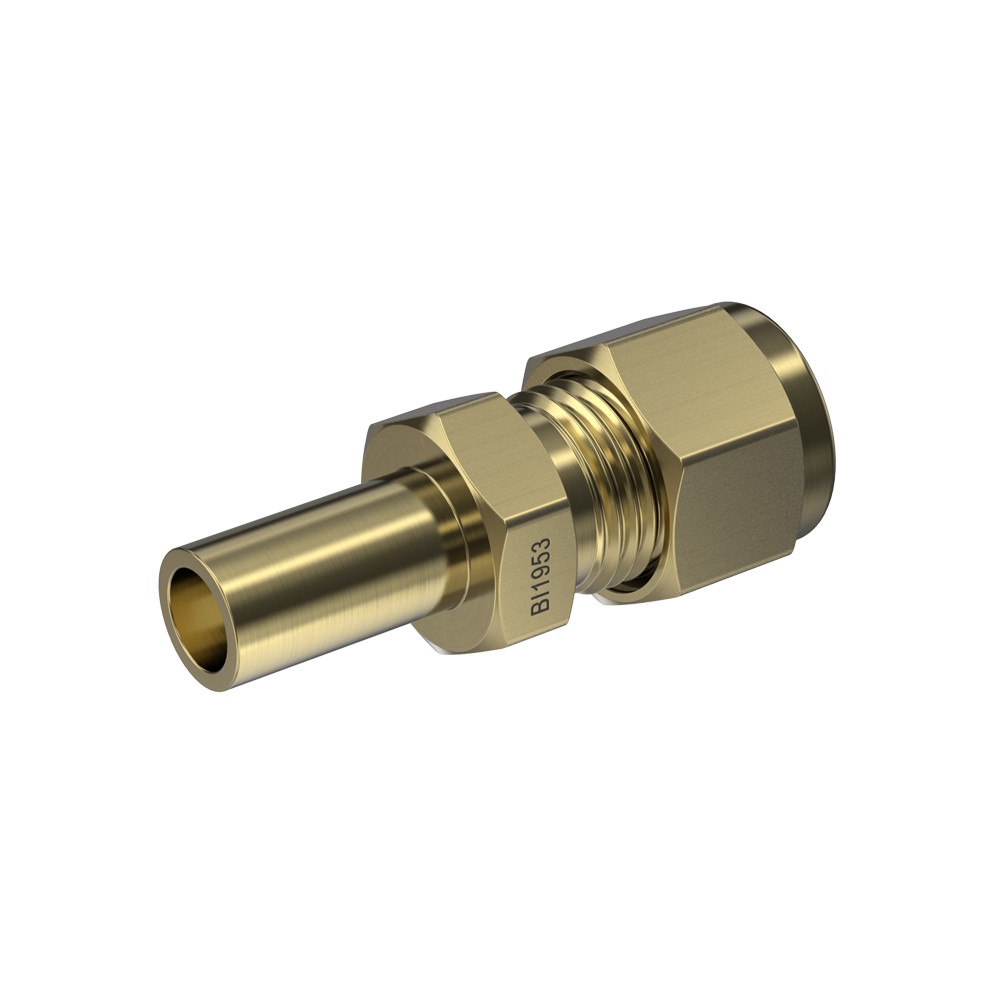

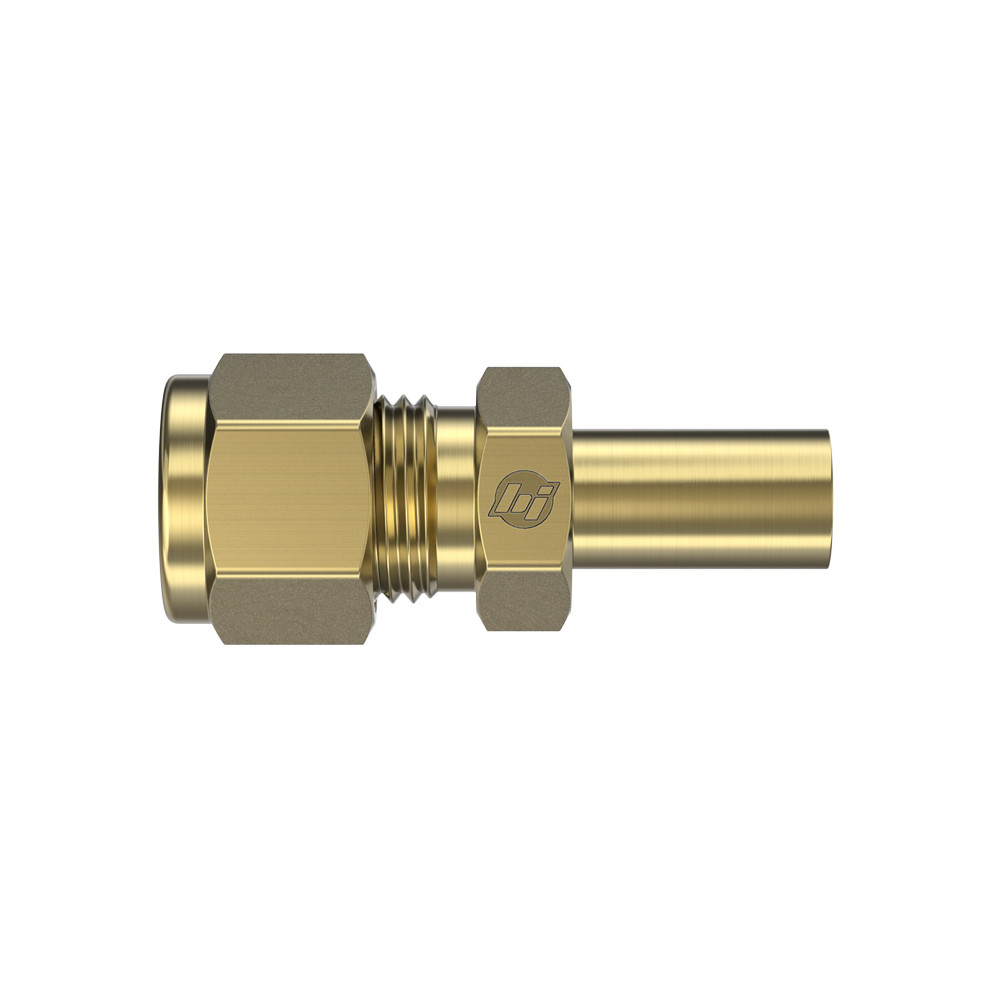

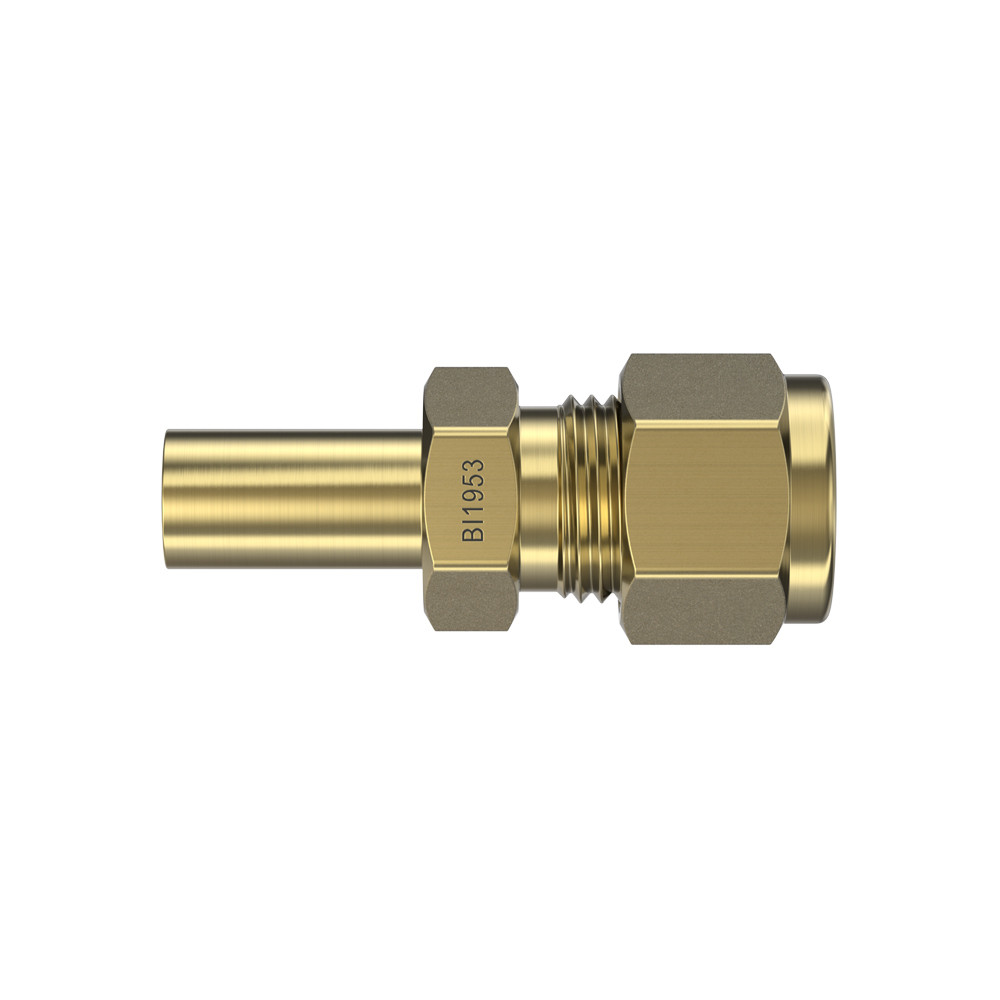

Brass, Brennan Tube Fitting Reducer, 3/8″ Tube OD x 1/4″ Tube Stube

Connection Details	Side 1 Connection Type: Double Ferrule Compression Side 1 Tube OD: 3/8" Side 1 Thread Type: 9/16-20 UN Side 1 Role: Tube Connection Side 1 Replacement Ferrule: N0319-F-06-B, N0319-B-06-B Side 1 Replacement Nut: N0318-06-B Side 1 Tube Fitting System: Brennan N Series Side 2 Connection Type: Tube Stub Side 2 Tube OD: 1/4" Side 2 Role: Tube Connection Side 2 Tube Fitting System: Brennan N Series
Body & Materials	Shape: Straight Shape Type: Reducer Primary Material: Brass Material Grade: ASTM B16 C36000 Length: 1.63"
Dimensions	Hex/Wrench: 0.625" Overall Length/Centerline: 1.63" Weight: 0.1056 lb
Performance Specifications	Working Pressure: 1100 psi Temperature Range: -325°F to 400°F Pressure Rating Notes: See Tube Pressure Rating Chart
Cross References	Parker IPD ALOK Part Number: 4TUR6-B Swagelok Part Number: B-600-R-4
Series Configuration	Double Ferrule Compression x Tube Stub
Side 1 Connection Type	Double Ferrule Compression
Side 2 Connection Type	Tube Stub
Product Type	Fittings
