N2404-04-01-B

N2404-04-01-B - Image 2

N2404-04-01-B - Image 3

N2404-04-01-B - Image 4

N2404-04-01-B - Image 5

N2404-04-01-B - Image 6

Product Code: n2404-04-01-b Brand: Brennan Inc

Options

Description

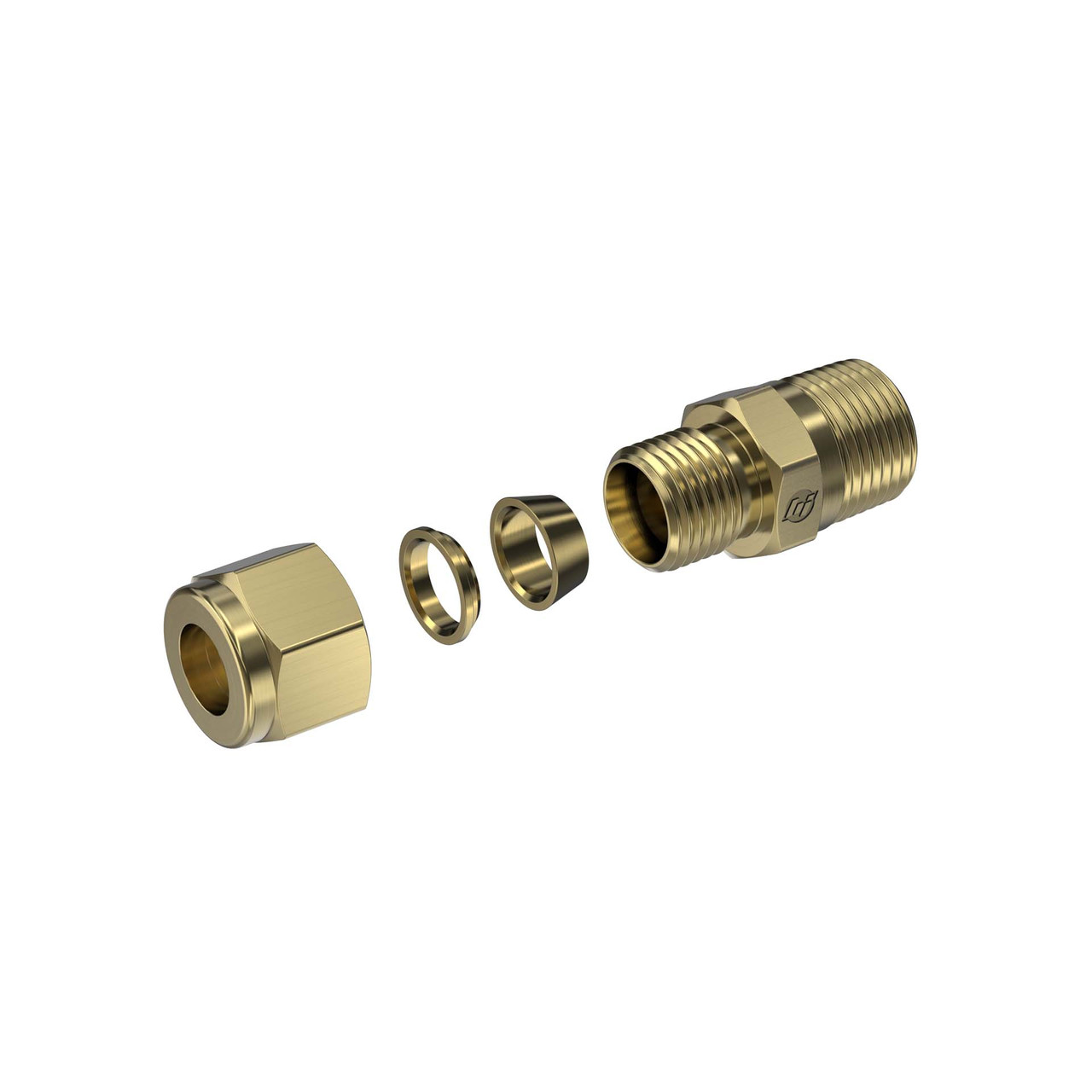

Brass, Brennan Tube Fitting Male Connector, 1/4″ Tube OD x 1/16″ Male NPT

Additional information

Connection Details	Side 1 Connection Type: Double Ferrule Compression Side 1 Tube OD: 1/4" Side 1 Thread Type: 7/16-20 UNF Side 1 Role: Tube Connection Side 1 Replacement Ferrule: N0319-F-04-B, N0319-B-04-B Side 1 Replacement Nut: N0318-04-B Side 1 Tube Fitting System: Brennan N Series Side 2 Connection Type: Male NPT Side 2 Pipe Size: 1/16" Side 2 Thread Type: 1/16-27 NPT Side 2 Standard: ASME/ANSI B1.20.1 Side 2 Role: Pipe Connection
Body & Materials	Shape: Straight Shape Type: Male Connector Primary Material: Brass Material Grade: ASTM B16 C36000 Length: 1.29"

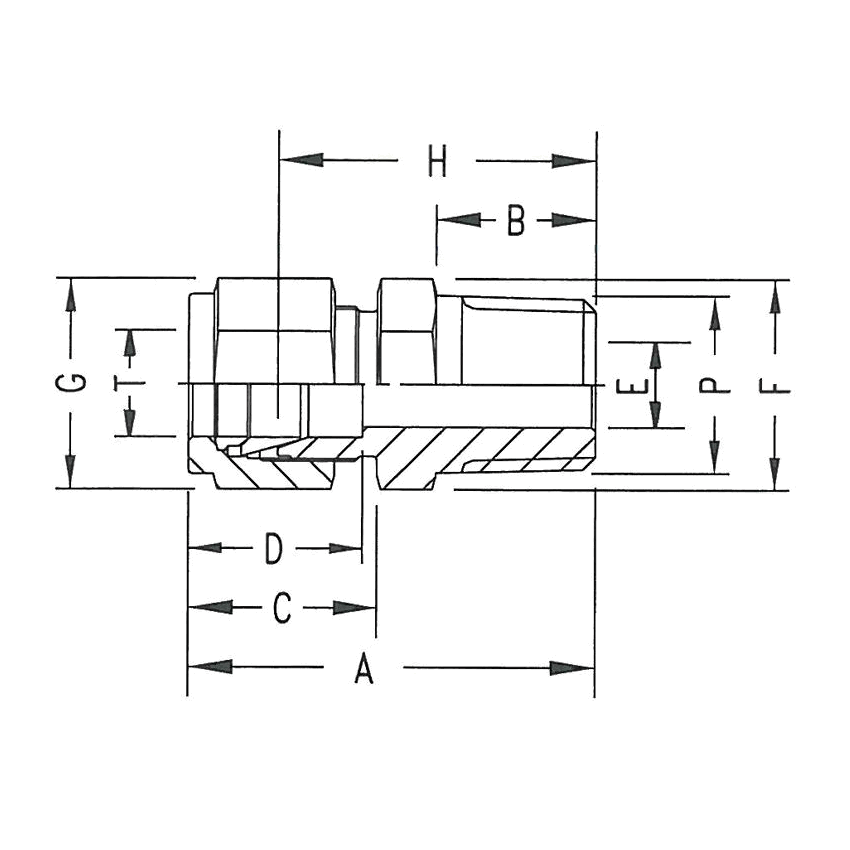

Dimensions	Hex/Wrench: 0.5" Overall Length/Centerline: 1.29" Weight: 0.0905 lb
Performance Specifications	Working Pressure: 1600 psi Temperature Range: -325°F to 400°F Suggested Tubing: High-quality, soft annealed seamless copper tubing manufactured to ASTM B75 or equivalent standards. Alternative: Soft annealed (Temper O) copper water tube, Type K or Type L, manufactured to ASTM B88. Condition: Tubing must be free of surface defects and scratches, suitable for reliable flaring and bending. Hardness: Soft annealed condition required to ensure proper bite and sealing in compression fittings. Tolerances: OD and wall thickness tolerances should conform to the applicable ASTM standard. Pressure Rating Notes: See Tube Pressure Rating Chart
Cross References	Parker IPD ALOK Part Number: 4MSC1N-B
Series Configuration	Double Ferrule Compression x Male NPT
Side 1 Connection Type	Double Ferrule Compression
Side 2 Connection Type	Male NPT
Product Type	Fittings

Documents

Assembly Instructions

Pressure Rating Tables
