FS7202-20-20-NWO-FG - Capital Rubber & Gasket: A Singer Industrial Company

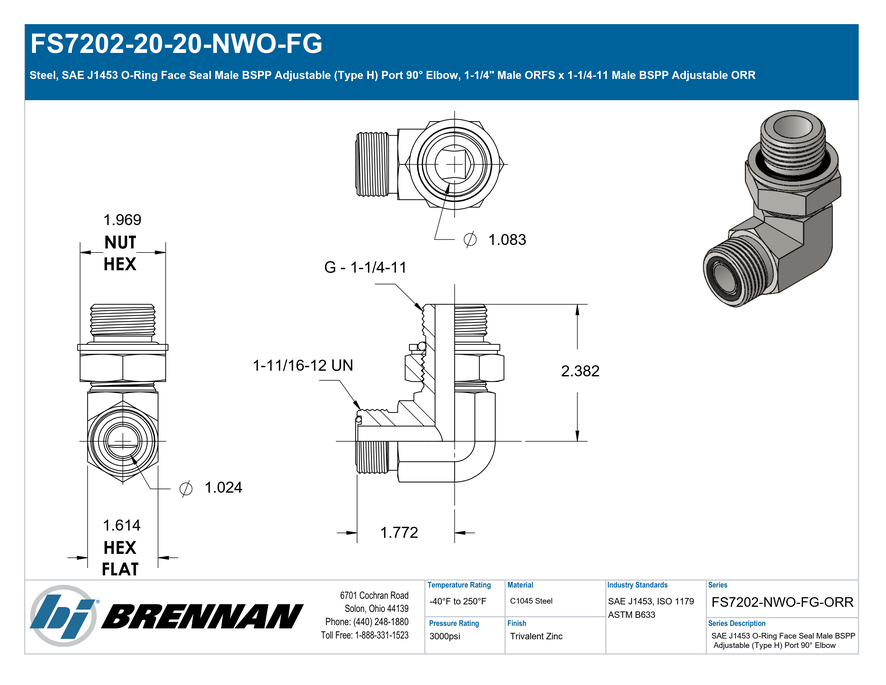

Steel, SAE J1453 O-Ring Face Seal Male BSPP Adjustable (Type H) Port 90° Elbow, 1-1/4″ Male ORFS x 1-1/4-11 Male BSPP Adjustable ORR

Connection Details	Side 1 Connection Type: Male ORFS Side 1 Tube OD: 1-1/4" Side 1 Thread Type: 1-11/16-12 UN Side 1 Standard: SAE J1453 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 1 Replacement Seal: FS4000-20 Side 2 Connection Type: Male BSPP Adjustable ORR Side 2 Thread Type: G – 1-1/4-11 Side 2 Standard: ISO 1179 Side 2 Role: Port Connection Side 2 Replacement Seal: 9901-20 Side 2 Replacement Washer: 9200-20
Body & Materials	Shape: 90° Elbow Shape Type: Male Adjustable Elbow Primary Material: Steel Material Grade: C1045 Plating: Trivalent Zinc Seal Code: NBR Seal Material: Buna-N (Nitrile)
Dimensions	Hex/Wrench: 1.614 Weight: 2.04 lb
Performance Specifications	Working Pressure: 3000 psi Temperature Range: -40°F to 250°F Temperature Notes: Temperature limited by NBR Seal Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 12000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: FF2484T-2020S Parker TFD Part Number: 20C4OMLOS
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male ORFS x Male BSPP Adjustable ORR
Technical Series Configuration	SAE J1453 Male ORFS Tube x ISO 1179 Male BSPP Adjustable ORR Port 90° Elbow
Side 1 Connection Type	Male ORFS
Side 2 Connection Type	Male BSPP Adjustable ORR
Shape	90° Elbow
Product Type	Fittings
