D2500-E04-E04

Connection Details	Side 1 Connection Type: DIN Tube Side 1 Tube OD: 4mm Side 1 Thread Type: M08X1.0 Side 1 Standard: DIN 2353, ISO 8434-1 Side 1 Role: Tube Connection Side 1 DIN Pressure Series: Extra Light Side 2 Connection Type: DIN Tube Side 2 Tube OD: 4mm Side 2 Thread Type: M08X1.0 Side 2 Standard: DIN 2353, ISO 8434-1 Side 2 Role: Tube Connection Side 2 DIN Pressure Series: Extra Light
Body & Materials	Shape: 90° Elbow Shape Type: Union Elbow Primary Material: Steel Material Grade: 11SMnPb30 Plating: Zinc Nickel
Dimensions	Hex/Wrench: 9mm Weight: 0.04 lb
Performance Specifications	Working Pressure: 1450 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 1,000 hrs no red rust per DIN ISO 9227 Burst Pressure: 5800 psi Burst Ratio: 4:1
Cross References	Parker TFD Part Number: W04LLCF
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	DIN Tube x DIN Tube

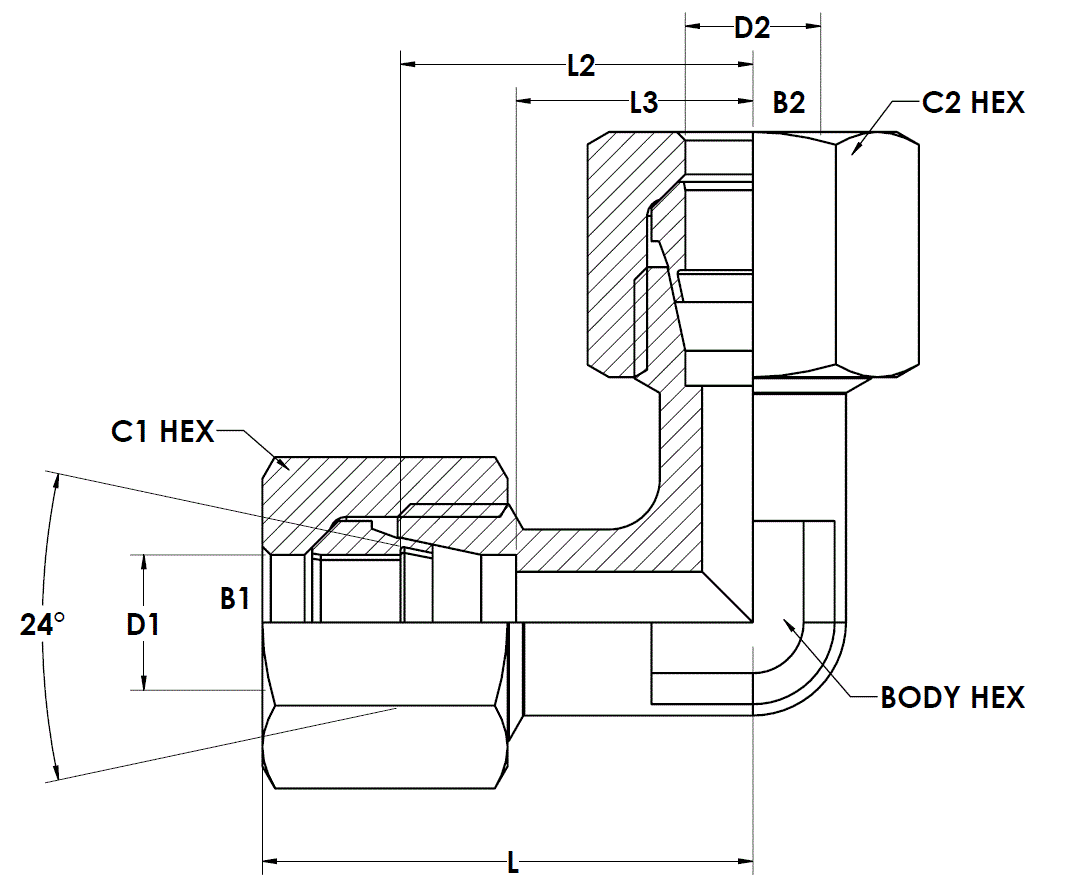

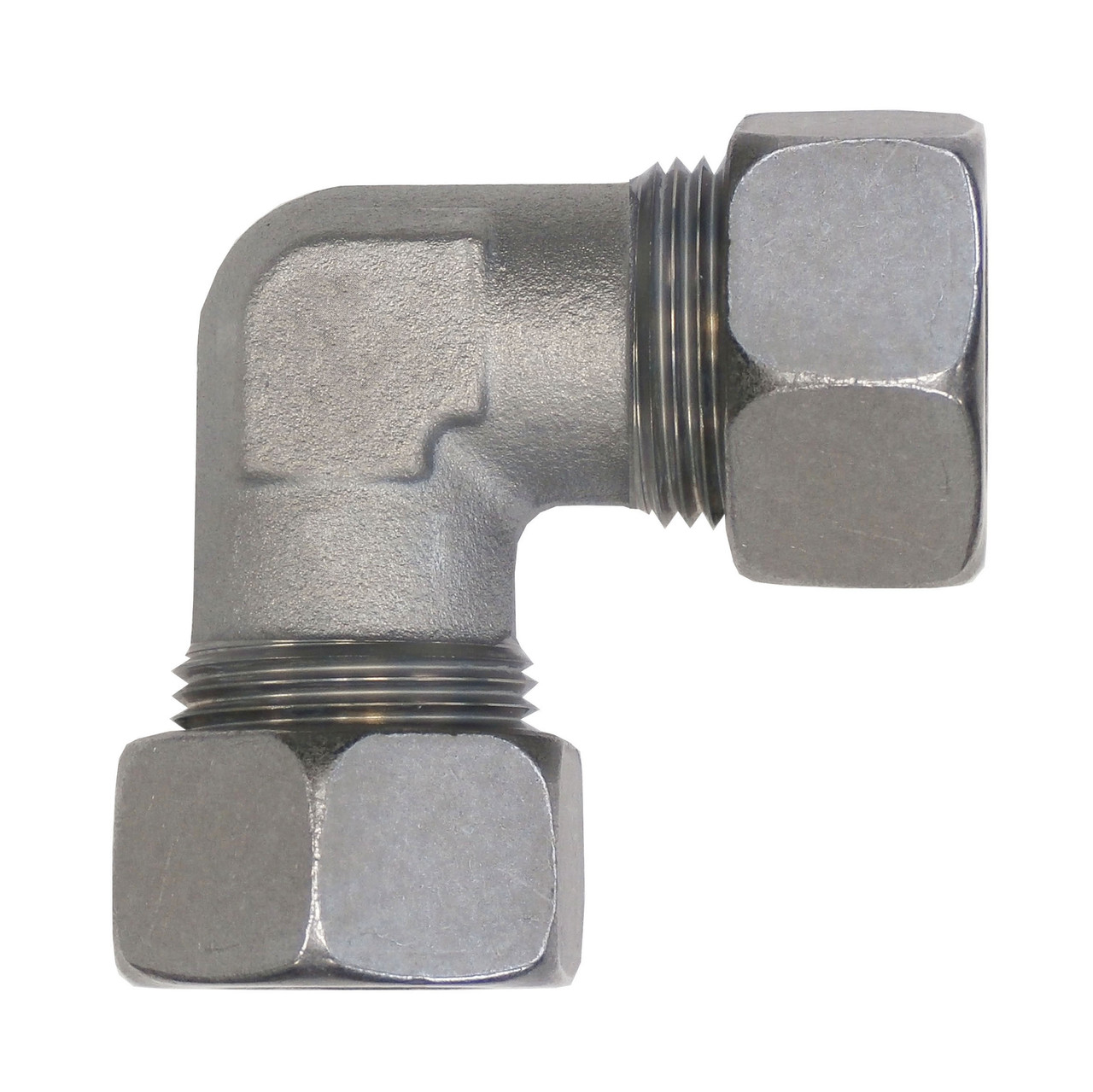

Technical Series Configuration	DIN 2353/ISO 8434-1 Flareless Tube x Flareless Tube 90° Union Elbow
Side 1 Connection Type	DIN Tube
Side 2 Connection Type	DIN Tube
Shape	90° Elbow
Product Type	Fittings
