943203 WITH LOCKING HANDLE
Description

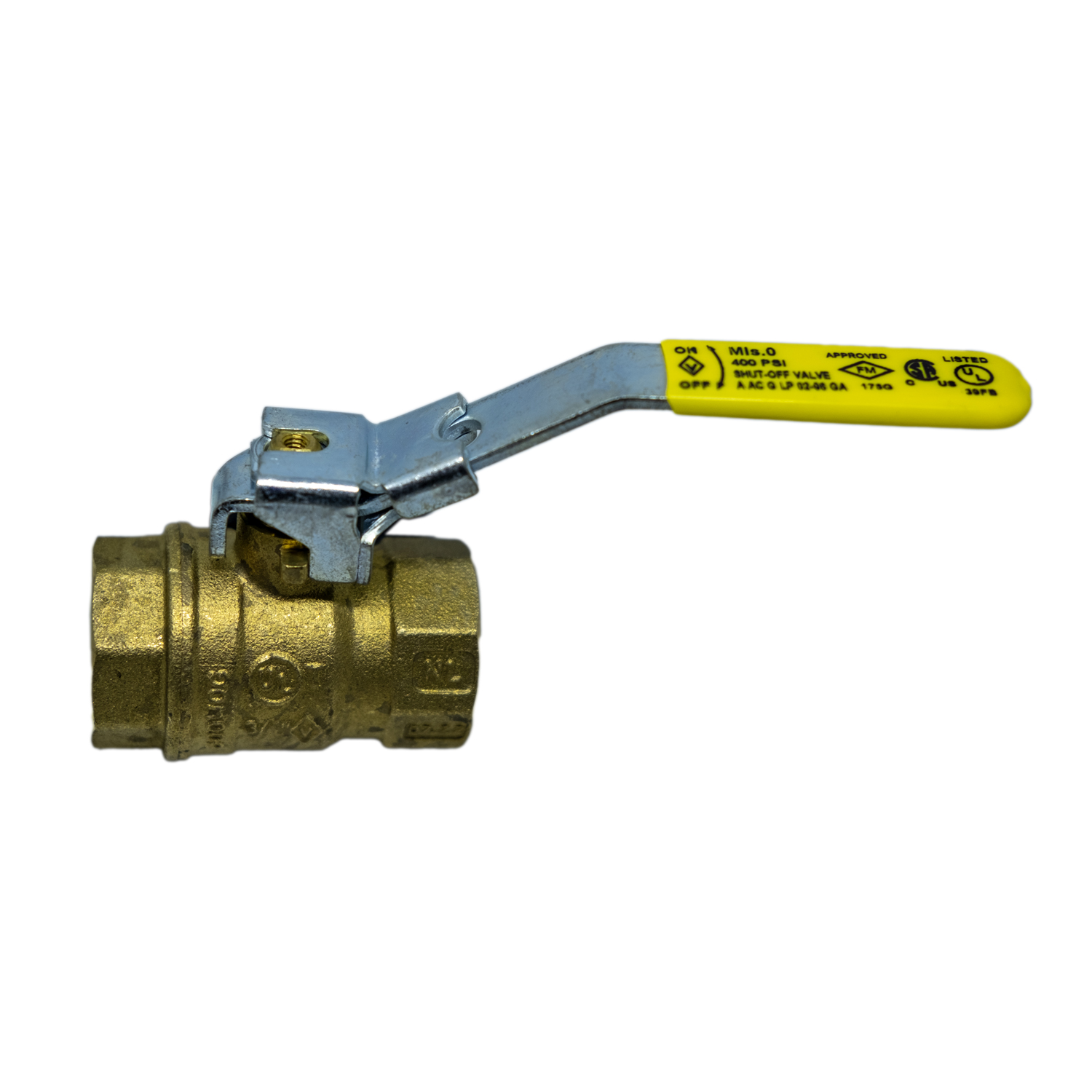

MIDLAND INDUSTRIES 943203L Italian Ball Valve with Locking Handle, 3/4-in Nominal, FPT x FPT, Brass, 600 psi WOG Pressure
Additional information
| Ball Material | Chromium-Plated Brass |
|---|---|
| Body Material | Forged Brass |
| Connection Type | FPT x FPT |
| Handle Material | Steel w/ Vinyl Insulator |
| Inlet to Outlet Length | 2.28 in |
| Lead-Free/Contains Lead | Contains Lead |
| Nominal Size | 3/4 in |
| Operator Type | 1/4-Turn Locking Handle |
| Port Type | Full |
| Pressure Rating | 600 psi WOG |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Stem Material | Brass |
| Temperature Rating | -20 to 248 °F |
| Thread Size | 3/4 – 14 |
| Top to Inlet Center | 1.77 in |
| Trim Material | Steel Nut/NBR 80 O-Ring |
