B233PB
Options
Description

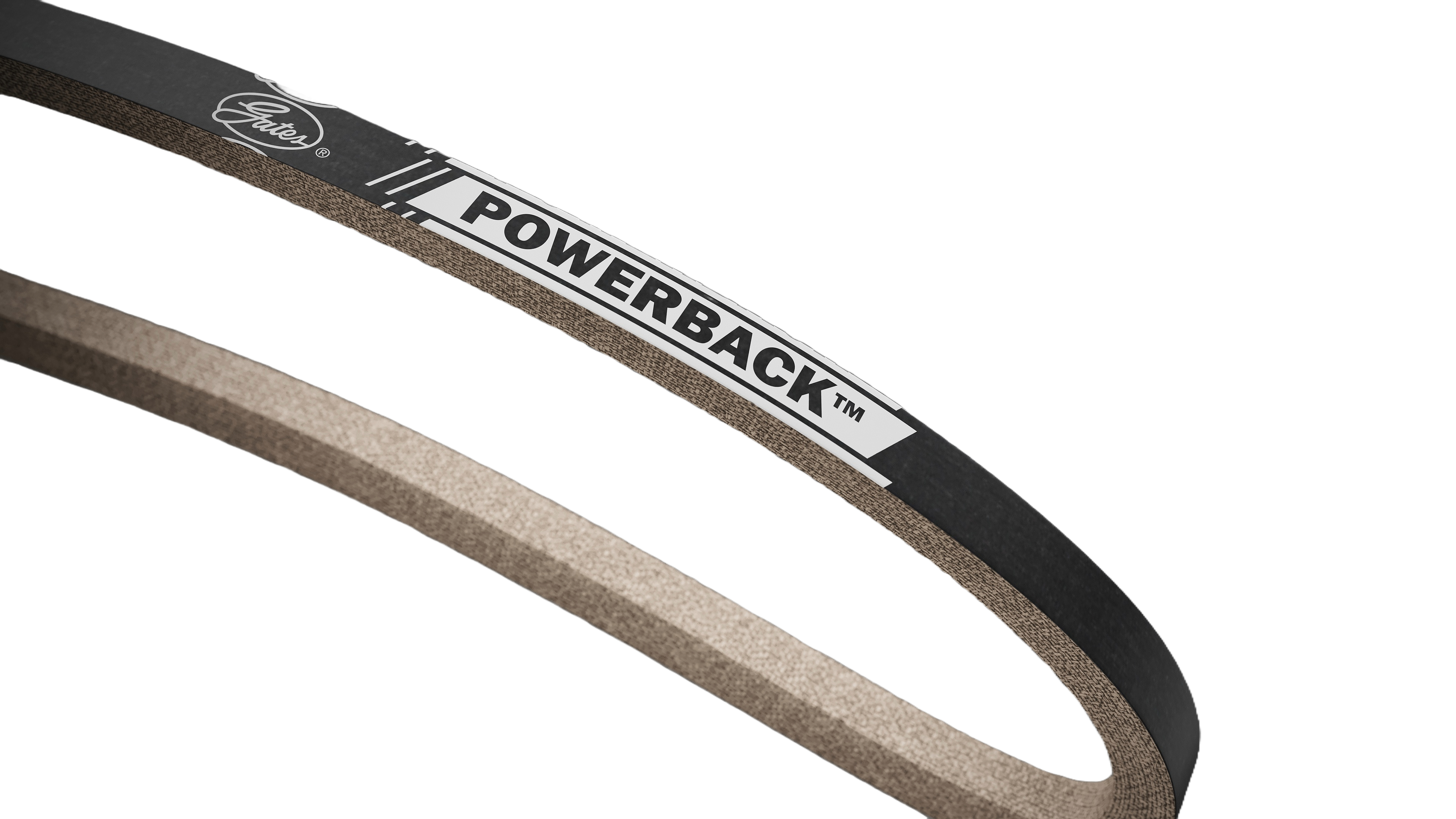

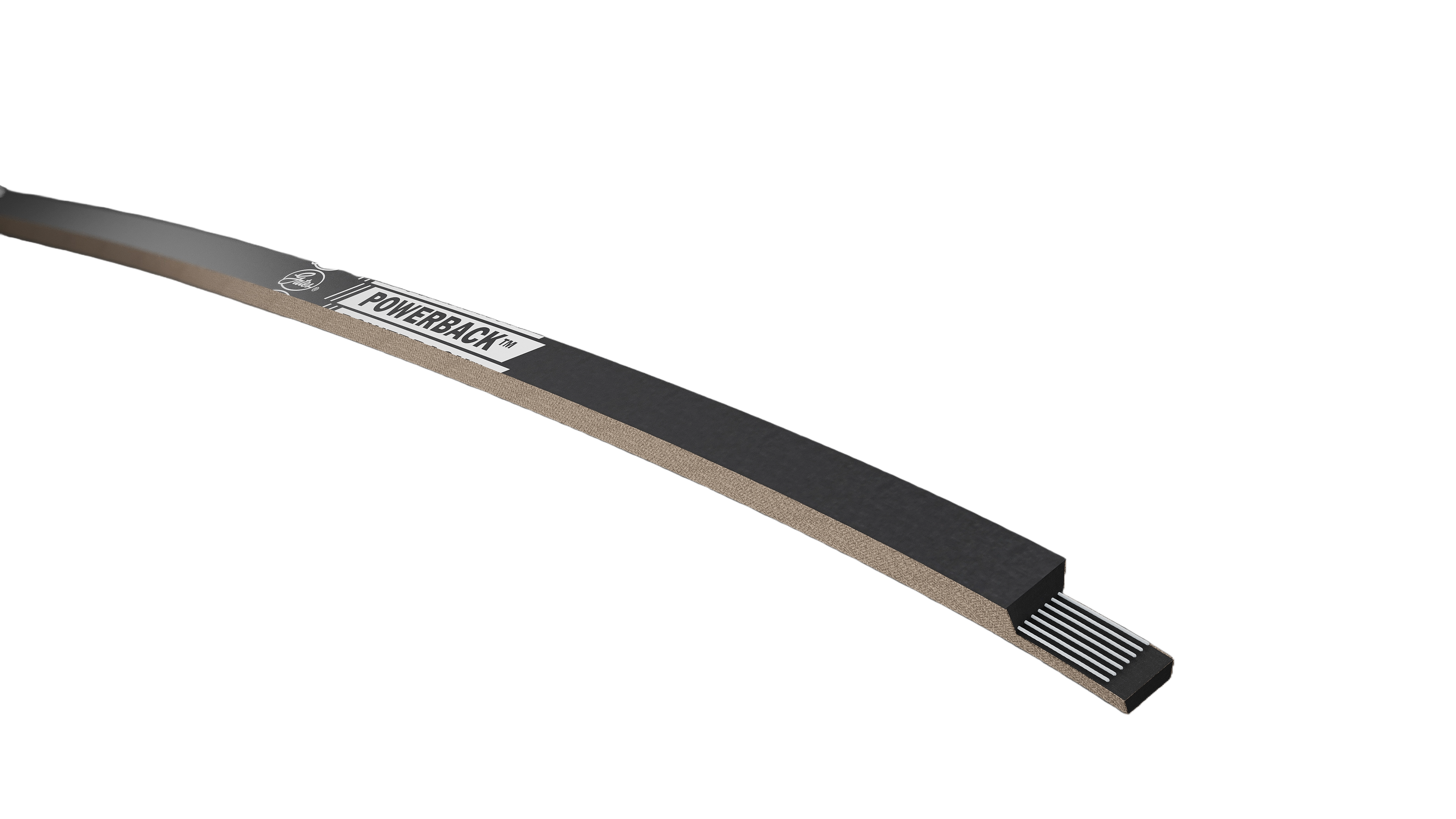

# PowerBack™ Belts
The bareback cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat. This cover reduces debris and makes for a cleaner running system.
Additional information
| Cross Section | B |
|---|---|
| Effective Length (in) | 234 |
| Effective Length (mm) | 5943.6 |
| Notched | false |
| Outside Circumference (in) | 234.2 |
| Outside Circumference (mm) | 5948.68 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.66 |
| Top Width (mm) | 17 |
| Angle. | 40 |
| Thickness (in) | 0.41 |
| Thickness (mm) | 10 |
| Markets/Applications | Ideal for roll-to-roll drives in conveyor applications. |
| Color | Brown |
| Construction | Banded |
| Material | SBR |
| Notes | -30°F to +140°F (-34°C to +60°C) |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Belt Inside and Belt Back Side is Smooth |
| Customer Pack | 15 – 30 |
| Weight (lbs.) | 1.35 – 2.7 |
| Section | B |
