A27
You must be logged in.
Options
Description

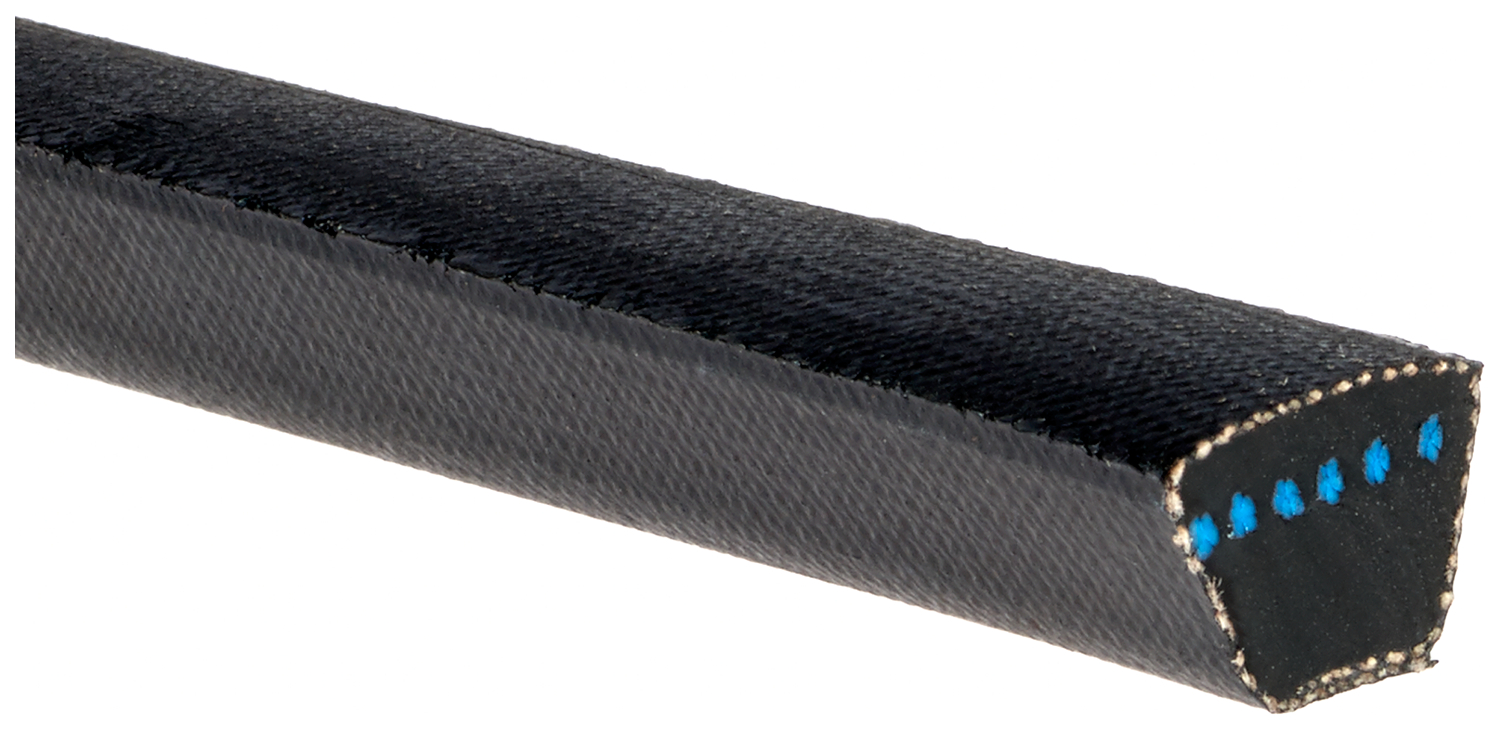

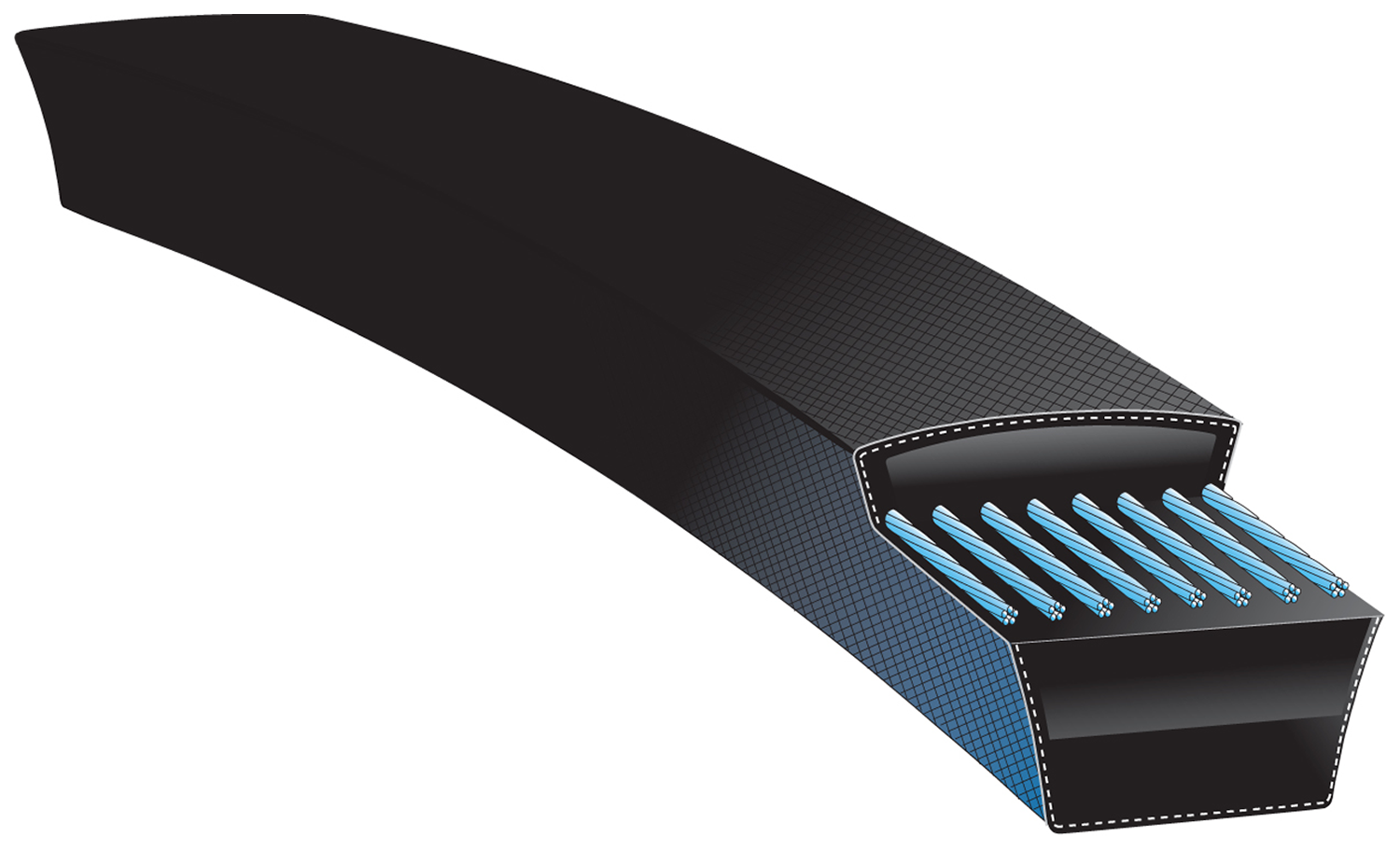

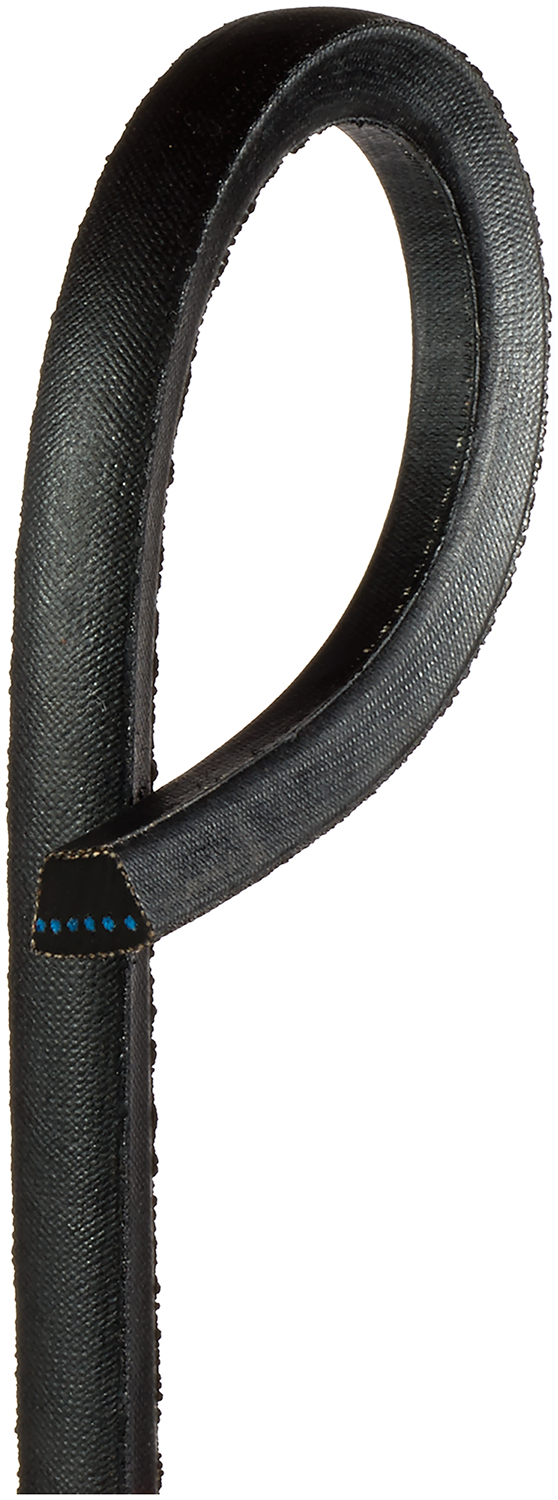

# Hi-Power™ II Belts

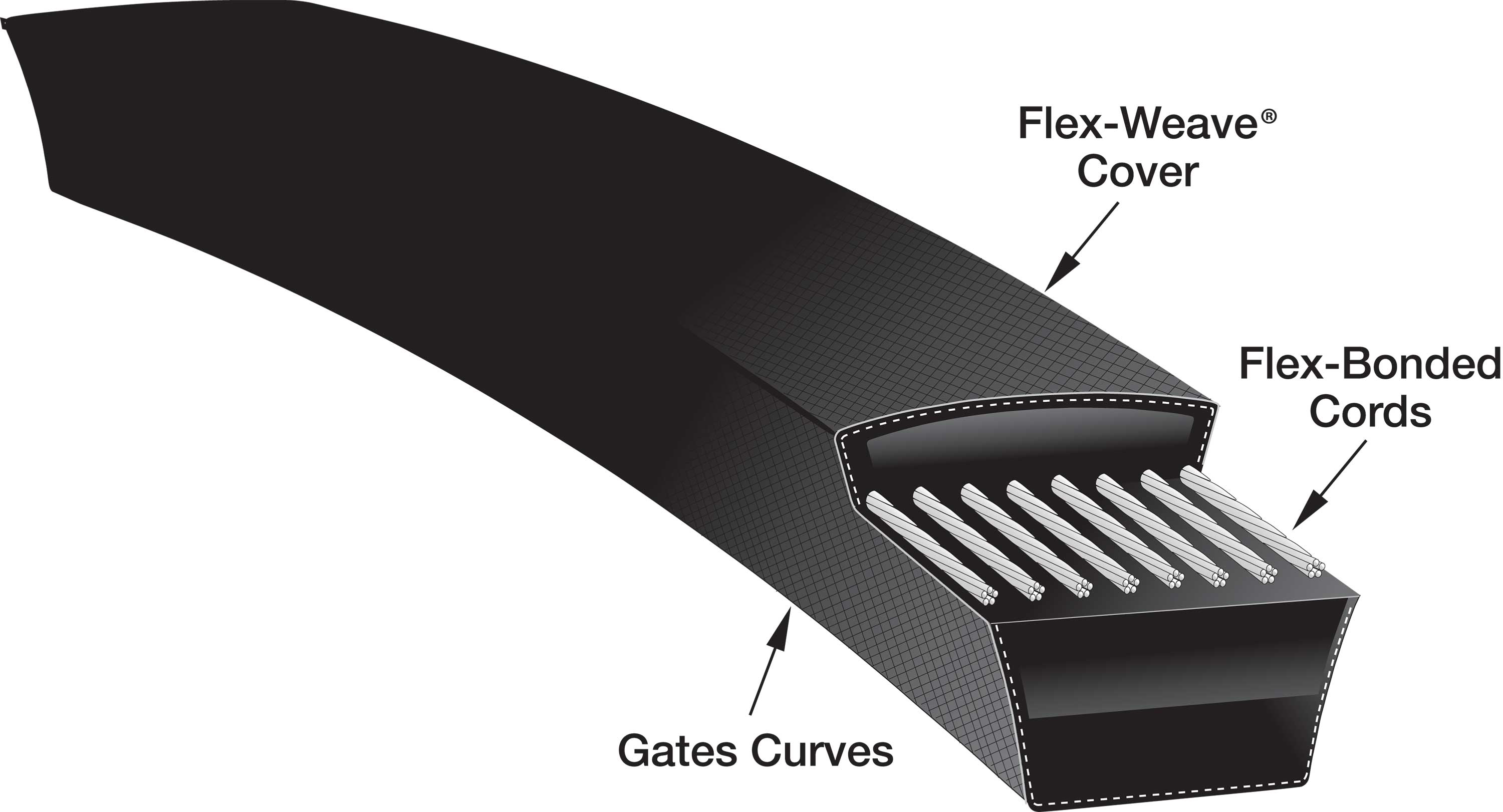

Arched top, concave sidewalls and rounded corners provide uniform tensile loading and uniform pulley sidewall contact for excellent belt service life and reduced pulley wear.
Additional information

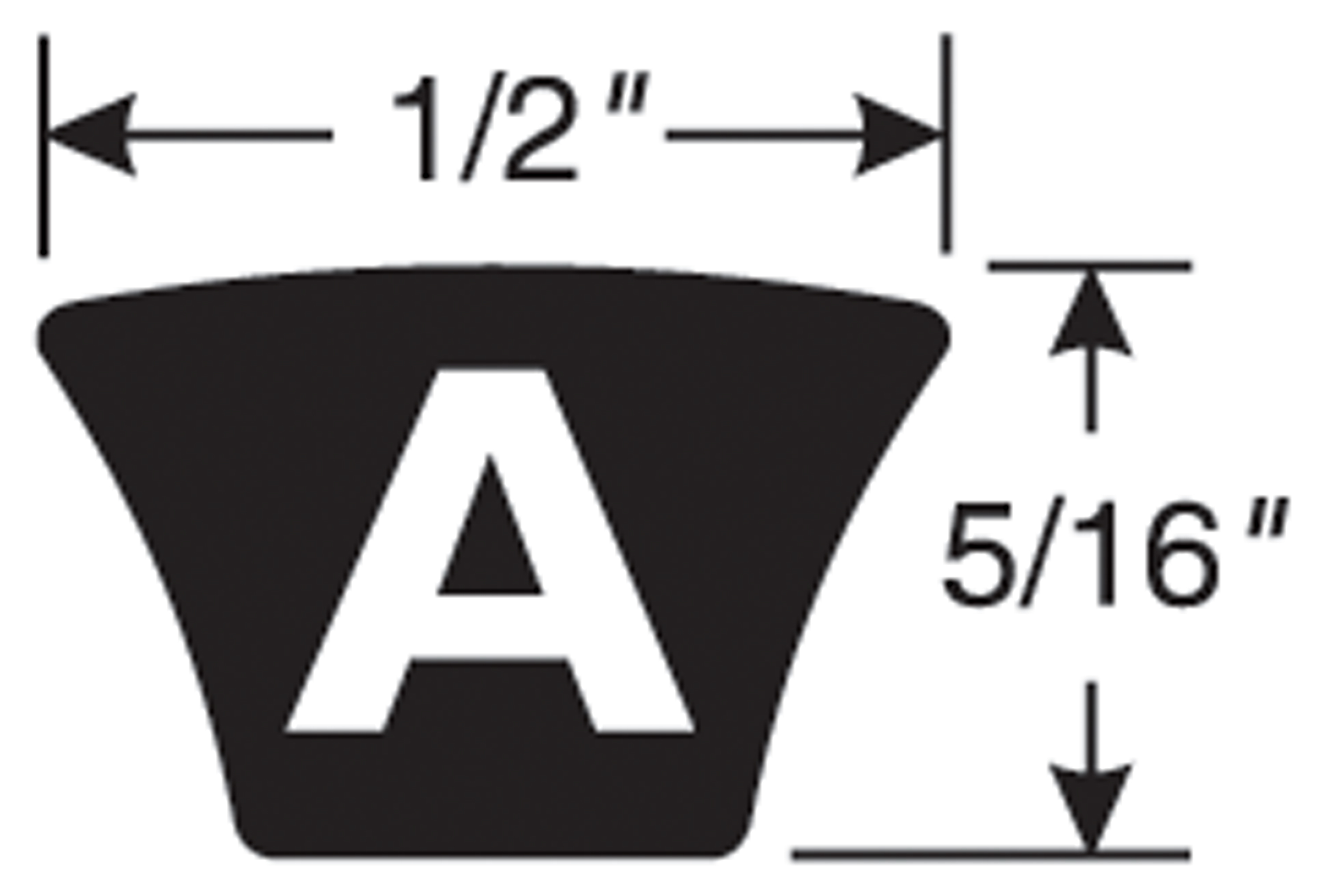

| Cross Section | A |
|---|---|
| Inside Circumference (in) | 27 |
| Inside Circumference (mm) | 686 |
| Effective Length (in) | 28.96 |
| Effective Length (mm) | 736 |
| Notched | false |
| Outside Circumference (in) | 29 |
| Outside Circumference (mm) | 737 |
| Number of Ribs | 1 |
| Strand | 1 |
| Top Width (in) | 0.5 |
| Top Width (mm) | 13 |
| Angle. | 37 |
| Thickness (in) | 0.35 |
| Thickness (mm) | 9 |
| Markets/Applications | Suitable for all industrial applications, including v-flat drives. |
| Color | Black |
| Construction | Banded |
| Material | Belt Material is SBR. Cord Material is Polyester |
| Recommended For | Multi-Duty® Sheaves |
| Belt Notes | Gates Hi-Power® belts are available in A, B, C, D and E cross sections. |
| Customer Pack | 10 |
| Weight (lbs.) | 0.17 |
| Top Width Per Strand (in) | 0.88 |
| Top Width Per Strand (mm) | 22 |
