80153X
Options
Description

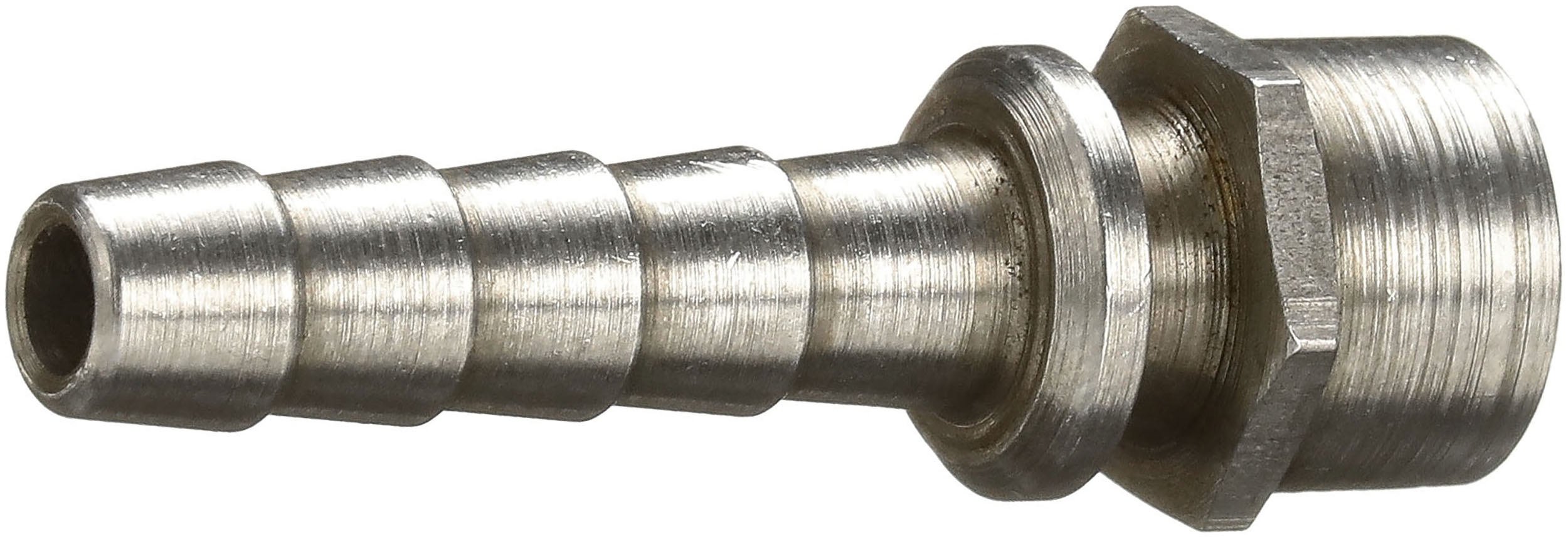

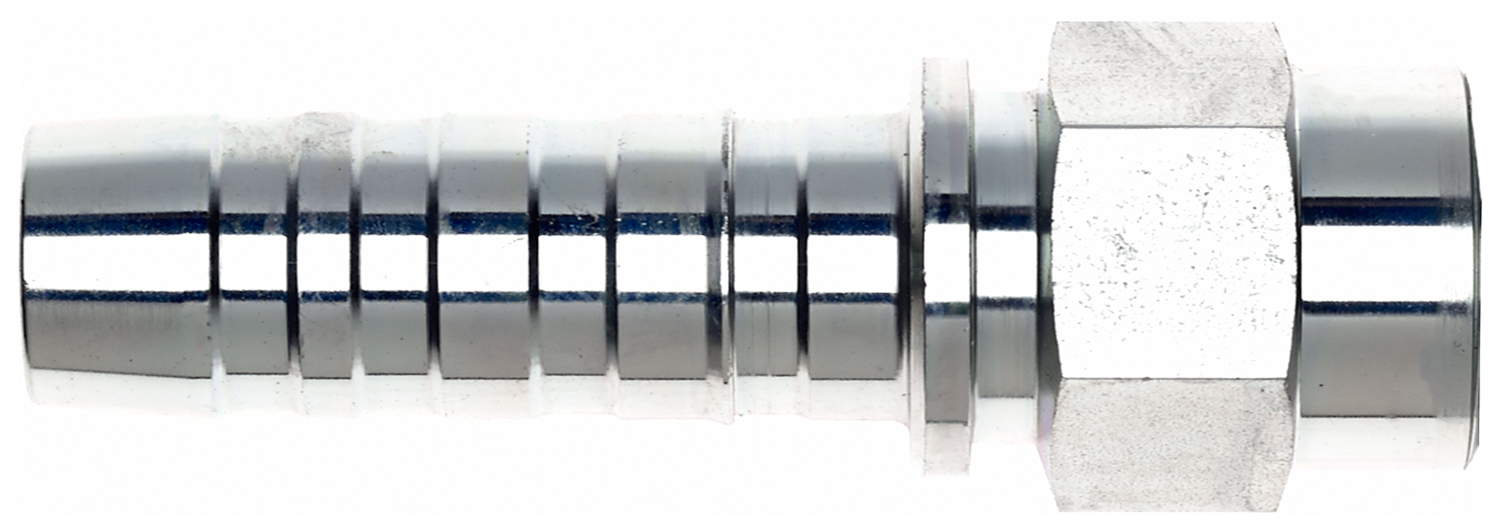

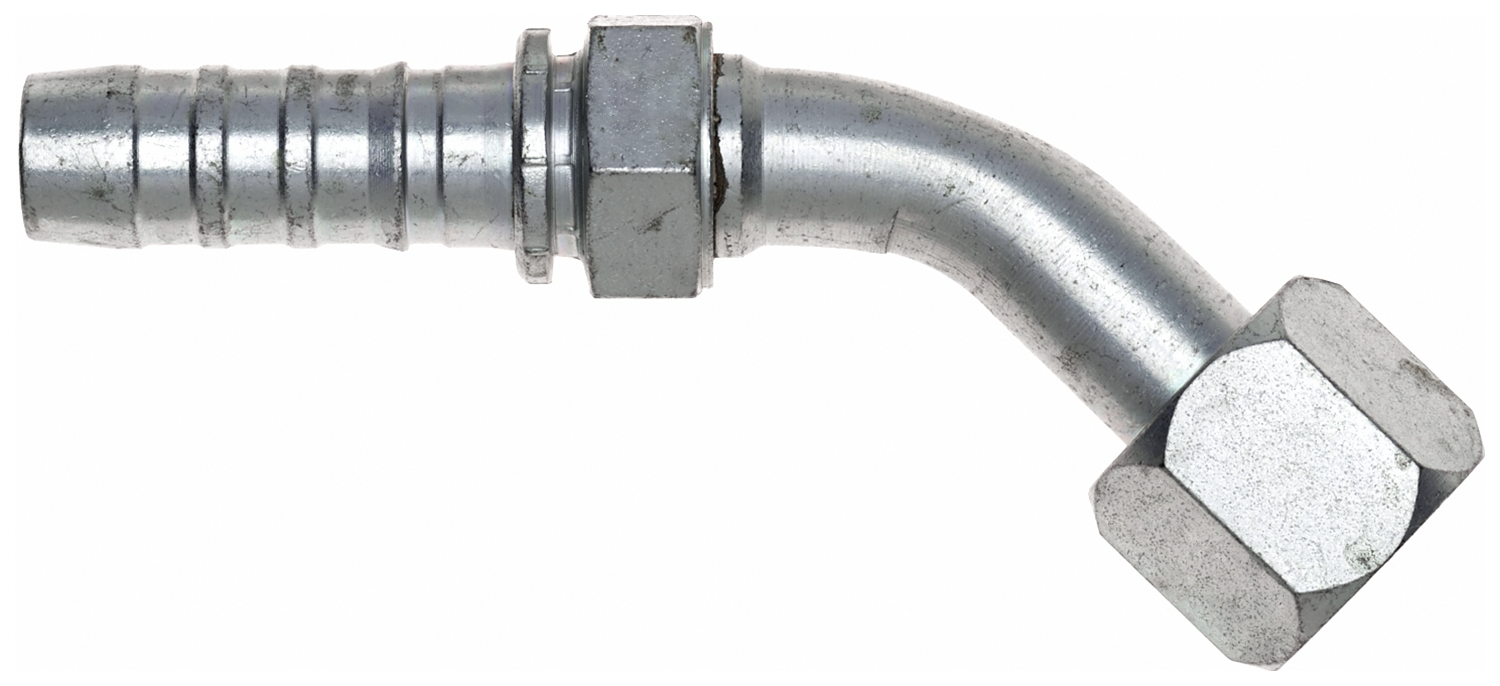

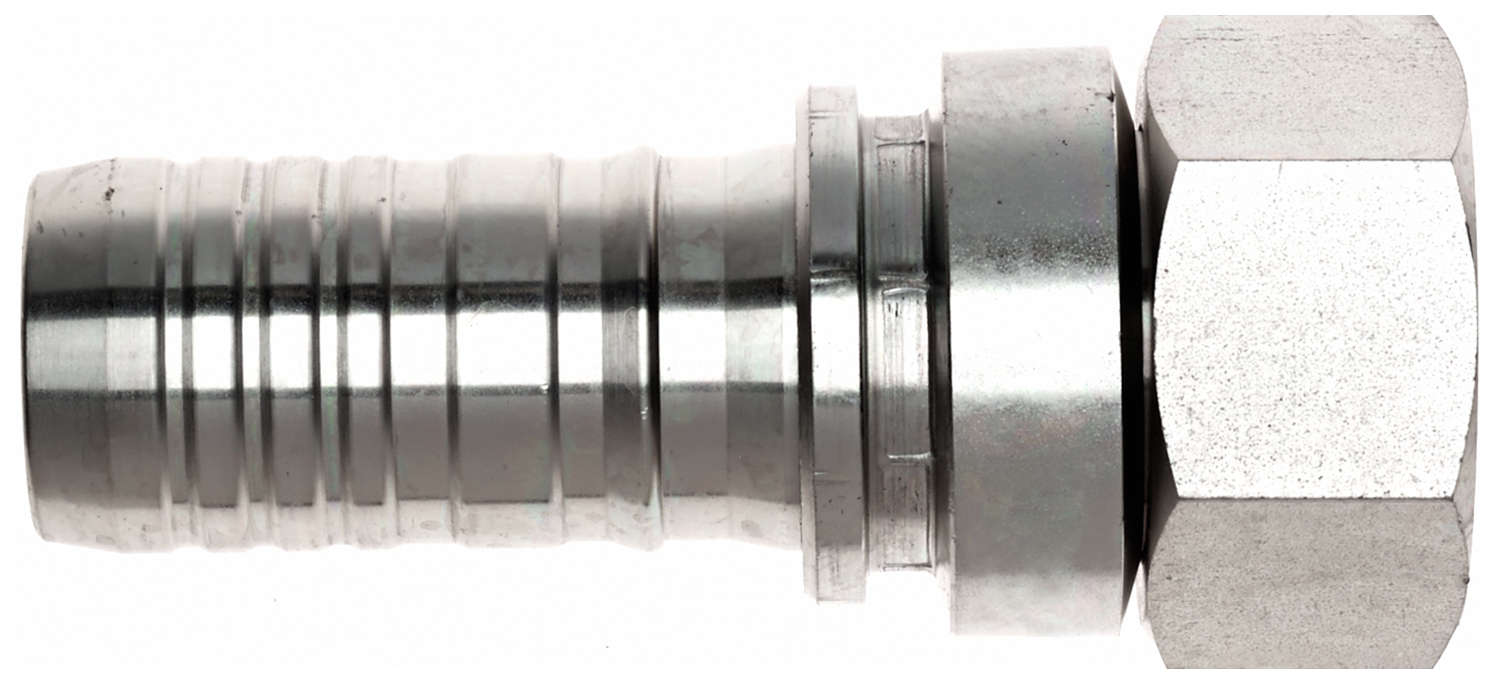

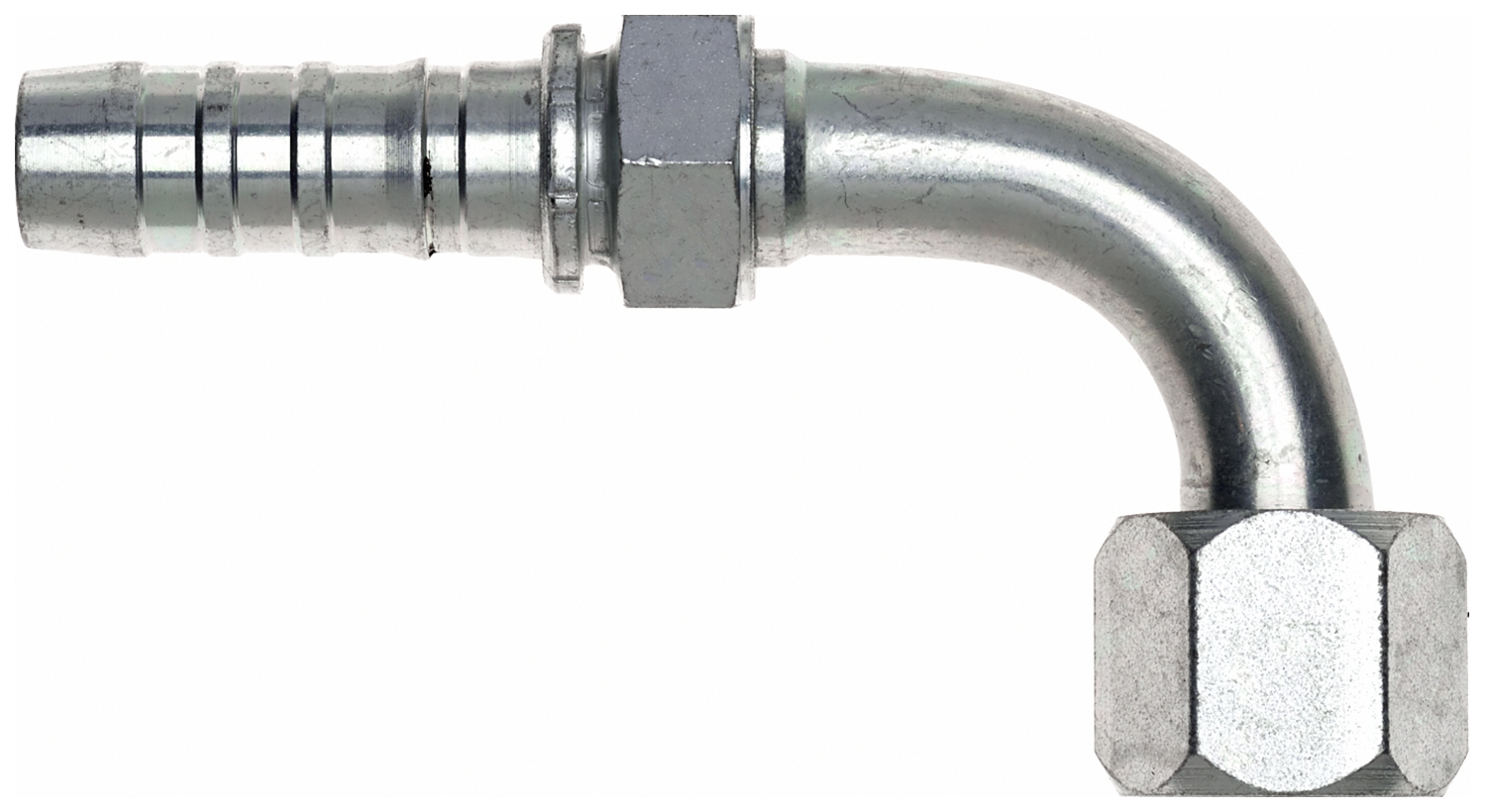

# Power Crimp™ Couplings
Power Crimp stems and ferrules are designed for use with your Gates hoses with a wide variety of couplings available for easy installation.
– Designed to perform with high and medium pressure hose.
– Sizes 3/16 in. through 2 in. I.D.
– Zinc plated carbon steel.
Additional information
| H1 Stem Hex (in) | 0.5 – 2.5 |
|---|---|
| H1 Stem Hex (mm) | 12.7 – 63.5 |
| H2 Nut Hex (in) | 0.375 – 1.5 |
| H2 Nut Hex (mm) | 9.53 – 38.1 |
| C Cutoff (in) | 1.85 |
| C Cutoff (mm) | 46.99 |
| L Length (in) | 3.543 |
| L Length (mm) | 90 |
| T Drop (in) | 0.315 – 4.331 |
| Angle. | 22.5 – 90 |
| A1 Outside Diameter (in) | 0.24 – 3.25 |
| A1 Outside Diameter (mm) | 6 – 82.6 |
| Hose Inside Diameter (in) | 0.752 |
| Hose Inside Diameter (mm) | 19.1 |
| Inside Diameter (in) | 0.752 |
| Inside Diameter (mm) | 19.1 |
| L (in) | 1 – 6.22 |
| Outside Diameter (in) | 0.24 – 3.25 |
| Outside Diameter (mm) | 6 – 82.6 |
| Material | Steel |
| Customer Pack | 125 |
| Weight (lbs.) | 0.39 |
| B Tube Length (in) | 0.25 – 0.47 |
| B Tube Length (mm) | 6.4 – 11.9 |
| C (in) | 0.56 – 2.69 |
| T1 Thread (in) | 1/8-27, 7/16-20, 1/4-18, M12x1.5 |
| A1 Tube Outside Diameter (mm) | 6 |
