10ABC-10ABC-8MP / G32134-1008
Options
Description

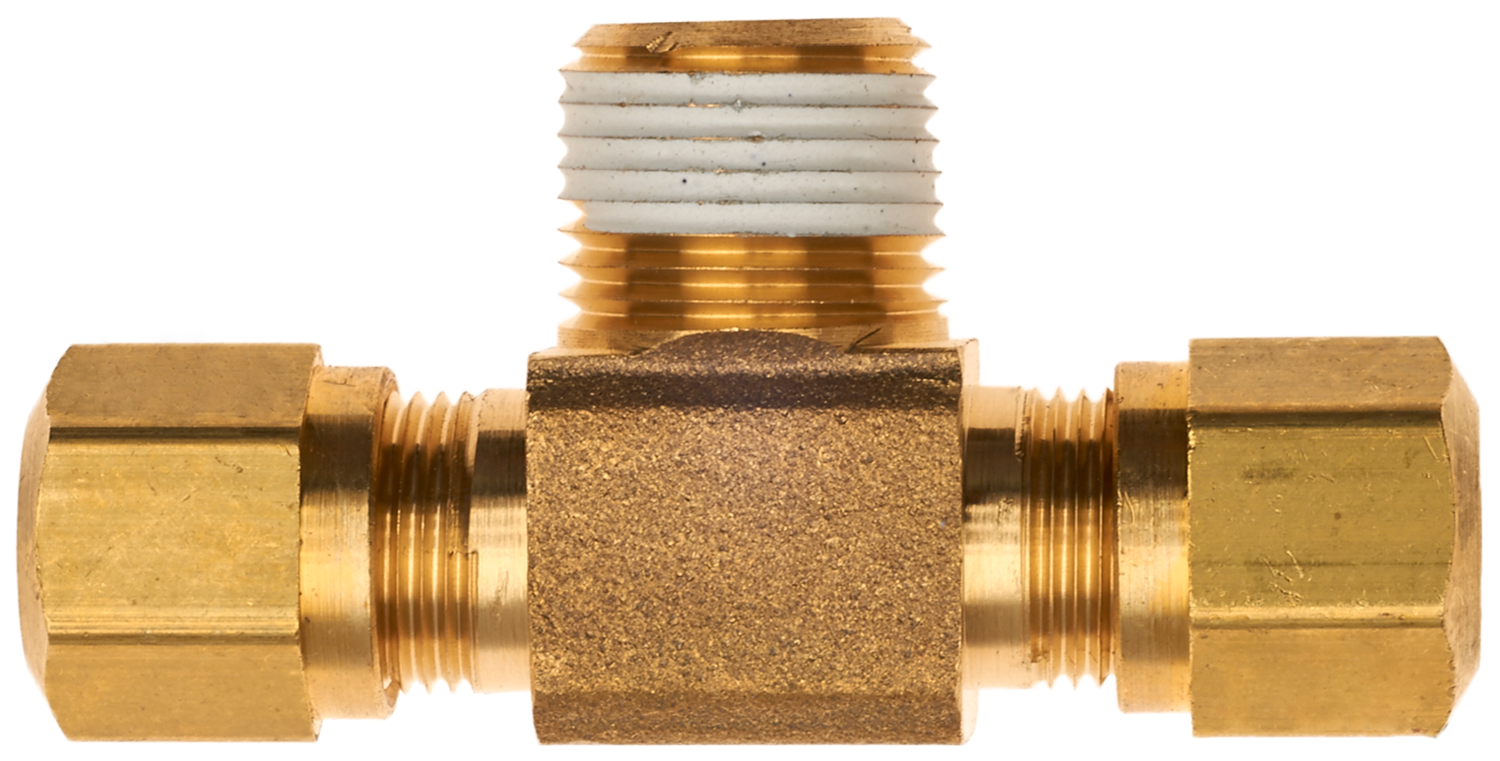

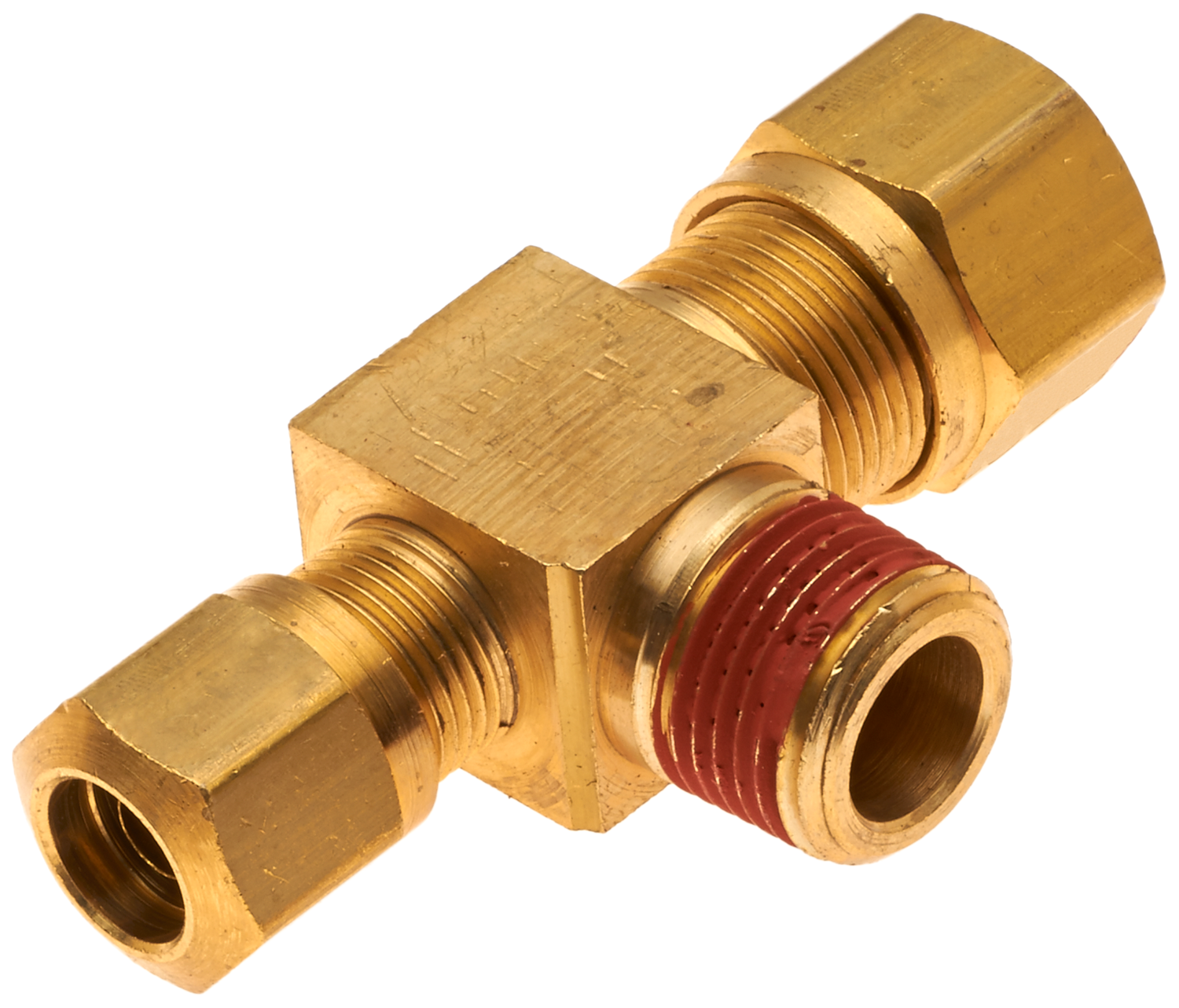

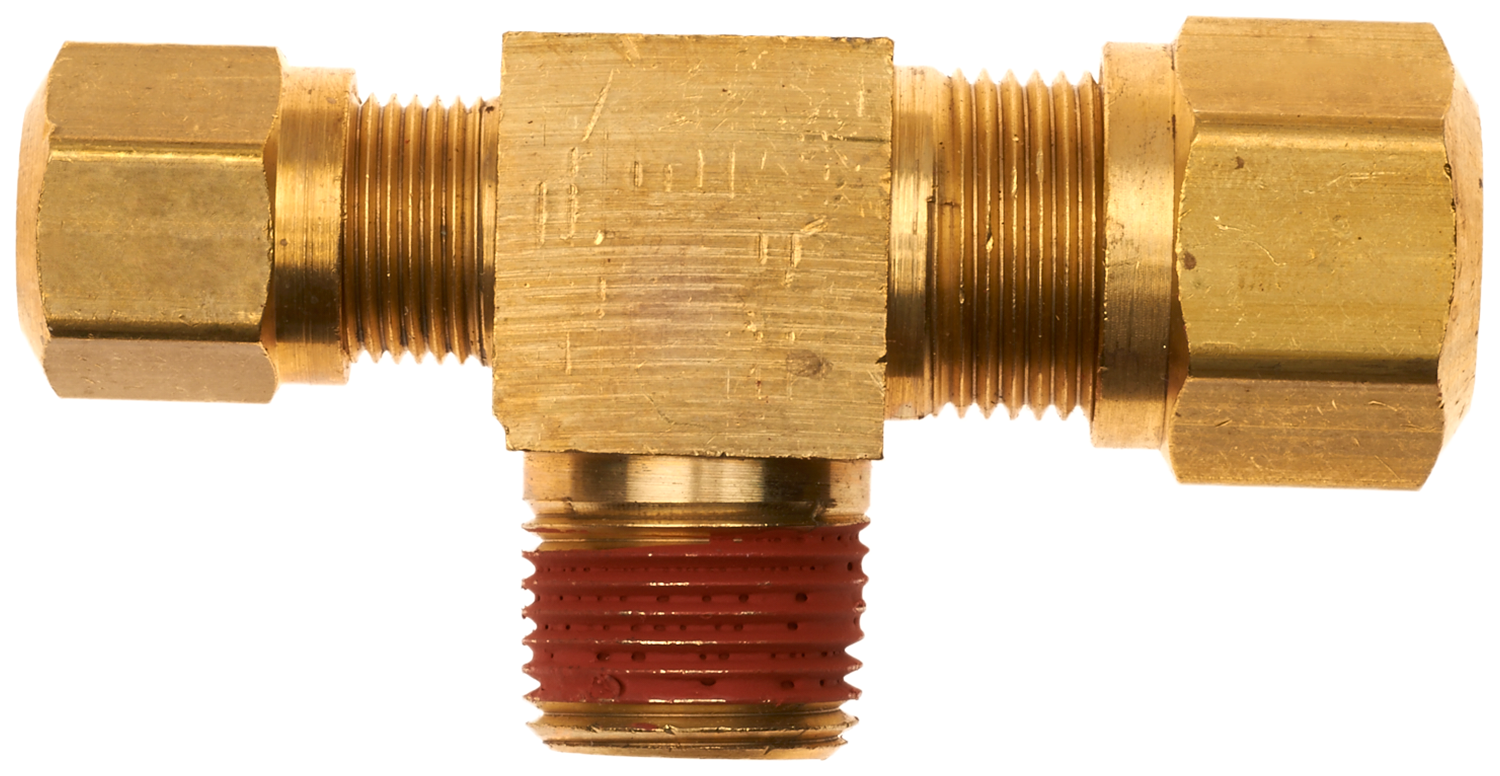

# Air Brake Compression Branch Tee to Male Pipe
Recommended for use in air brake systems – compressed air for suspension, steering, engine transmission or other onboard vehicle applications. For use as a connector on all air brake systems at locations other than between chassis frame and axle or between towed and towing vehicle. Easy to assemble – field serviceable fitting consists of four component parts.
– Meets DOT FMVSS 571.106, SAE J246, SAE J1131, DIN 74324 and German TUV requirements.
– For use with SAE J844 and DIN 74324 nylon tubing.
– Temperature Range: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C).
Additional information

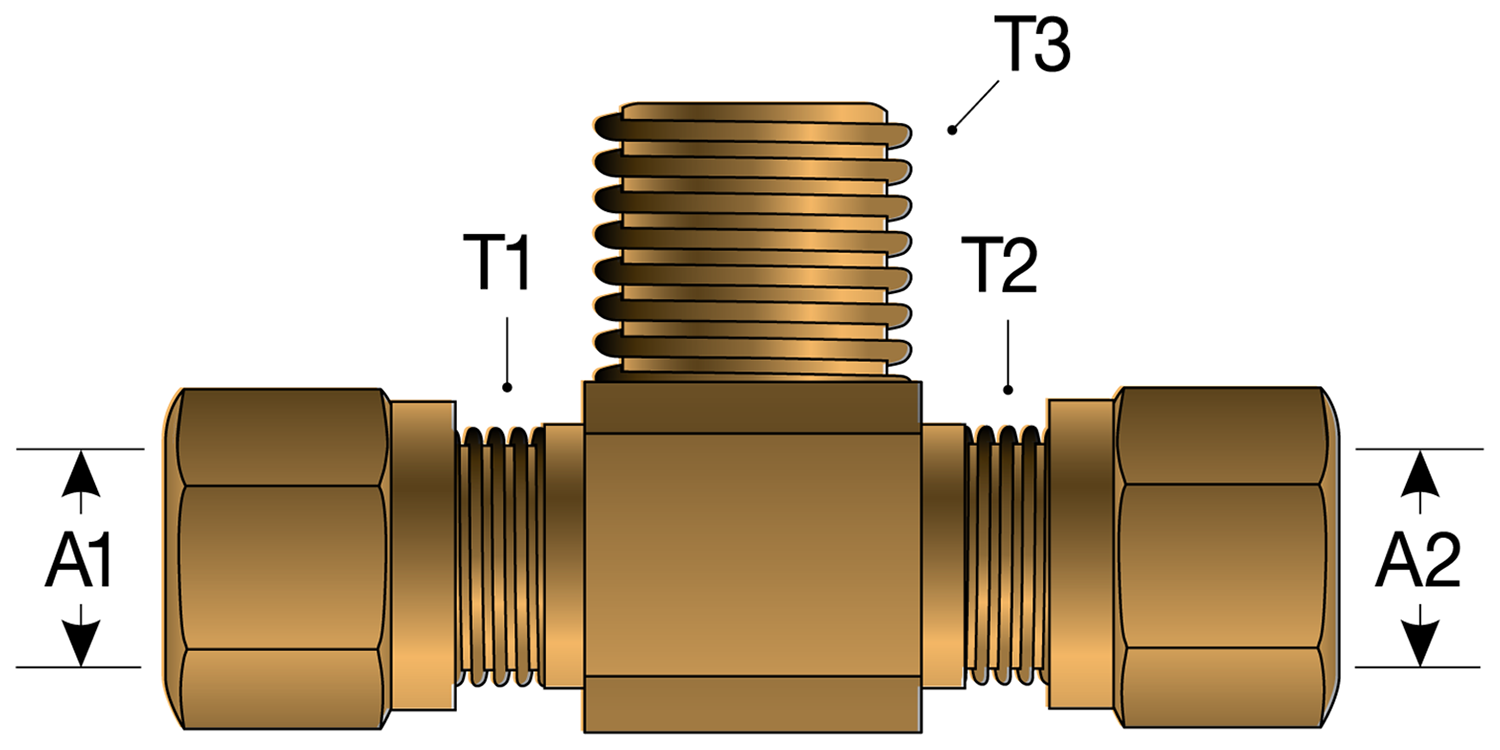

| End 2 Diameter (mm) | 10 |
|---|---|
| A1 Outside Diameter (in) | 0.625 |
| A1 Outside Diameter (mm) | 15.9 |
| A2 Outside Diameter (in) | 15.9 |
| Max. Working Pressure | 150 |
| Max. Working Pressure (Bar) | 10 |
| End 1 Diameter (mm) | 10 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.42 |
