10FSN-S / G60675-0010
Options
Description

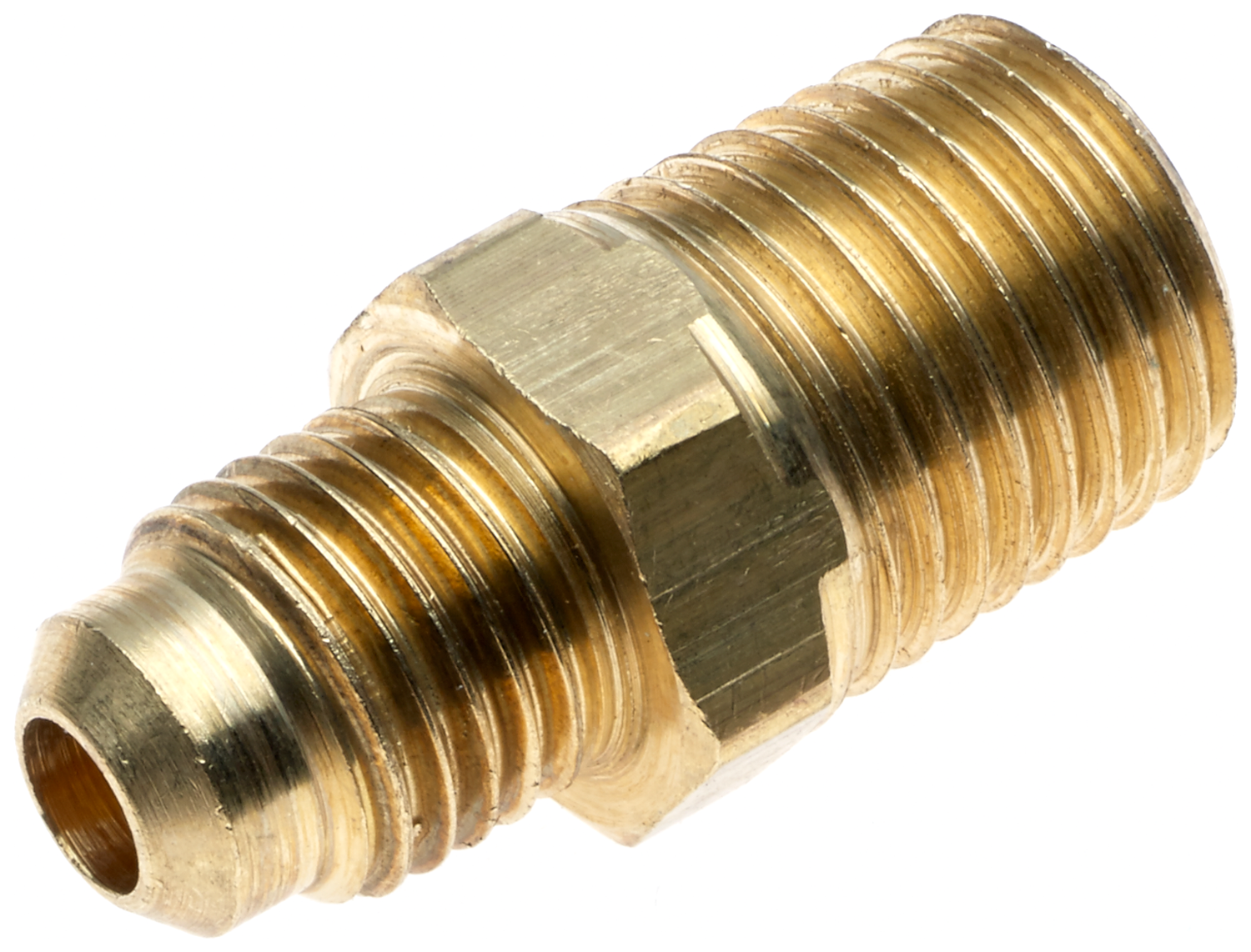

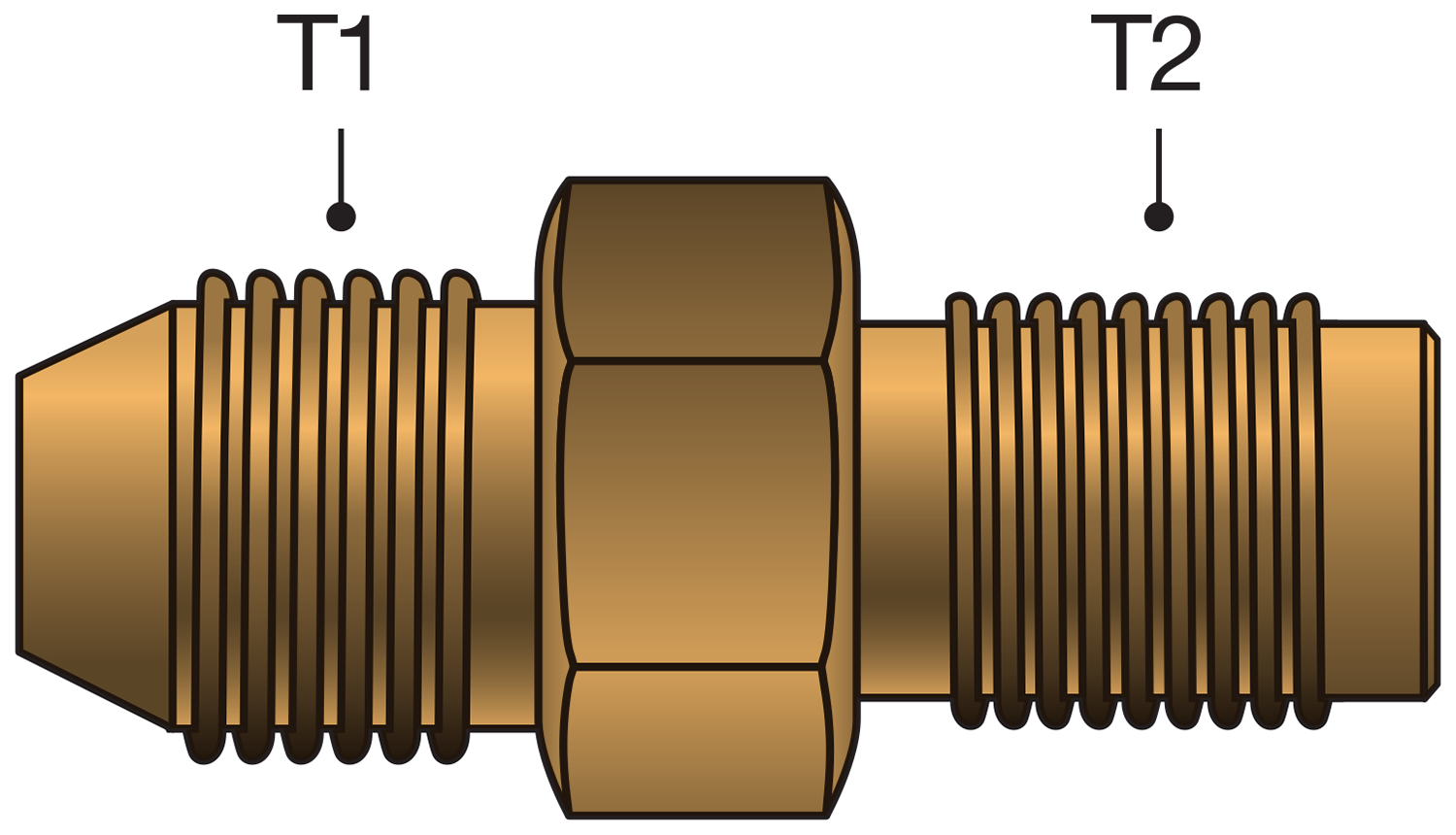

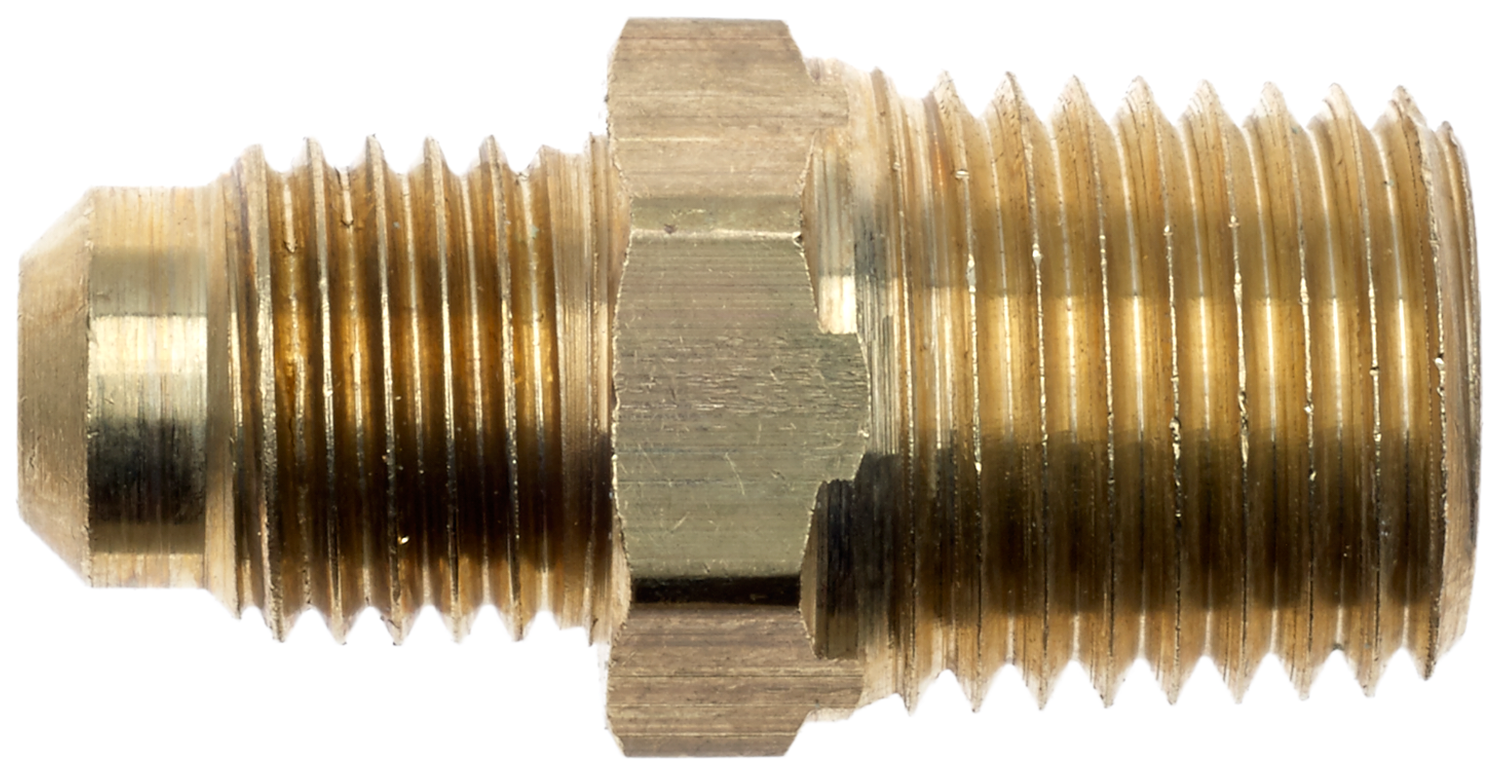

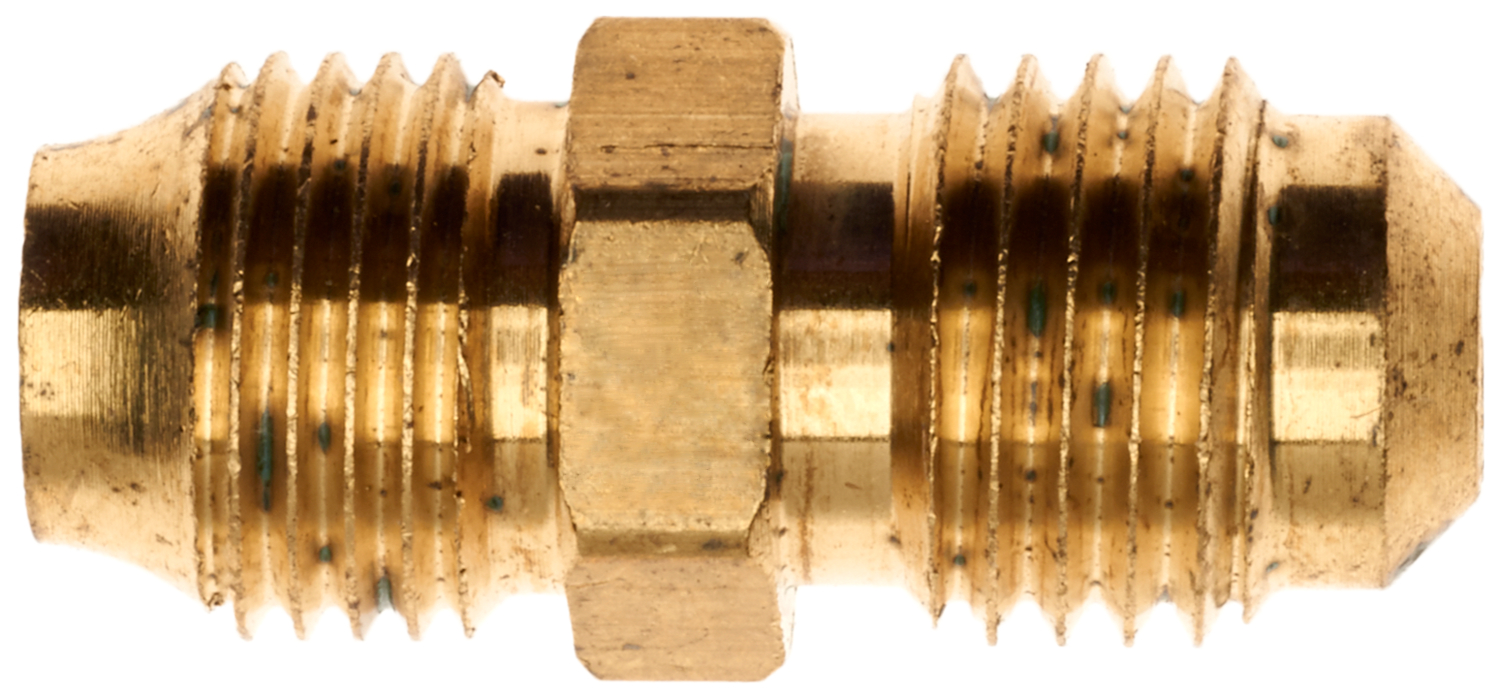

# SAE Flare Adapters-Brass
Recommended for air, fuel, oil, power steering and water applications.
– Meets standard industry specifications. Therefore, common tooling can quickly form the flared end on the tube to ensure a leak tight connection.
– For use with copper, brass, aluminum and steel tubing that can be flared.
– Meets ASME and SAE conformance.
Additional information
| A1 Outside Diameter (in) | 0.625 |
|---|---|
| A1 Outside Diameter (mm) | 15.9 |
| Max. Working Pressure | 2000 |
| Max. Working Pressure (Bar) | 137.9 |
| End 1 Diameter (mm) | 10 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.08 |
| End 2 Diameter (mm) | 2 – 12 |
| A2 Outside Diameter (in) | 3.2 – 19.1 |
| A3 Outside Diameter (in) | 5/8, 1/4, 3/8, 1/2, 3/4, 1/8, +2 more |
| Angle. | 45 – 90 |
| A4 Outside Diameter (in) | 1/4, 5/16, 3/8, 1/2 |
