10ABCT-8MP45 / G30102-1008
Options
Description

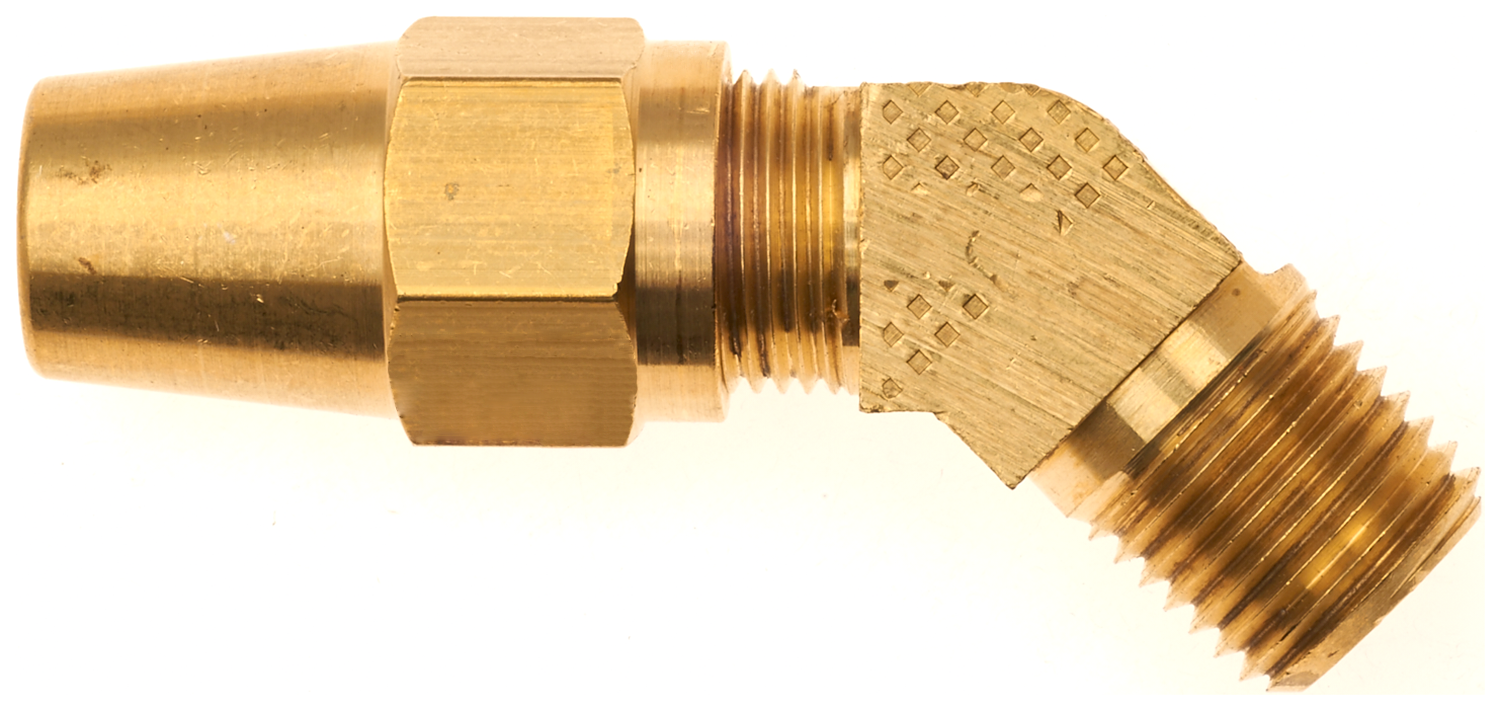

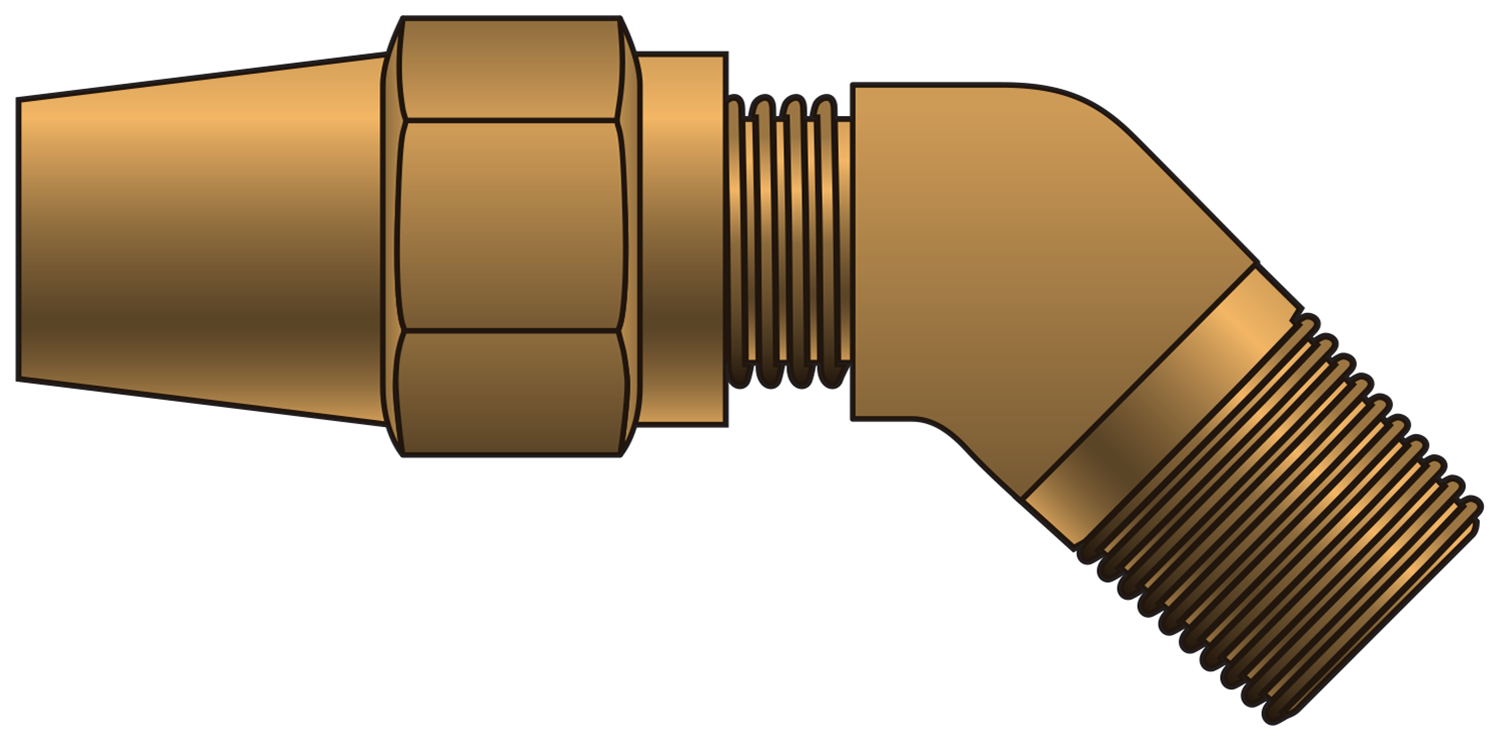

# Air Brake Copper Tubing Compression to Male Pipe – 45°
Recommended for air brake systems – compressed air connectors or suspension, steering, engine transmission or on auxiliary components.
– Used with copper tubing in air brake systems.
– Easy to assemble – no flaring tools required.
– Versatile – can be used with nylon tubing by replacing the long nut and sleeve with an insert, rigid sleeve and nut.
– Meets DOT FMVSS 571.106, SAE J246 and SAE J1131 requirements.
– Temperature Range: -65 Deg. F to +250 Deg. F (-53 Deg. C to +121 Deg. C).
Additional information

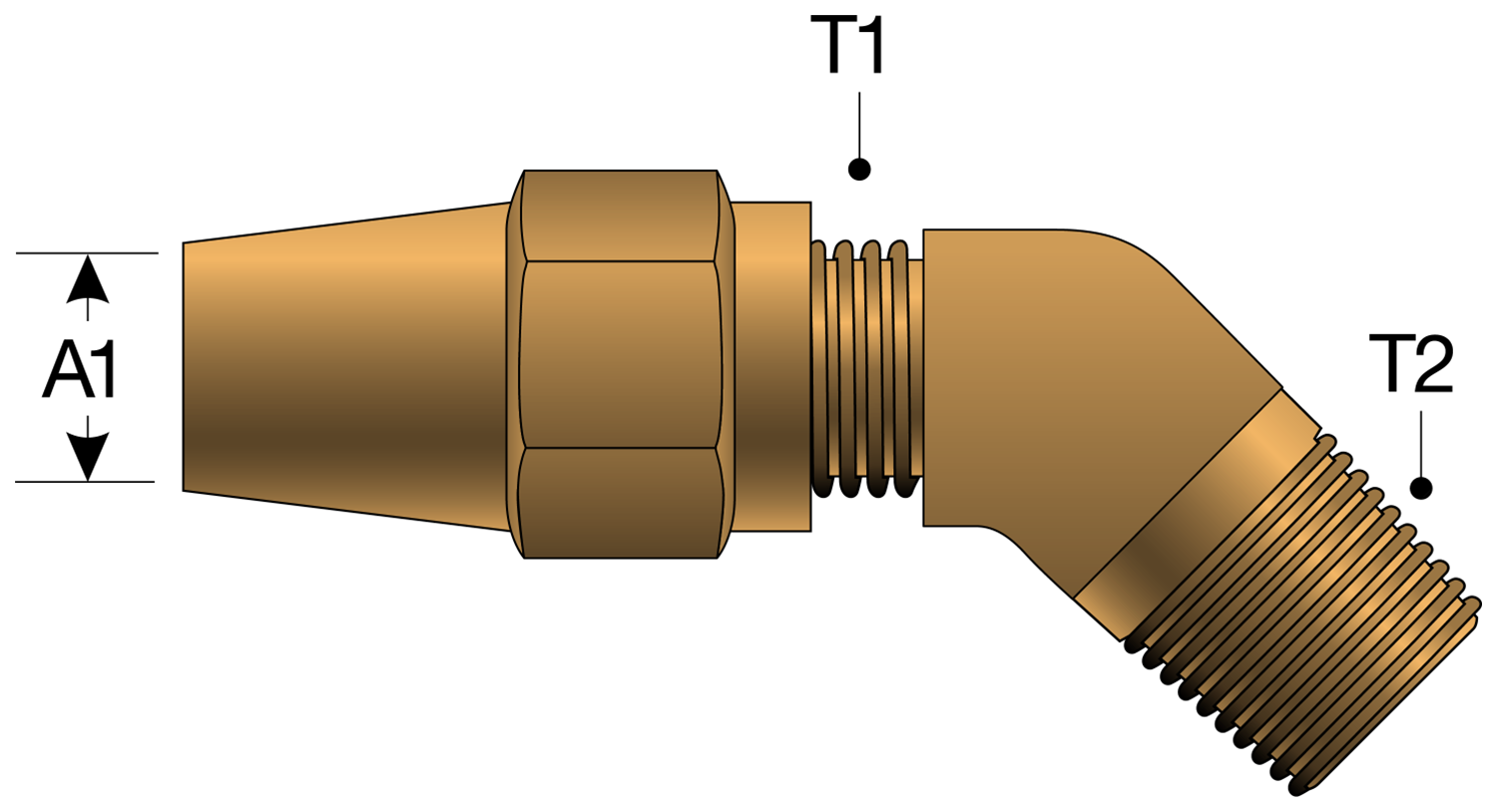

| End 2 Diameter (mm) | 8 |
|---|---|
| A1 Outside Diameter (in) | 0.625 |
| A1 Outside Diameter (mm) | 15.9 |
| Max. Working Pressure | 150 |
| Max. Working Pressure (Bar) | 10 |
| Angle. | 45 |
| End 1 Diameter (mm) | 10 |
| Material | 360 Brass |
| Customer Pack | 1 |
| Weight (lbs.) | 0.3 |
