4C5-FRL XBULK
Options
Description

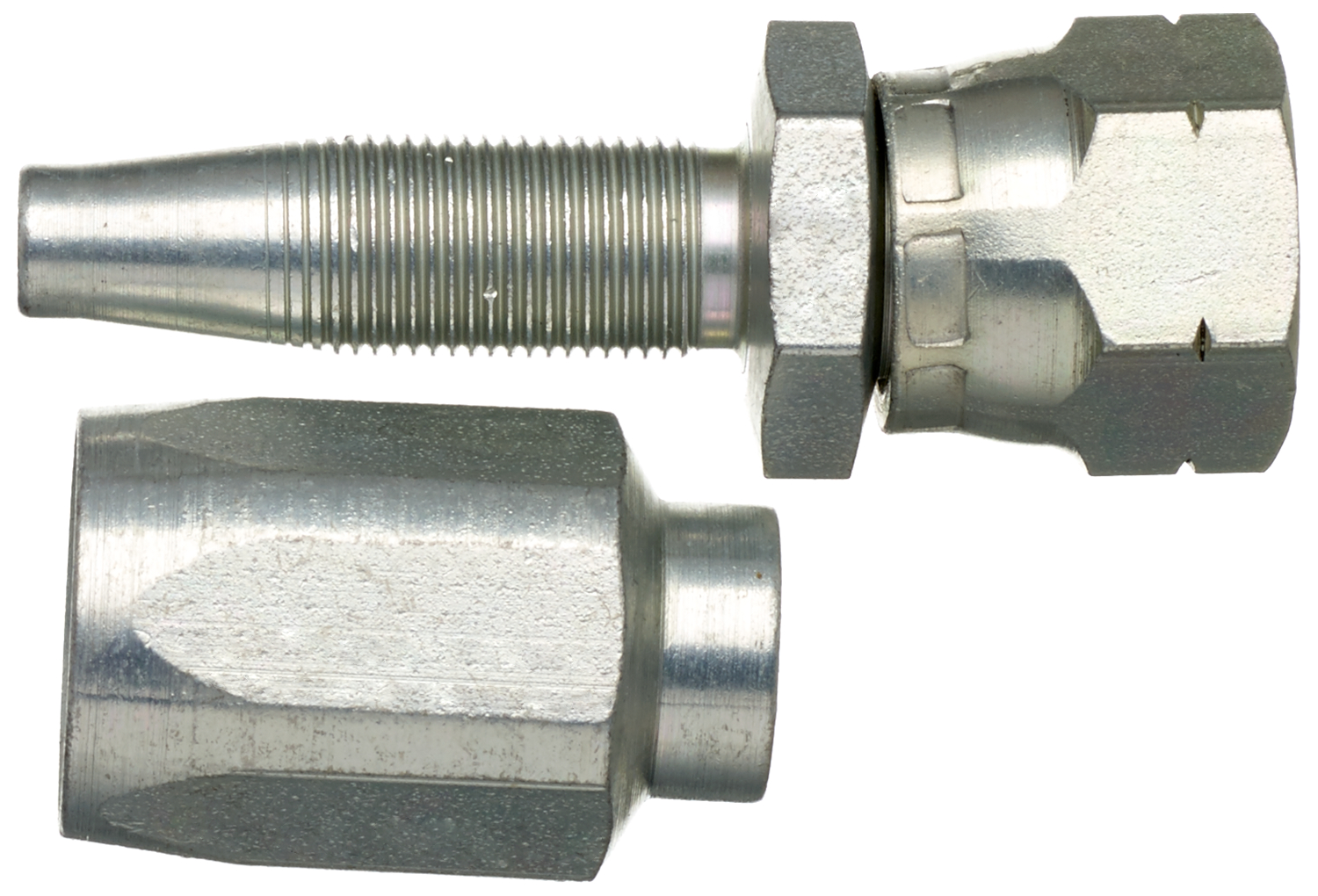

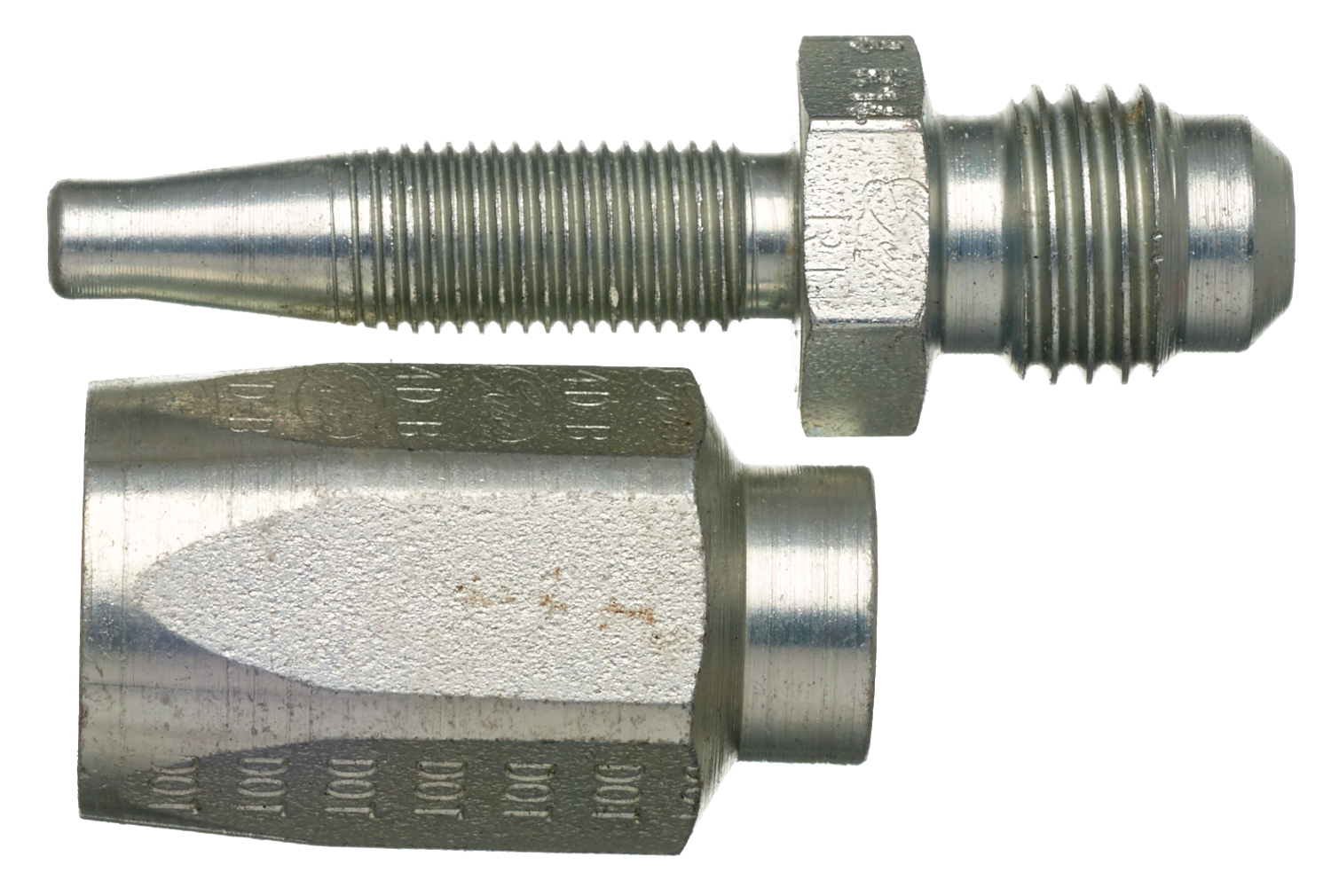

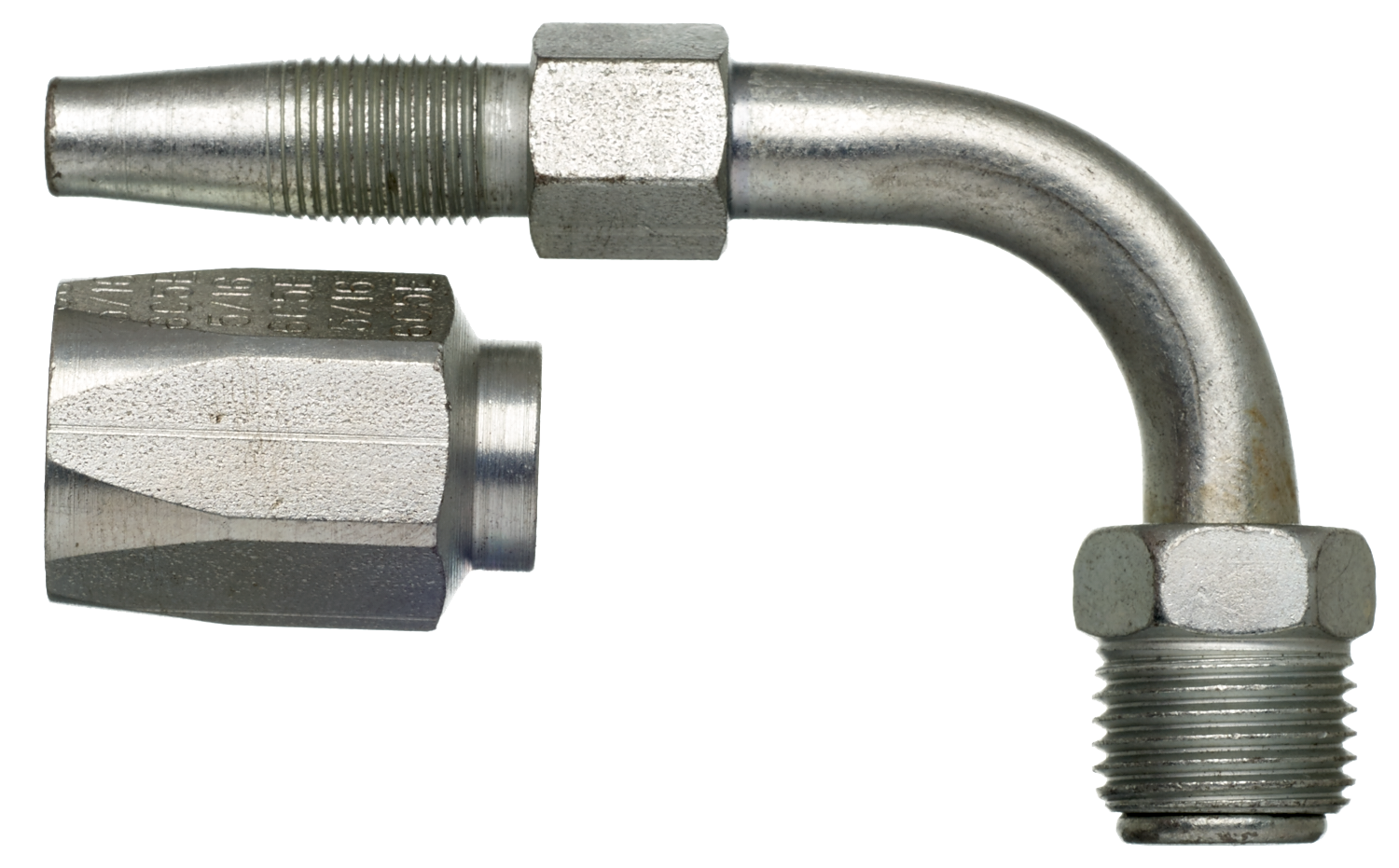

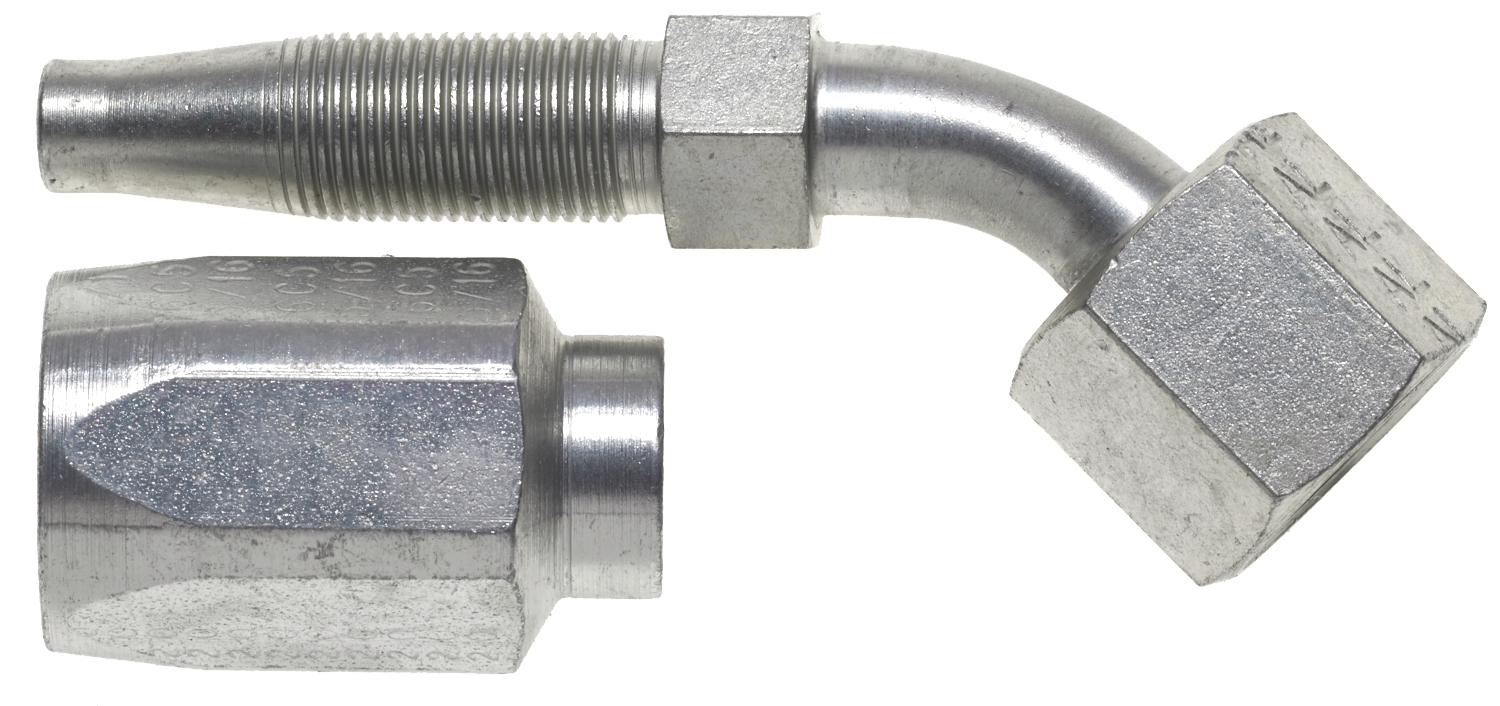

# D.O.T. Type A1 Field Attachable Couplings
Gates D.O.T. Type A2 Field Attachable couplings work with C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.
– Designed to perform with Gates C5 hose.
– Zinc-plated carbon steel.
– Meets DOT FMVSS 106-74 Type AII.
Additional information
| H1 Stem Hex (in) | 0.44 – 2.5 |
|---|---|
| H1 Stem Hex (mm) | 2.6 – 63.5 |
| H2 Nut Hex (in) | 0.44 – 2.88 |
| H2 Nut Hex (mm) | 11.1 – 73.2 |
| T1 Thread (in) | 1-14, 7/8-14, 1 1/16-12, 1 1/16-14, 3/4-14, 3/4-16, +23 more |
| C Cutoff (in) | 0.94 – 3.7 |
| C Cutoff (mm) | 23.9 – 94 |
| L Length (in) | 1.64 – 5.07 |
| L Length (mm) | 82, 78.7, 91.4, 86.6, 70.4, 73.2, +73 more |
| Hose Inside Diameter (in) | 0.19 – 1.81 |
| Hose Inside Diameter (mm) | 4.8 – 46 |
| Inside Diameter (in) | 0.189 – 1.811 |
| Inside Diameter (mm) | 4.8 – 46 |
| C (in) | 0.94 – 3.7 |
| L (in) | 1.64 – 5.07 |
| Material | Steel, Brass |
| Notes | SAE J1453 O-Ring Face Seal., DOT FMVSS 106-74 Type AII. |
| Customer Pack | 1 – 350 |
| Weight (lbs.) | 0.02 – 2.74 |
| T Drop (in) | 0.34 – 4.34 |
| Angle. | 45 – 90 |
