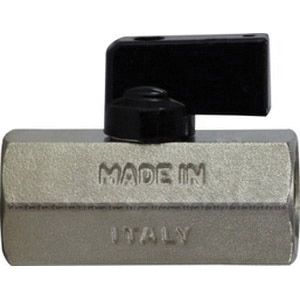

3/8 F X F CHROME MINI BALL VALVE
Description
MIDLAND INDUSTRIES 46923I Miniature Ball Valve, 3/8-in Nominal, FPT x FPT, Chrome-Plated Brass Body, 235 psi Pressure, 32 to 176 deg F
Additional information
| Ball Material | Brass |
|---|---|
| Body Material | Brass |
| Connection Type | FPT x FPT |
| Finish | Chrome Plated |
| Handle Material | Aluminum |
| Inlet to Outlet Length | 1.85 in |
| Lead-Free/Contains Lead | Contains Lead |
| Material Standard | CW517N, CW614N |
| Nominal Size | 3/8 in |
| Operator Type | 1/4-Turn Handle |
| Packing Material | PTFE |
| Pressure Rating | 235 psi |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Stem Material | Brass |
| Temperature Rating | 32 to 176 °F |
| Thread Size | 3/8 – 18 |
| Top to Inlet Center | 1.17 in |
| Trim Material | Steel Stem Nut/NBR O-Ring/Steel Screw |
