Description

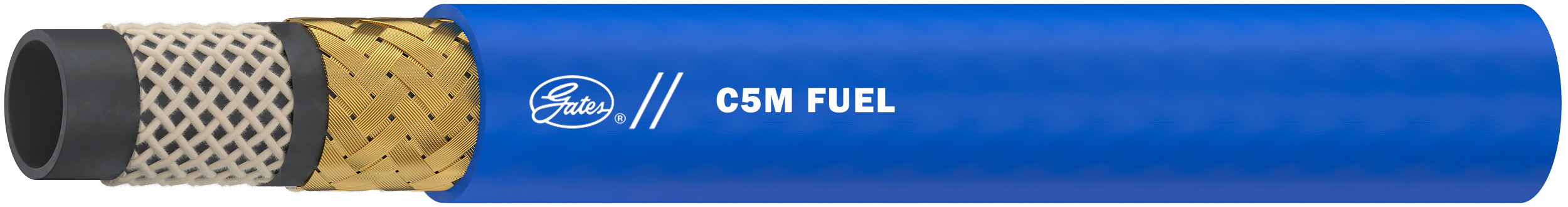

# C5M Hydraulic Hose
Recommended for all commercial and recreational vessel fuel line applications, C5M Marine Fuel Line hose is suitable for marine diesel, gasoline, B100 Biodiesel, gasohol fuels and hot oil applications.
– Recommended For: All commercial and recreational vessel fuel line applications. Suitable for on-shore/off-shore and marine diesel fuel, gasoline, B100 Bio-Diesel, gasohol fuels and hot oil applications up to +212F.
– For use with Brass or Steel C5 and C5X Field Attachable Couplings [G34 Series], GlobalSpiral™ Couplings [G20 Series] and MegaCrimp™ Couplings [G25 Series].
– Nitrile tube with a one-wire braid reinforcement; Nitrile and PVC blue cover.
– Exceeds performance requirements of SAE J30R2 for non-marine applications and meets USCG marine fuel line specifications, SAE J1527 B100 to +52°C (+125°F) Type A Class 1 and SAE J1942-1 Type A and Type B requirements.
– Meets Flame Resistance Acceptance Designation MSHA 2G.
## Features and Benefits
– Recommended Couplings: Brass or Carbon C5 Field Attachable Couplings. Brass or Carbon C5X Field Attachable Couplings (-5, -8, -12).
– Meets USCG marine fuel line specifications, SAE J1527 B100 to +52°C (+125°F) Type A Class 1 and SAE J1942 requirements.
– Exceeds performance requirements of SAE J30R2 for non-marine applications.
– Tube: Nitrile.
– Reinforcement: One wire braid.
– Cover: Nitrile and PVC. Blue.
Additional information
| Dynamic WP (Max.psi) (1) | 500 |
|---|---|
| Vacuum (In. Hg) | 10 |
| Continuous Operating Temperature Range | -4°F to +212°F |
| Minimum Bend Radius (in) | 2.8 |
| Minimum Bend Radius (mm) | 71.1 |
| Min. Burst Pressure (psi) | 2000 |
| Hose Inside Diameter (in). | 0.63 |
| Hose Inside Diameter (mm) | 15.9 |
| Hose Outside Diameter (in) | 1.08 |
| Hose Outside Diameter (mm) | 27.4 |
| Inside Diameter (in) | 0.625 |
| Inside Diameter (mm) | 15.9 |
| Working Pressure (psi) | 500 |
| Length (m) | 15 |
| Outside Diameter (in) | 1.08 |
| Outside Diameter (mm) | 27.4 |
| Use | Fleet |
| Color | Blue |
| Reinforcement | 1-braid, textile |
| Tube | Nitrile – Type C; Black |
| Construction: Cover | Modified Nitrile – Type C2 |
| Standard Industry Specification | SAE J1527 A, SAE J1942, SAE J30R2 |
| Meets These Agency Specifications | ABS – American Bureau of Shipping, MSHA 2G – Mine Safety & Health Admin. USA, SAE – Society of Automotive Engineers, USCG – United States Coast Guard |
| Notes | 840-A1J1527 Type A Class 1. J1942. J30R2. Meets USCG marine fuel line specifications. Meets MSHA 2G. |
| Recommended For | On-shore/off-shore and marine diesel fuel and gasoline applications and hot oil lines up to +212°F. Meets USCG marine fuel line specifications, SAE J1527 B100 to +125°F Type A Class 1 and SAE J1942 requirements. Exceeds performance requirements of SAE J30R2 for non-marine applications. |
| Customer Pack | 1 |
| Weight (lbs.) | 26.84 |
| Packaging | T |
| Standards | Meets requirements of SAE J1942 and SAE J1527, USCG Type A, Class 1, Style R3, SAE J30R2, MSHA, ABS and ISO7 840-A1. |
| Standards: Cover | ARPM (Class C) Limited oil-resistance. |
| Standards: Tube | ARPM (Class A) High oil-resistance. |
| Temperature Range | -4°F to +212°F (-20°C to +100°C) |
| Coupling Recommendation | C5 Field Attachable Couplings [G34 Series]; MegaCrimp® Couplings [G25 Series], C5 Field Attachable Couplings [G34 Series]; GlobalSpiral™ Couplings [G20 Series] |
| Cover | Modified Nitrile – Type C2. Blue |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | 1-braid, textile |
| Construction: Tube | Nitrile – Type C |
