12FD6001
Description

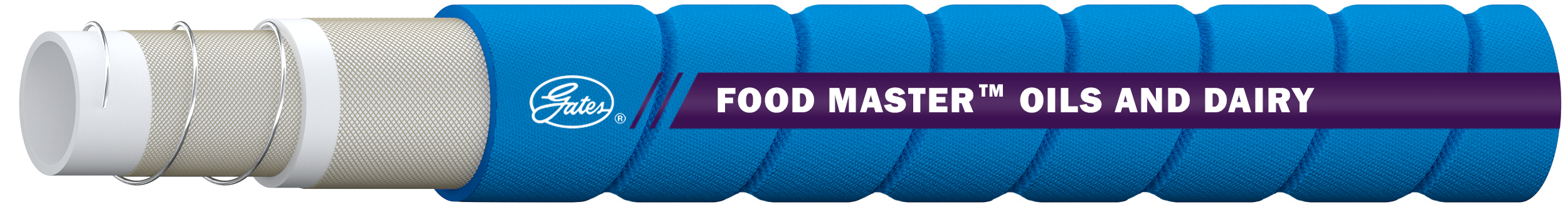

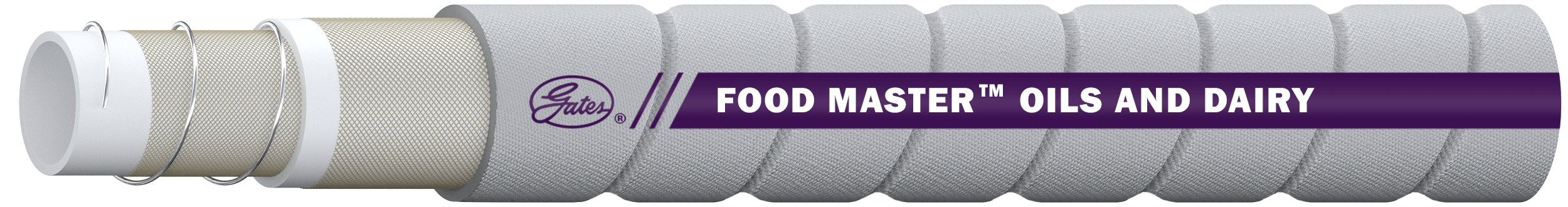

# Food Master™ Oils and Dairy 150SD
RECOMMENDED FOR: Tank truck, barge, ship, or storage tank transfer of a variety of food products such as animal fat, vegetable oil and other edible oils at temperatures up to +230°F requiring FDA sanitary hose. Also suitable for ice cream and other dairy products requiring 3A–Class 3 standards.
– Special white FDA food grade nitrile tube and cover compound capable of maintaining a very high degree of flexibility in both low and high temperature extreme applications (-40°F to 230°F continuous service).
– Lightweight and much more flexible and easier to handle than other food hose on the market.
– Tube meets FDA requirements, 3A–Class 3 and USDA. Phthalate free.
– Monofilament helix is crush and kink-resistant; built on polished stainless stell mandrels to prevent rust.
– Excellent resistance to oil-based media.
– Meets Sanitary FDA and 3A-Class 3 requirements.
Additional information
| Vacuum (In. Hg) | 30 |
|---|---|
| Minimum Bend Radius (in) | 2 |
| Minimum Bend Radius (mm) | 51 |
| Inside Diameter (in) | 0.75 |
| Inside Diameter (mm) | 19.1 |
| Temperature Range | -40°F to +230°F (-40°C to +110°C) |
| Working Pressure (psi) | 150 |
| Length (m) | 61 |
| Outside Diameter (in) | 1.29 |
| Outside Diameter (mm) | 19.1 |
| Coupling Recommendation | 1 Long Shank. 8 Tri-Lokt. 34 Stainless Steel Nipples. 71 Permanent Swaged or Crimped. |
| Color | White |
| Cover | Modified Nitrile – Type C2. Corrugated., Modified Nitrile – Type C2. Smooth. |
| Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Tube | Modified Nitrile – Type C2. High oil resistance. |
| Construction: Cover | Modified Nitrile – Type C2 |
| Construction: Design Factor | 4:1 |
| Construction: Reinforcement | Multi-ply, synthetic textile, dual wire helix |
| Construction: Tube | Modified Nitrile – Type C2. White. High oil resistance |
| Continuous Operating Temperature Range | -40°F to +230°F |
| Min. Burst Pressure (psi) | 600 |
| Hose Inside Diameter (in). | 0.75 |
| Hose Inside Diameter (mm) | 19.1 |
| Hose Outside Diameter (in) | 1.29 |
| Hose Outside Diameter (mm) | 32.8 |
| Standards | Tube meets FDA requirements, 3A-Class 3 and USDA. Phthalate free. |
| Standards: Tube | Meets FDA requirements, 3A-Class 3 and USDA |
| Recommended For | Tank truck, barge, ship, or storage tank transfer of a variety of food products such as animal fat, vegetable oil and other edible oils at temperatures up to +230°F requiring FDA sanitary hose. Also suitable for ice cream and other dairy products requiring 3A-Class 3 standards. |
| Customer Pack | 200 |
| Weight (lbs.) | 0.64 |
