2111-06-06-B - Capital Rubber & Gasket: A Singer Industrial Company

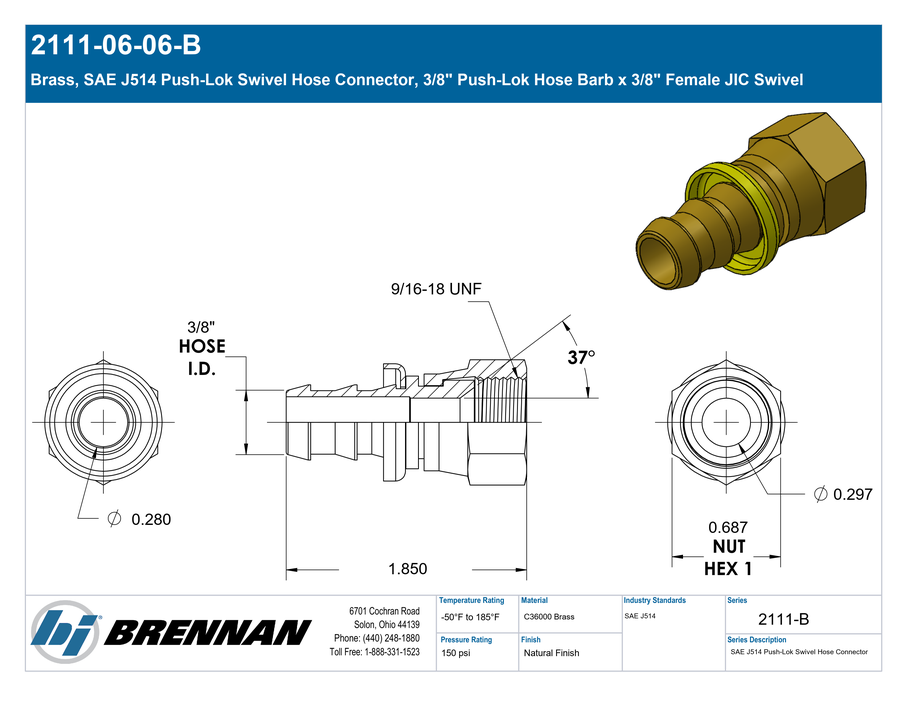

Brass, SAE J514 Push-On Swivel Hose Connector, 3/8″ Push-On Hose Barb x 3/8″ Female JIC Swivel

Connection Details	Side 1 Connection Type: Push-On Hose Barb Side 1 Hose ID: 3/8" Side 1 Standard: Not Defined Side 1 Role: Hose Connection Side 2 Connection Type: Female JIC Swivel Side 2 Tube OD: 3/8" Side 2 Thread Type: 9/16-18 UNF Side 2 Standard: SAE J514 – Class 2B Thread Side 2 Role: Line Connection
Body & Materials	Shape: Straight Shape Type: Swivel Connector Primary Material: Brass Material Grade: C36000 Surface Treatment: Natural Finish Seal Code: LDPE
Dimensions	Weight: 0.07 lb
Performance Specifications	Working Pressure: 150 psi Temperature Range: -50°F to 185°F Temperature Notes: Temperature limited by LDPE Washer
Cross References	Aeroquip Part Number: 4741-6B Parker Hose Part Number: 30682-6-6B Parker TFD Part Number: 30682-6-6B
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6c (Lead in copper alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Push-On Hose Barb x Female JIC Swivel
Technical Series Configuration	Push-On Hose Barb x SAE J514 Female JIC Swivel Connector
Side 1 Connection Type	Push-On Hose Barb
Side 2 Connection Type	Female JIC Swivel
Shape	Straight
Product Type	Fittings
