Split Flange Halves / 1951-12-H

1951-12-H

1951-12-H
1951-12-H - Image 2
1951-12-H - Image 3
1951-12-H - Image 4
Product Code: 1951-12-h Brand:
Options
1951-08-h 1951-12-h 1951-16-h 1951-20-h 1951-24-h 1951-32-h 1951-40-h 1951-48-h 1951-56-h 1951-64-h
- +

Description

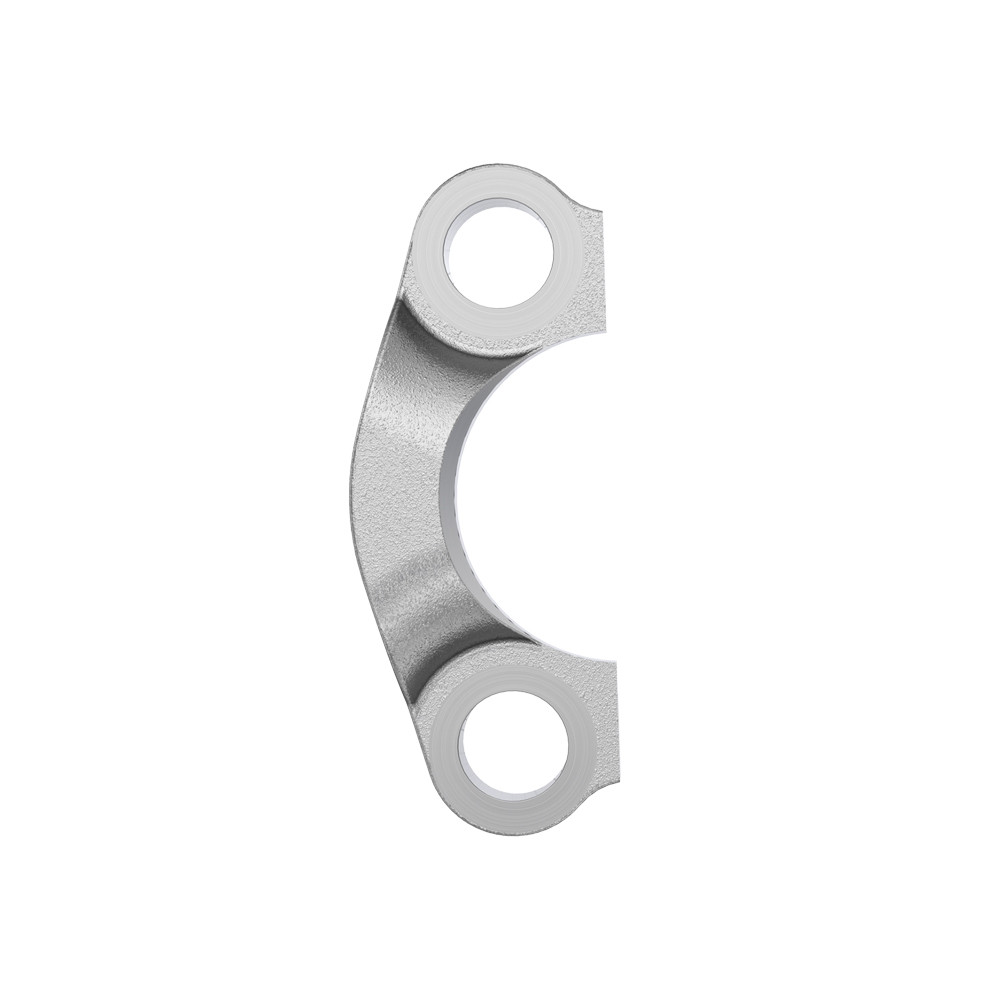

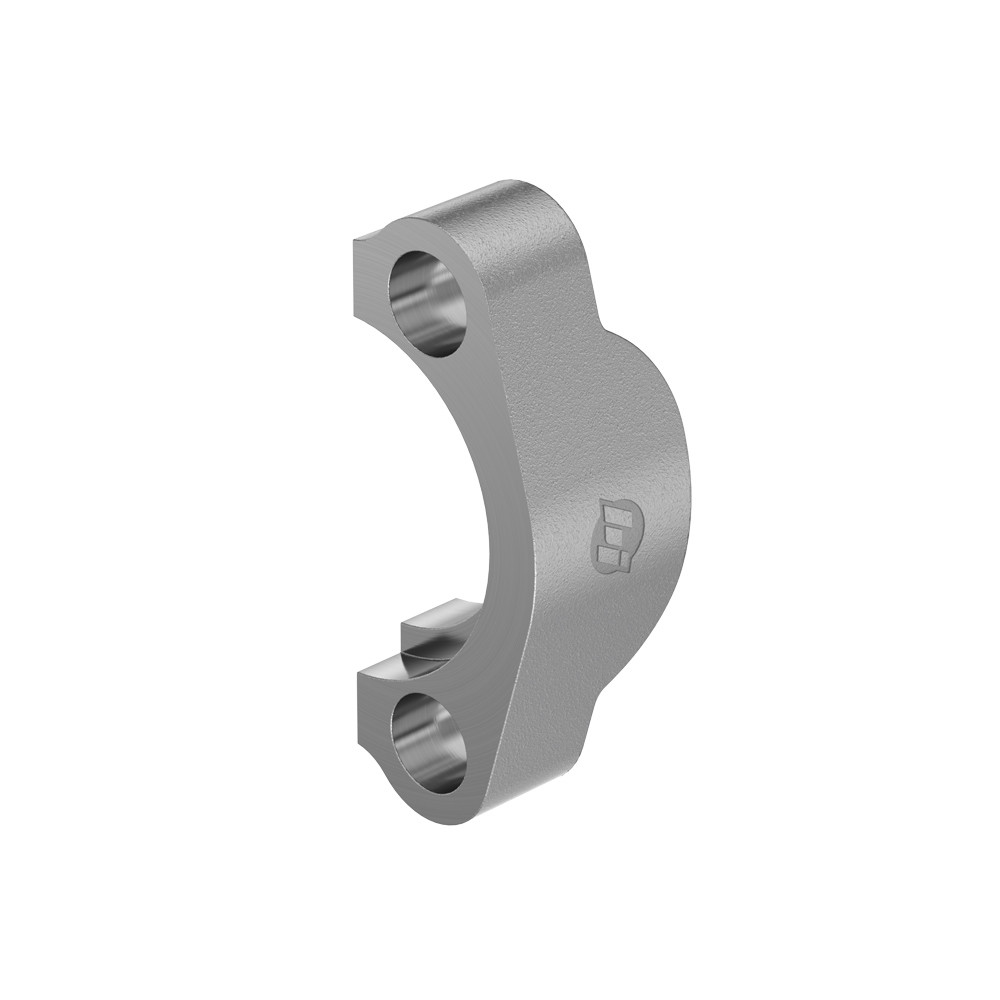

Steel, SAE J518 Code 61 Split Flange Half, 3/4″ Flange Size

Additional information

Connection Details

Flange Interface Code: Code 61
Flange Interface Flange Size: 3/4"
Body & Materials

Primary Material: Steel
Material Grade: C1045
Plating: Trivalent Zinc
Weight: 0.15 lb
Performance Specifications

Working Pressure: 5000 psi
Temperature Range: -65°F to 500°F
Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117
Burst Pressure: 20000 psi
Burst Ratio: 4:1
Cross References

Aeroquip Part Number: 449-74446-12
Parker Hose Part Number: 51H-12
Parker TFD Part Number: 12FCS1S
Series Configuration

Code 61 Split Flange Half
Technical Series Configuration

SAE J518 Code 61 Split Flange Half
