Blanking Flanges / 1943-62-12

1943-62-12

1943-62-12

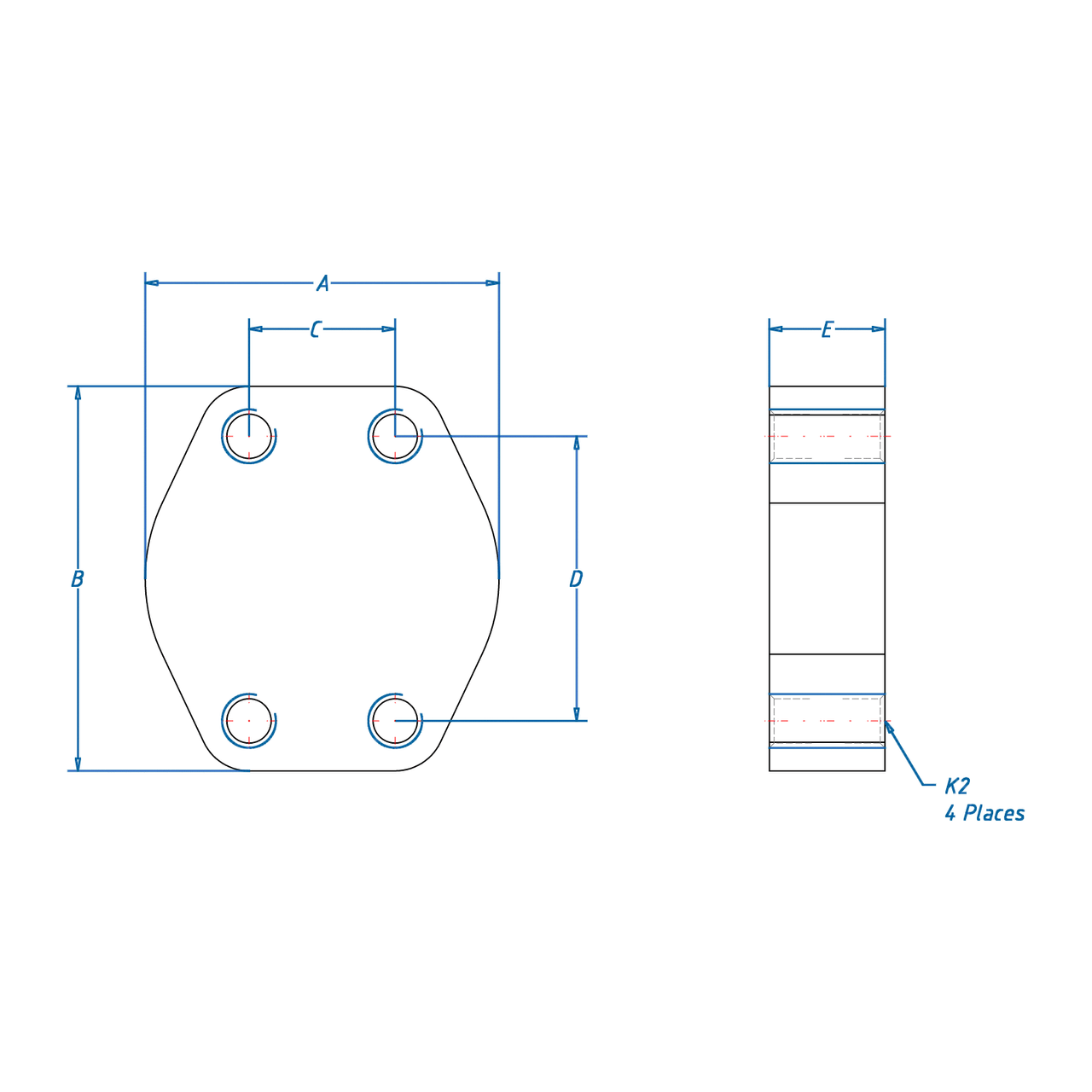

1943-62-12 - Image 2
Product Code: 1943-62-12 Brand:
Options
1943-62-12 1943-62-16 1943-62-20 1943-62-24 1943-62-32 1943-62-40 1943-62-48
- +

Description

Steel, 4-Bolt Blanking Flange Code 62 Flat Face, 3/4″ Pad Size

Additional information

Connection Details

Flange Interface Sealing Type: Flat Face
Flange Interface Code: Code 62
Flange Interface Pad Size: 3/4"
Body & Materials

Primary Material: Steel
Material Grade: C1020
Weight: 2.15 lb
Performance Specifications

Working Pressure: 6000 psi
Temperature Range: -65°F to 500°F
Burst Pressure: 24000 psi
Burst Ratio: 4:1
Cross References

Parker TFD Part Number: 8PQ2PSX
Series Configuration

Flat Face Code 62 Blanking Flange
Technical Series Configuration

SAE J518 Code 62 Flat Face Blanking Flange
