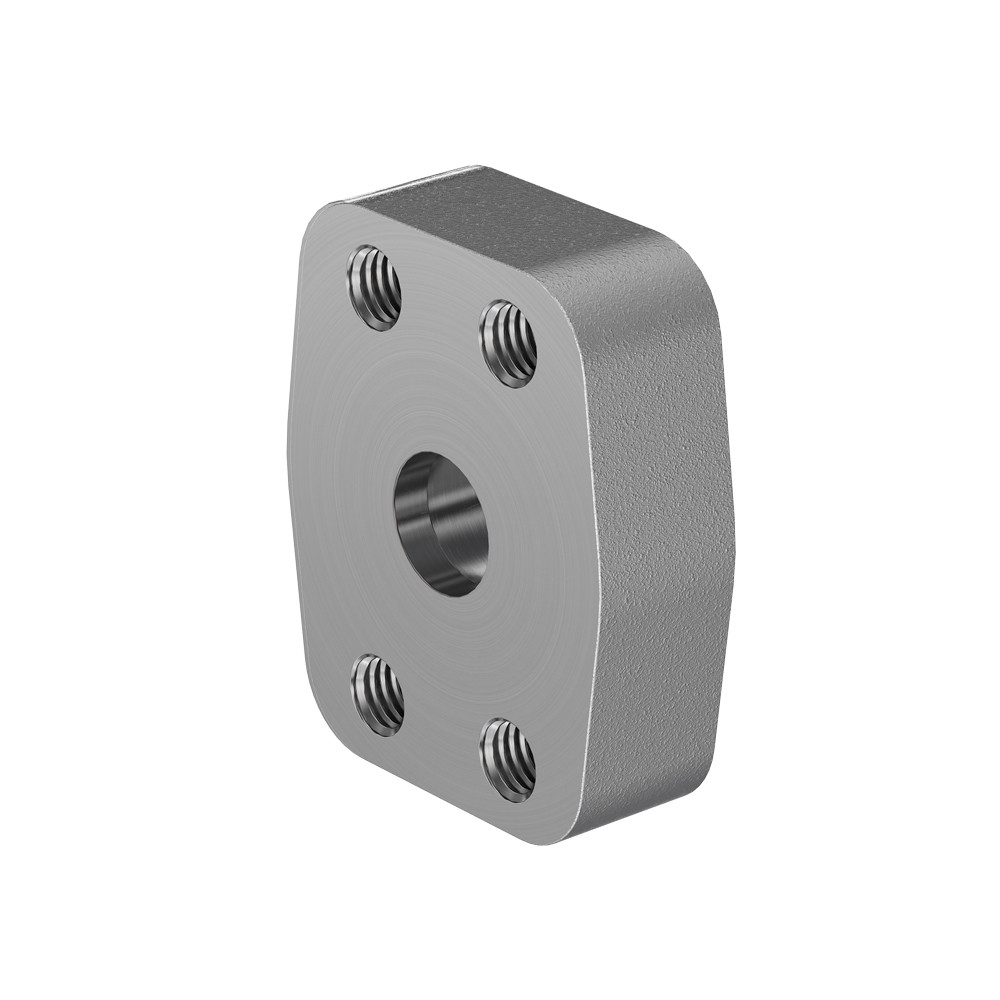

1938-61-32-32-SS

Connection Details	Connection End Type: Tube Weld Connection End Tube OD: 2" Connection End Standard: SAE J514 Connection End Role: Weld Connection Flange Interface Sealing Type: Flat Face Flange Interface Code: Code 61 Flange Interface Pad Size: 2"
Body & Materials	Primary Material: Stainless Steel Material Grade: 316/316L Stainless Steel Weight: 2.29 lb
Performance Specifications	Working Pressure: 3000 psi Temperature Range: -425°F to 1200°F Burst Pressure: 12000 psi Burst Ratio: 4:1
Cross References	Parker TFD Part Number: 32W4Q1PSS
Series Configuration	Tube Weld x Flat Face Code 61 Flange
Technical Series Configuration	Flat Socket Tube Weld x SAE J518 Code 61 Flat Face Flange
Side 1 Connection Type	Tube Weld
