1938-61-12-12

Product Code: 1938-61-12-12 Brand: Brennan Inc

Options

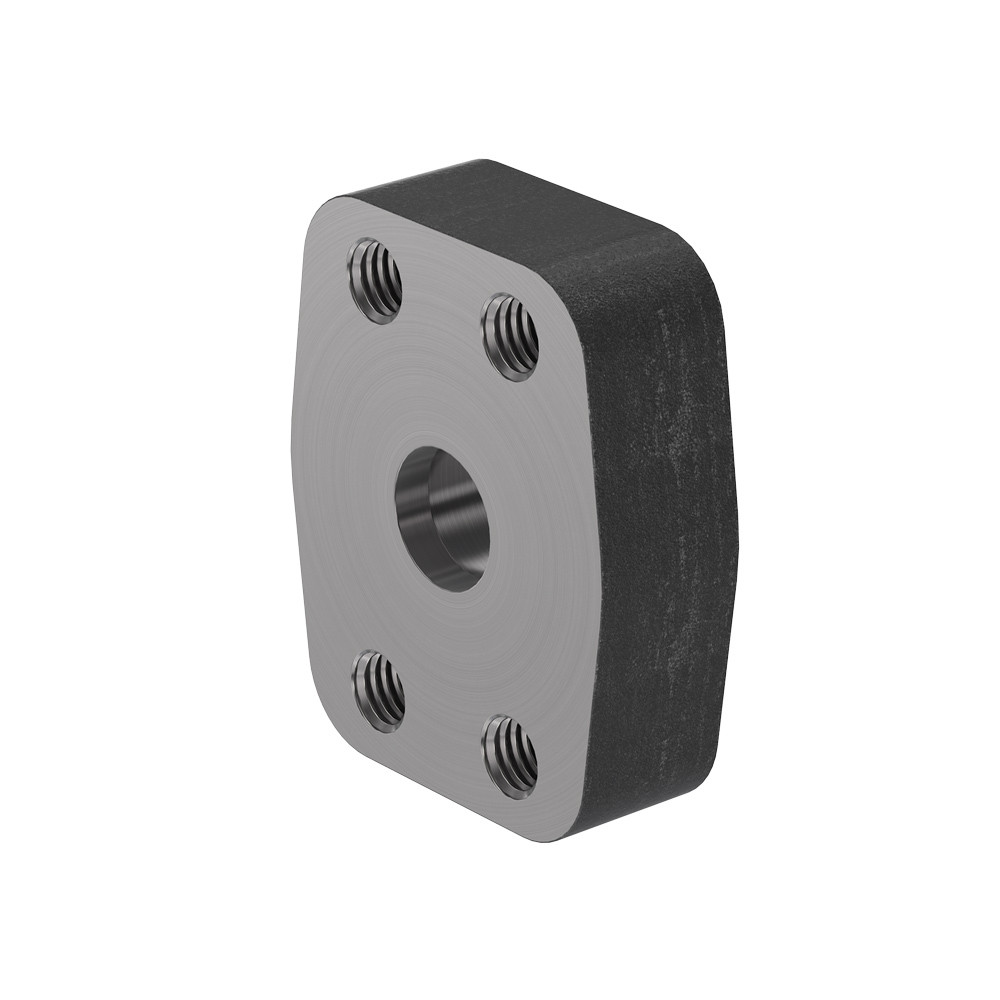

Steel, Flat Socket Tube Weld 4-Bolt Flange Code 61 Flat Face, 3/4″ Tube Weld x 3/4″ Pad Size

Connection Details	Connection End Type: Tube Weld Connection End Tube OD: 3/4" Connection End Standard: SAE J514 Connection End Role: Weld Connection Flange Interface Sealing Type: Flat Face Flange Interface Code: Code 61 Flange Interface Pad Size: 3/4"
Body & Materials	Primary Material: Steel Material Grade: C1020 Weight: 0.8502 lb
Performance Specifications	Working Pressure: 5000 psi Temperature Range: -65°F to 500°F Burst Pressure: 20000 psi Burst Ratio: 4:1
Cross References	Parker TFD Part Number: 12W4Q1PSX
Series Configuration	Tube Weld x Flat Face Code 61 Flange
Technical Series Configuration	Flat Socket Tube Weld x SAE J518 Code 61 Flat Face Flange
Side 1 Connection Type	Tube Weld
