1936-61-32-32

Product Code: 1936-61-32-32 Brand: Brennan Inc

Options

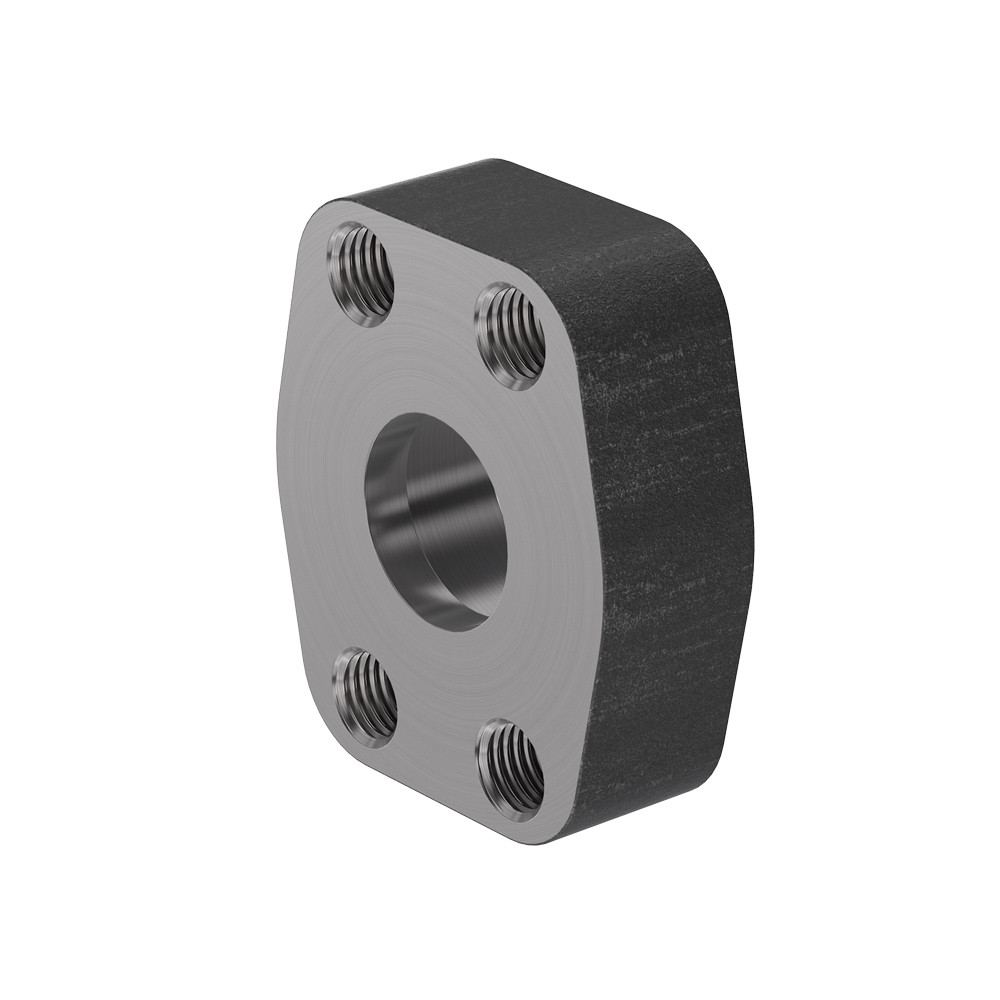

Steel, Flat Socket Pipe Weld 4-Bolt Flange Code 61 Flat Face, 2″ Pipe Weld x 2″ Pad Size

Connection Details	Connection End Type: Pipe Weld Connection End Pipe Size: 2" Connection End Standard: ASME / ANSI B16.11 Connection End Role: Weld Connection Flange Interface Sealing Type: Flat Face Flange Interface Code: Code 61 Flange Interface Pad Size: 2"
Body & Materials	Primary Material: Steel Material Grade: C1020 Weight: 3.3277 lb
Performance Specifications	Working Pressure: 3000 psi Temperature Range: -65°F to 500°F Burst Pressure: 12000 psi Burst Ratio: 4:1
Cross References	Parker Hose Part Number: 32W5Q1PSX Parker TFD Part Number: 32W5Q1PSX
Series Configuration	Pipe Weld x Flat Face Code 61 Flange
Technical Series Configuration	Flat Socket Pipe Weld x SAE J518 Code 61 Flat Face Flange
Side 1 Connection Type	Pipe Weld
