1935-61-12-12

Product Code: 1935-61-12-12 Brand: Brennan Inc

Options

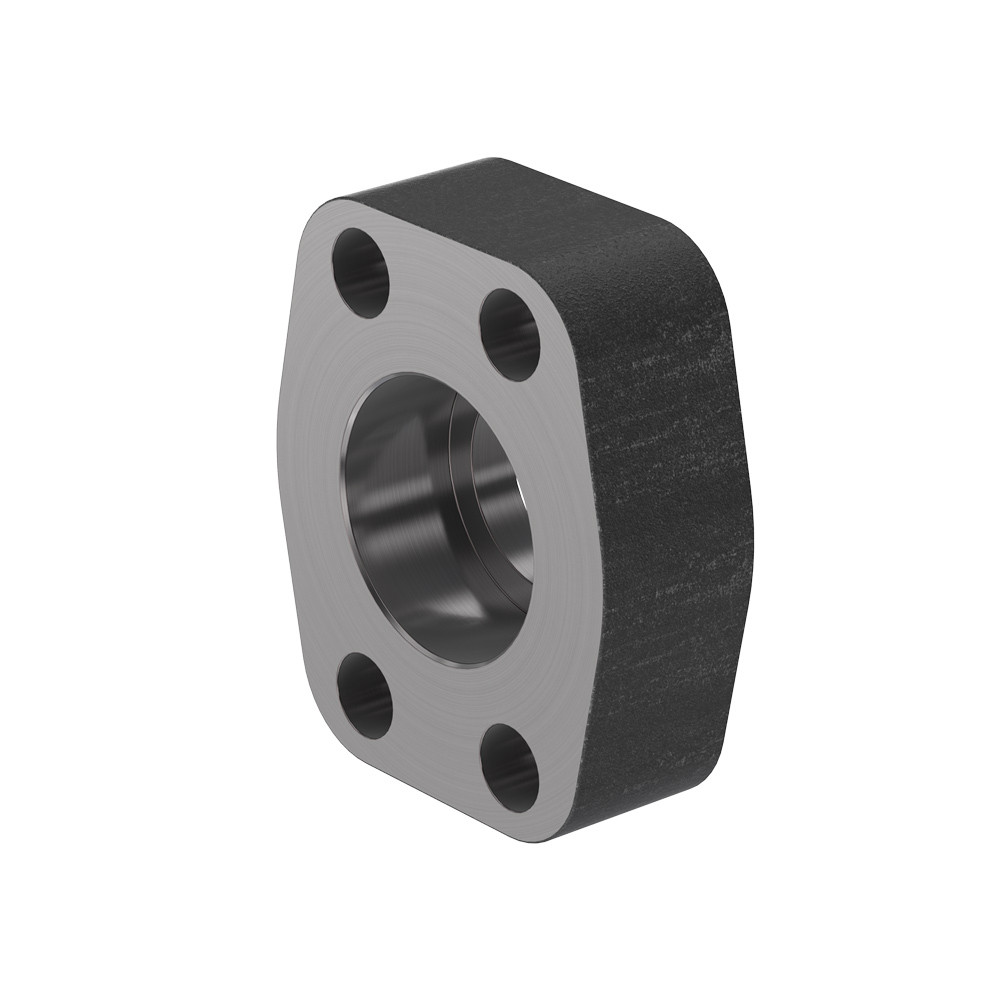

Steel, Flat Socket Pipe Weld 4-Bolt Flange Code 61 O-Ring Face, 3/4″ Pipe Weld x 3/4″ Pad Size

Connection Details	Connection End Type: Pipe Weld Connection End Pipe Size: 3/4" Connection End Standard: ASME / ANSI B16.11 Connection End Role: Weld Connection Flange Interface Sealing Type: O-Ring Face Flange Interface Code: Code 61 Flange Interface Pad Size: 3/4"
Body & Materials	Primary Material: Steel Material Grade: C1020 Weight: 0.5825 lb
Performance Specifications	Working Pressure: 5000 psi Temperature Range: -65°F to 500°F Burst Pressure: 20000 psi Burst Ratio: 4:1
Cross References	Parker TFD Part Number: 12W5Q1BSX
Series Configuration	Pipe Weld x O-Ring Face Code 61 Flange
Technical Series Configuration	Flat Socket Pipe Weld x SAE J518 Code 61 O-Ring Face Flange
Side 1 Connection Type	Pipe Weld
