1934-64-64

Product Code: 1934-64-64 Brand: Brennan Inc

Options

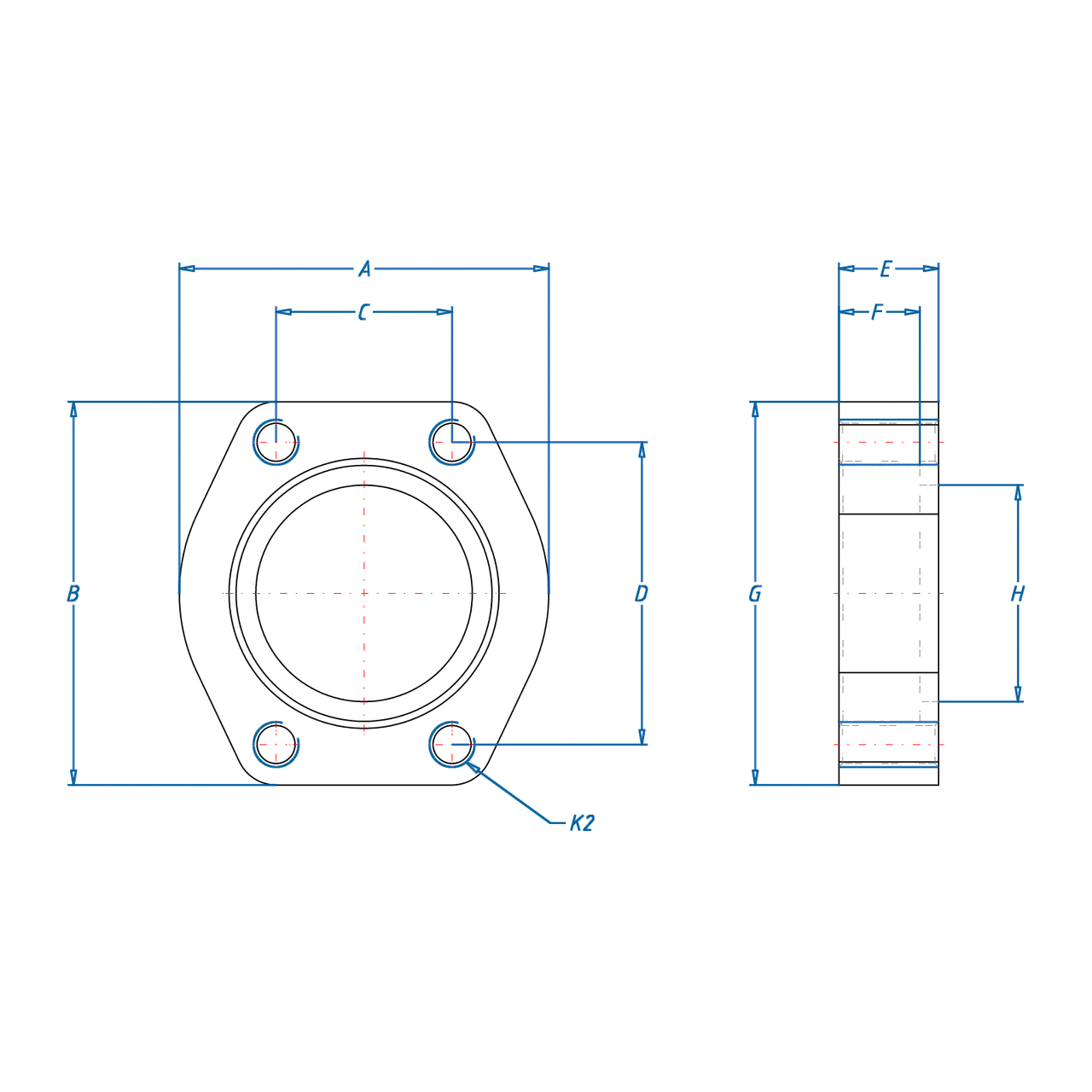

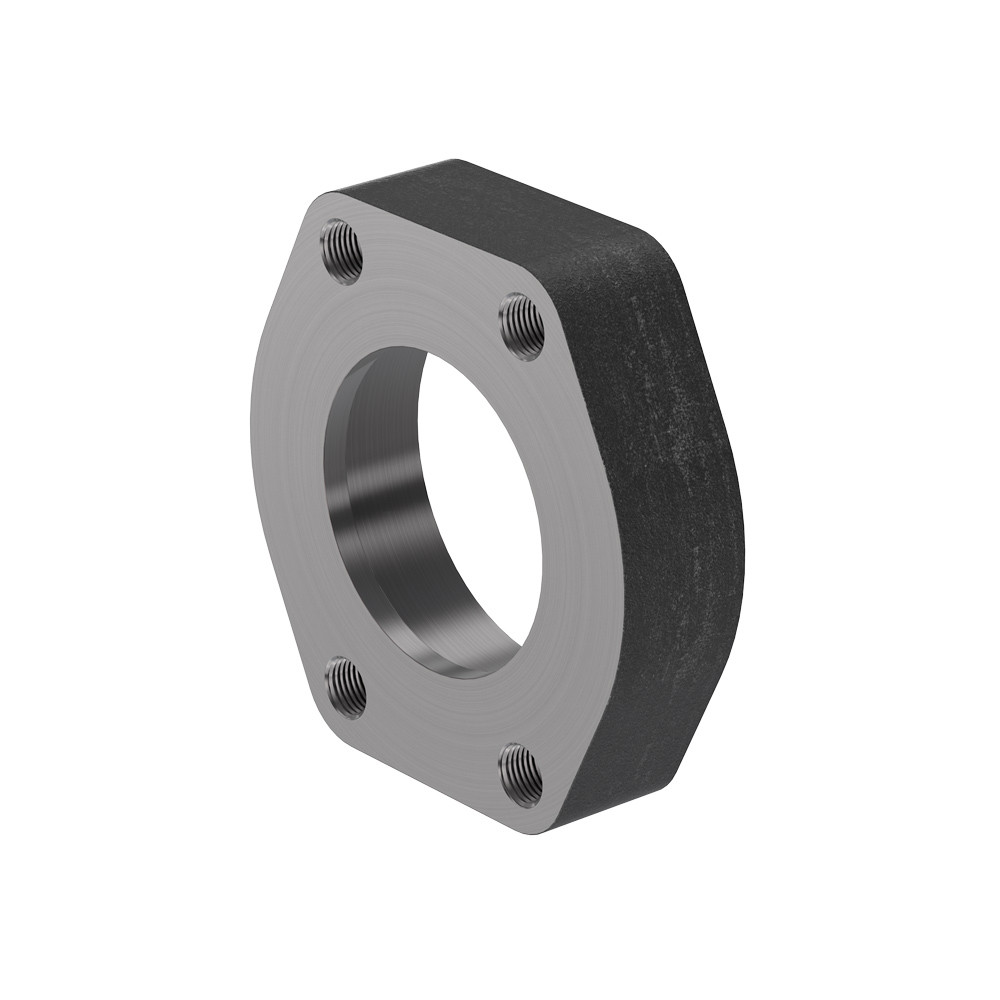

Steel, Flat Socket Pipe Weld 4-Bolt Flange Code 61 Flat Face, 4″ Pipe Weld x 4″ Pad Size

Connection Details	Connection End Type: Pipe Weld Connection End Pipe Size: 4" Connection End Standard: ASME / ANSI B16.11 Connection End Role: Weld Connection Flange Interface Sealing Type: Flat Face Flange Interface Code: Code 61 Flange Interface Pad Size: 4"
Body & Materials	Primary Material: Steel Material Grade: C1020 Weight: 6.8125 lb
Performance Specifications	Working Pressure: 500 psi Temperature Range: -65°F to 500°F Burst Pressure: 2000 psi Burst Ratio: 4:1
Series Configuration	Pipe Weld x Flat Face Code 61 Flange
Technical Series Configuration	Flat Socket Pipe Weld x SAE J518 Code 61 Flat Face Flange
Side 1 Connection Type	Pipe Weld
