1930-61-32-32

Product Code: 1930-61-32-32 Brand: Brennan Inc

Options

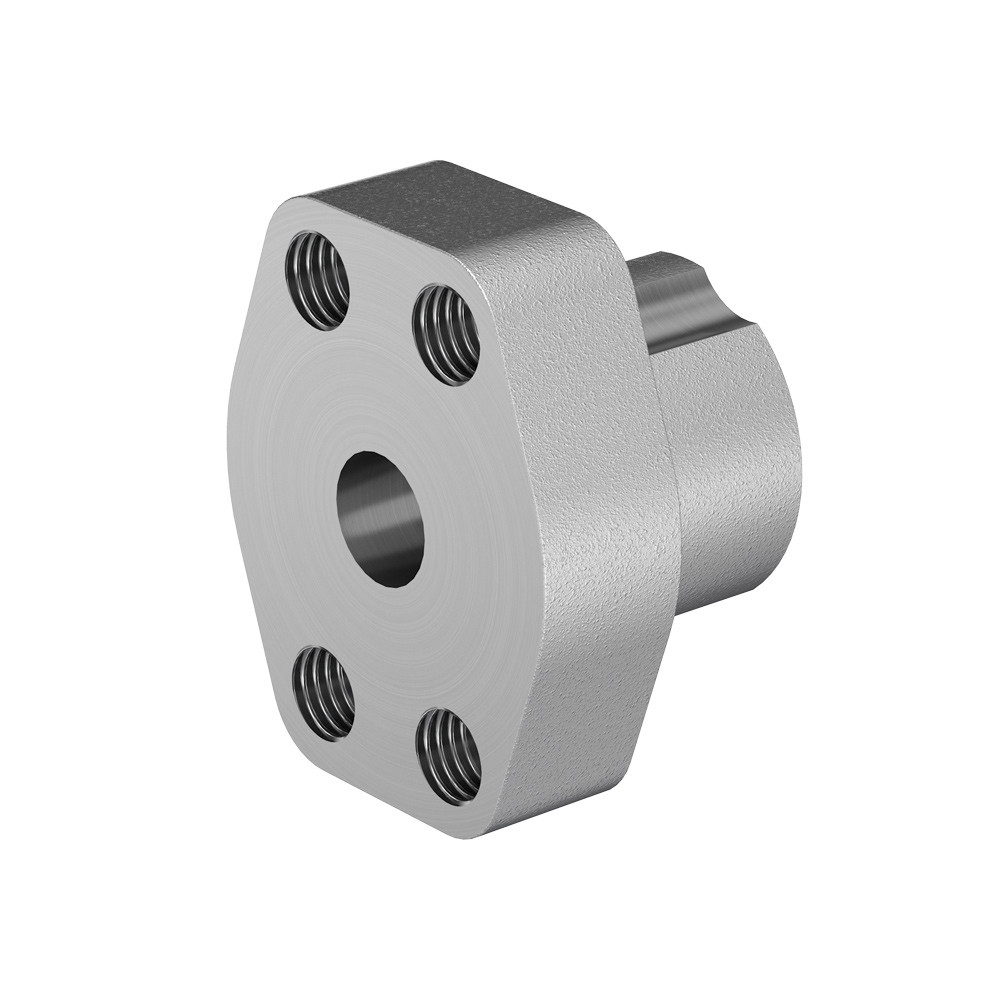

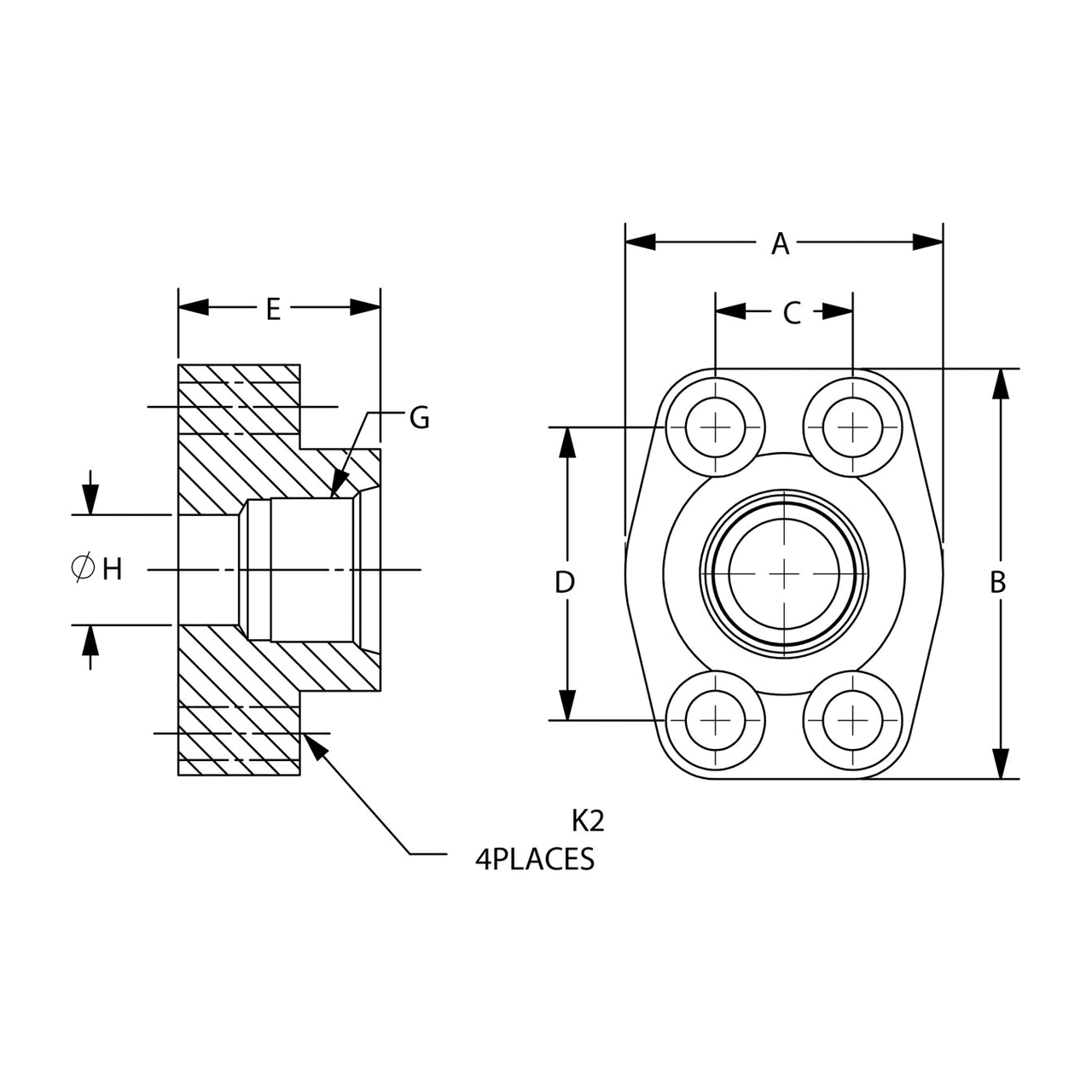

Steel, SAE Port 4-Bolt Flange Code 61 Flat Face, 2-1/2-12 Female ORB

Connection Details	Connection End Type: Female ORB Connection End Thread: 2-1/2-12 UN Connection End Standard: SAE J1926 – Class 2B Connection End Role: Port Connection Flange Interface Sealing Type: Flat Face Flange Interface Code: Code 61 Flange Interface Pad Size: 2"
Body & Materials	Primary Material: Steel Material Grade: C1020 Weight: 4.2225 lb
Performance Specifications	Working Pressure: 1500 psi Temperature Range: -65°F to 500°F Burst Pressure: 6000 psi Burst Ratio: 4:1
Cross References	Parker TFD Part Number: 32G5Q1PSX
Series Configuration	Female ORB x Flat Face Code 61 Flange
Technical Series Configuration	SAE J1926 Female O-Ring Boss x SAE J518 Code 61 Flat Face Flange
Side 1 Connection Type	Female ORB
