1929-61-20-20
Options
Description

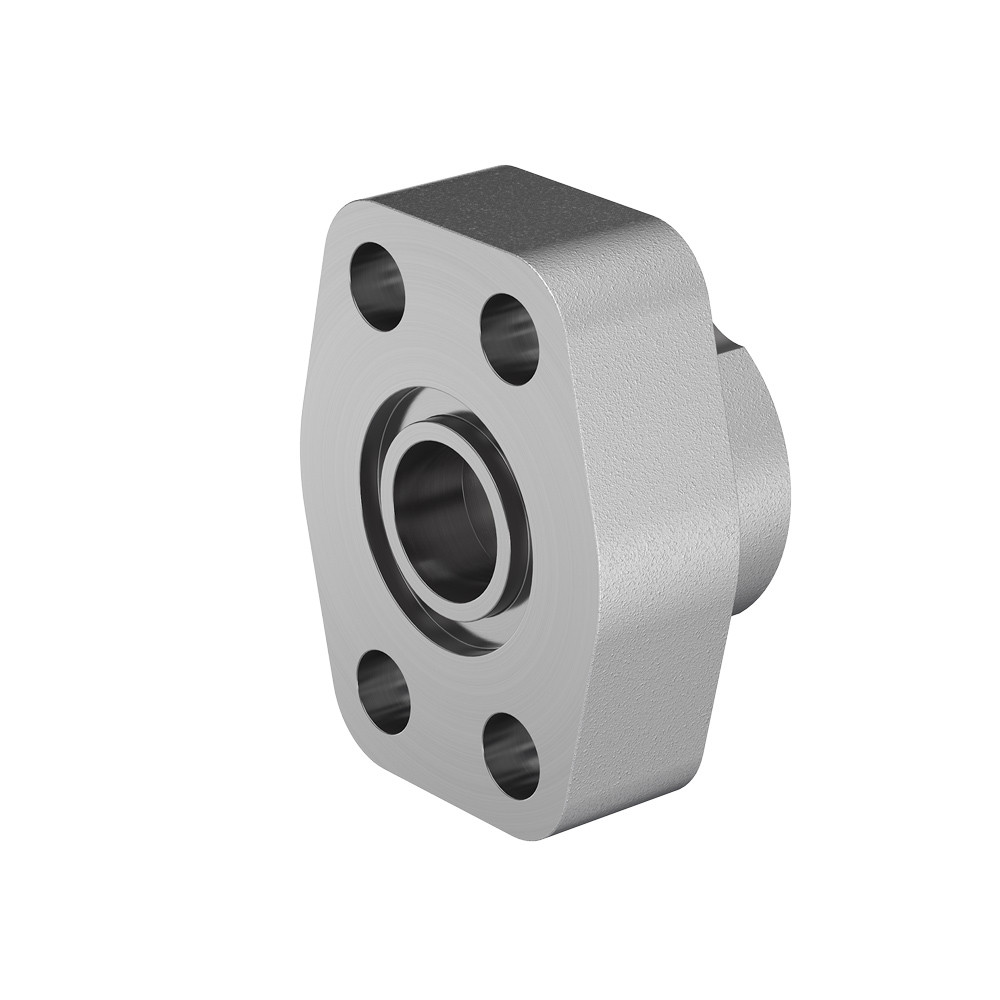

Steel, SAE Port 4-Bolt Flange Code 61 O-Ring Face, 1-5/8-12 Female ORB x 1-1/4″ Pad Size
Additional information
| Connection Details | Connection End Type: Female ORB |
|---|---|
| Body & Materials | Primary Material: Steel |
| Performance Specifications | Working Pressure: 3000 psi |
| Cross References | Parker Hose Part Number: 20G5Q1BSX |
| Series Configuration | Female ORB x O-Ring Face Code 61 Flange |
| Technical Series Configuration | SAE J1926 Female O-Ring Boss x SAE J518 Code 61 O-Ring Face Flange |
| Side 1 Connection Type | Female ORB |
