1927-61-16-16

Connection Details	Connection End Type: Female NPTF Connection End Pipe Size: 1" Connection End Thread: 1-11-1/2 NPTF Connection End Standard: SAE J476 – ANSI B1.20.3 Connection End Role: Pipe Connection Flange Interface Sealing Type: O-Ring Face Flange Interface Code: Code 61 Flange Interface Pad Size: 1"
Body & Materials	Primary Material: Steel Material Grade: C1020 Weight: 1.1109 lb
Performance Specifications	Working Pressure: 4000 psi Temperature Range: -65°F to 500°F Burst Pressure: 16000 psi Burst Ratio: 4:1
Cross References	Parker Hose Part Number: 16GQ1BSX Parker TFD Part Number: 16GQ1BSX

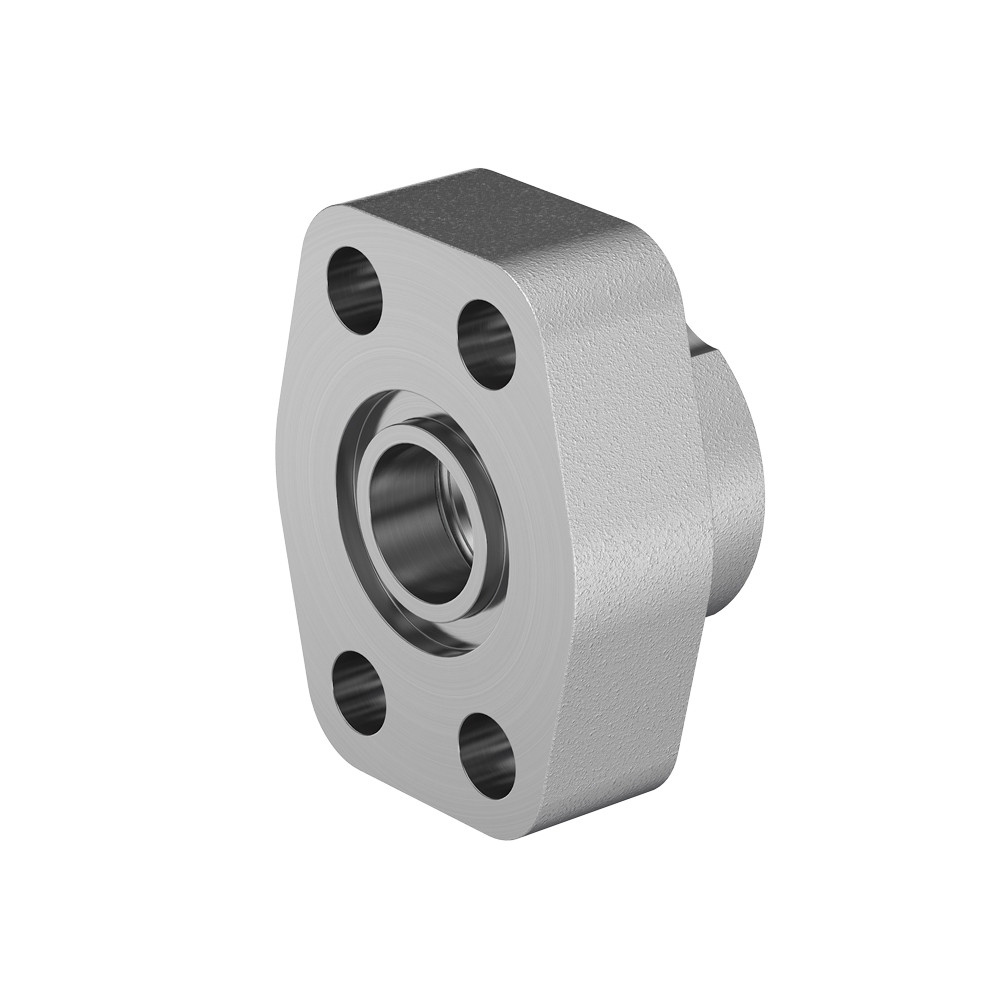

Series Configuration	Female Pipe x O-Ring Face Code 61 Flange
Technical Series Configuration	SAE J476 Female NPTF x SAE J518 Code 61 O-Ring Face Flange
Side 1 Connection Type	Female NPTF
