1914-61-12

Product Code: 1914-61-12 Brand: Brennan Inc

Options

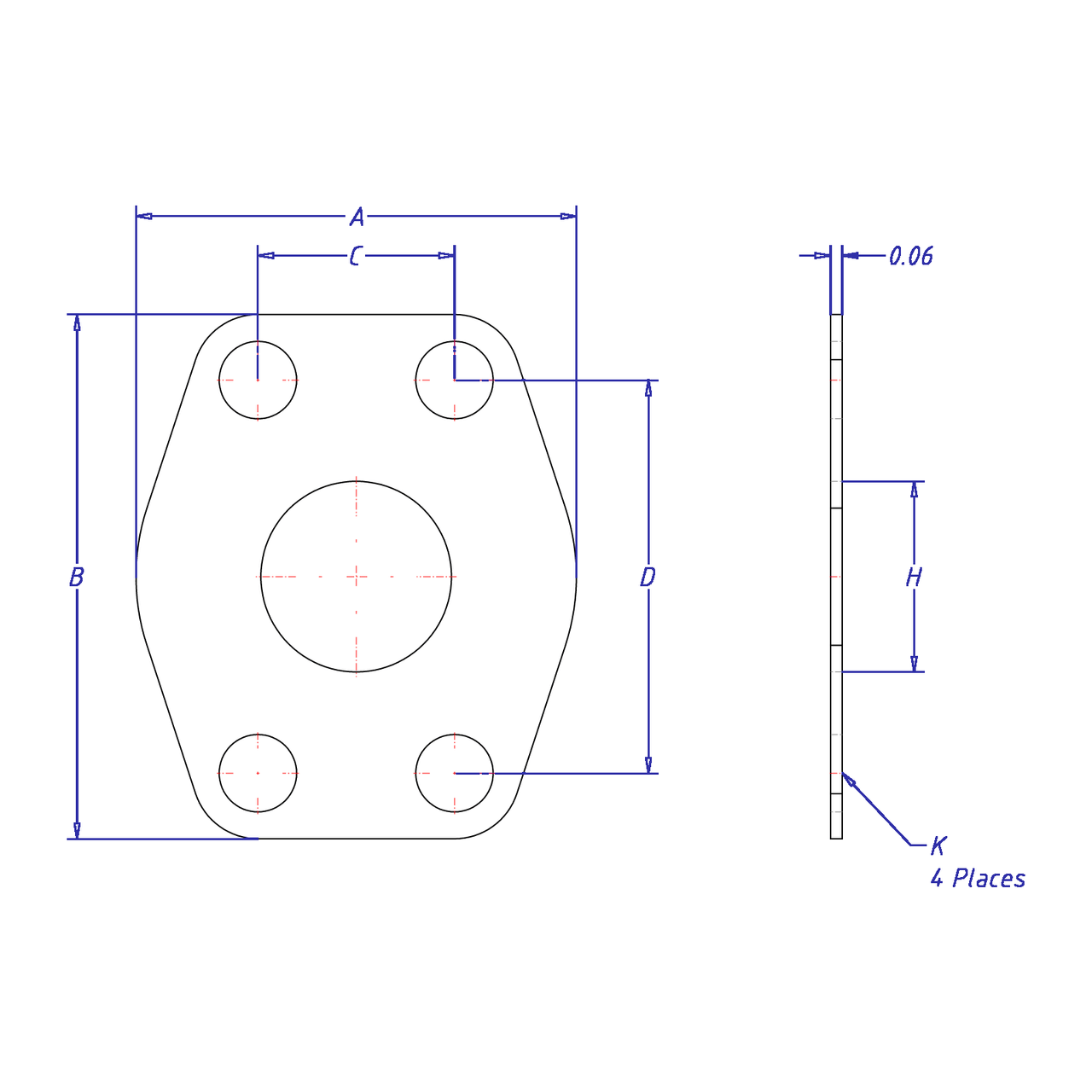

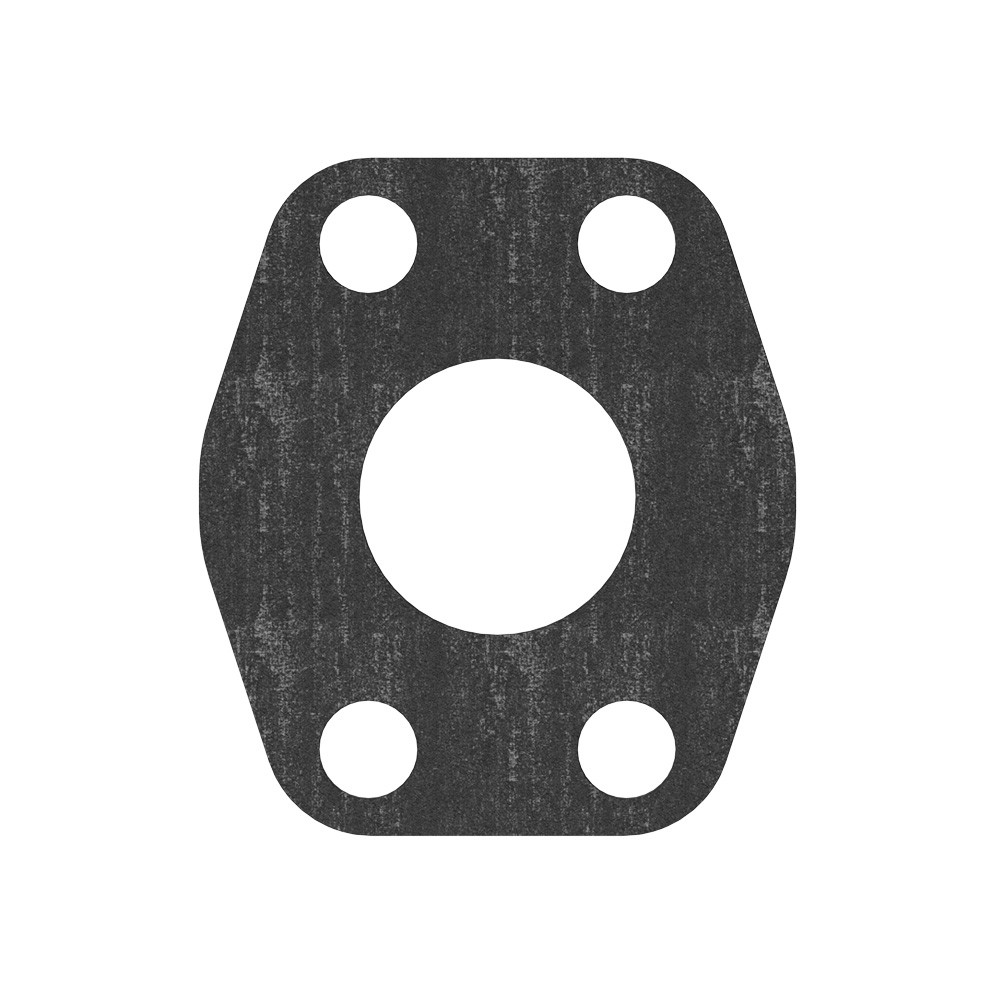

Steel, 4-Bolt Flange Connector Plate Code 61 Flat Face, 3/4″ Pad Size

Connection Details	Flange Interface Sealing Type: Flat Face Flange Interface Code: Code 61 Flange Interface Pad Size: 3/4"
Body & Materials	Primary Material: Steel Material Grade: C1020 Weight: 0.0716 lb
Performance Specifications	Working Pressure: 5000 psi Temperature Range: -65°F to 500°F Burst Pressure: 20000 psi Burst Ratio: 4:1
Cross References	Parker TFD Part Number: 12CP1SX
Series Configuration	Flat Face Code 61 Flange Connector Plate
Technical Series Configuration	SAE J518 Code 61 Flat Face Flange Connector Plate
