Captive Flanges / 1904-62-12

1904-62-12

1904-62-12
1904-62-12 - Image 2
1904-62-12 - Image 3
1904-62-12 - Image 4
1904-62-12 - Image 5
Product Code: 1904-62-12 Brand:
Options
1904-62-12 1904-62-16 1904-62-20 1904-62-24 1904-62-32
- +

Description

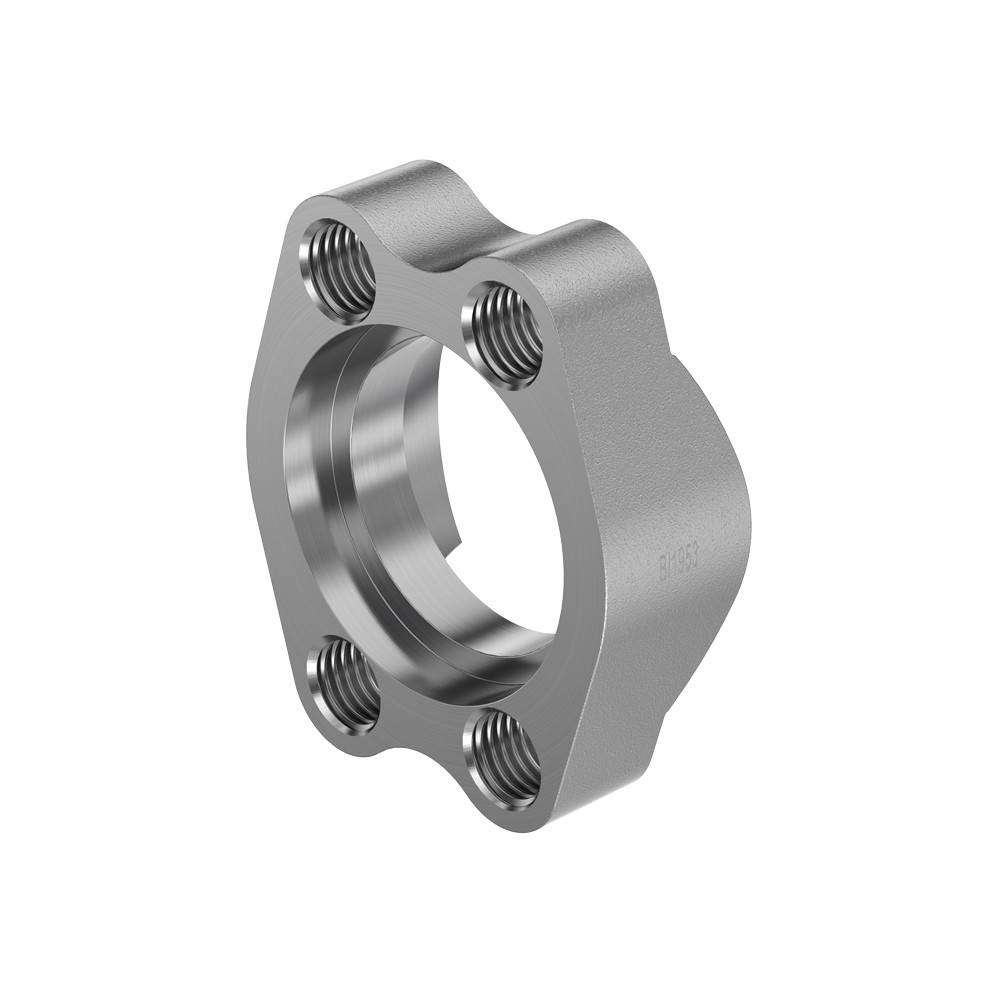

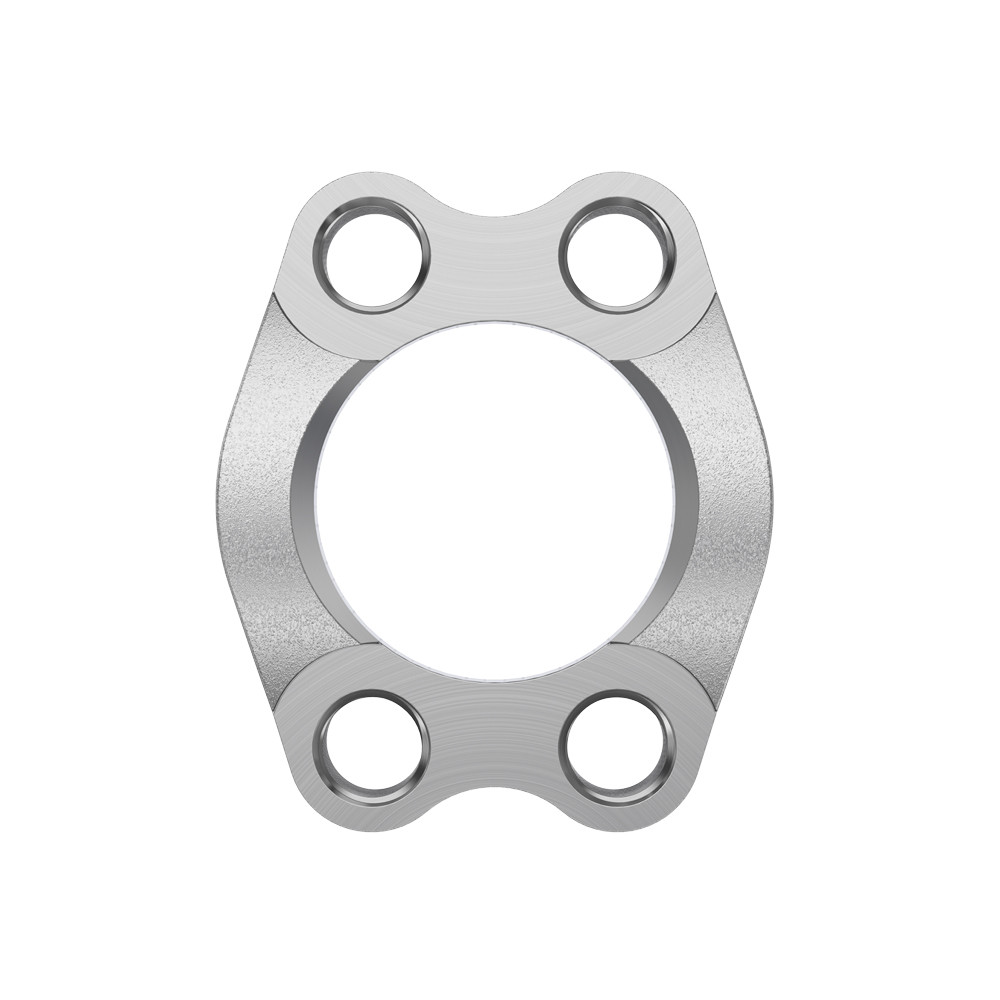

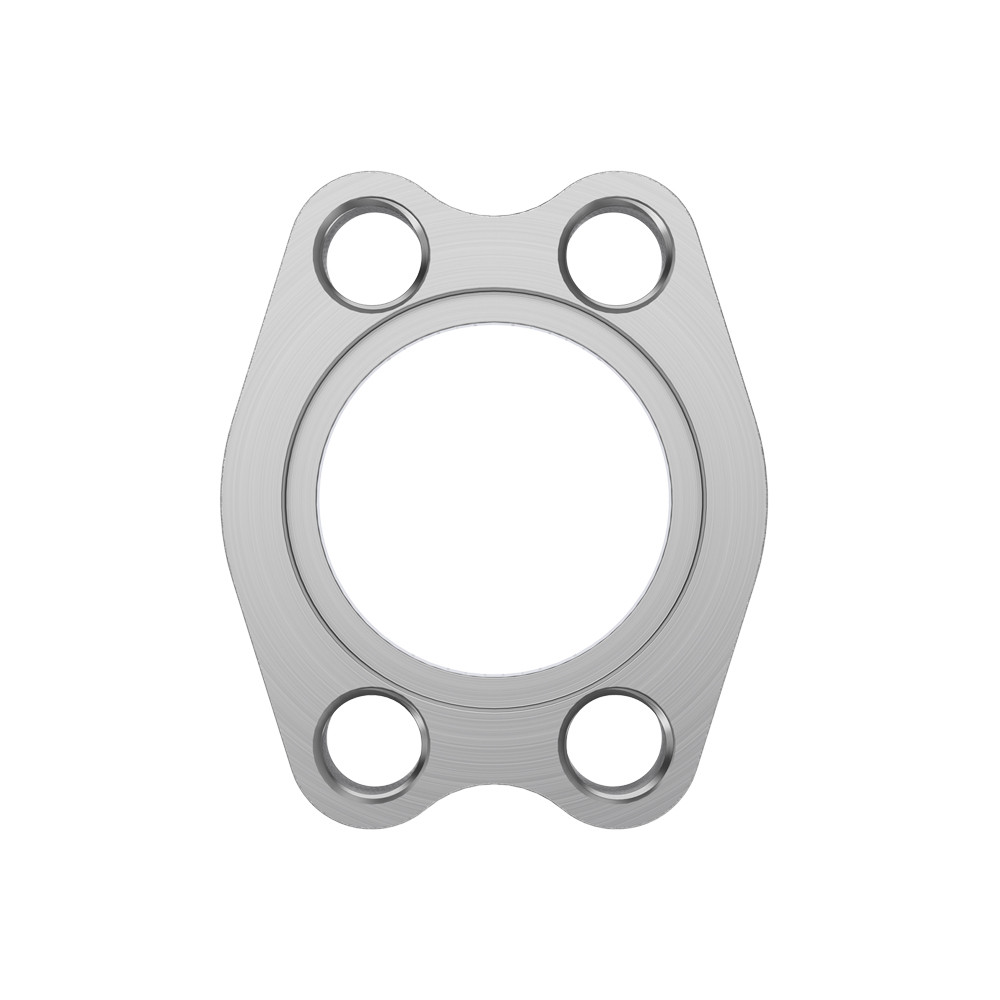

Steel, SAE J518 Code 62 Threaded Captive Flange, 3/4″ Flange Size

Additional information

Connection Details

Flange Interface Code: Code 62
Flange Interface Flange Size: 3/4"
Body & Materials

Primary Material: Steel
Material Grade: C1045
Plating: Trivalent Zinc
Weight: 0.7937 lb
Performance Specifications

Working Pressure: 6000 psi
Temperature Range: -65°F to 500°F
Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117
Burst Pressure: 24000 psi
Burst Ratio: 4:1
Cross References

Parker TFD Part Number: 12FCCT2SX
Series Configuration

Code 62 Threaded Captive Flange
Technical Series Configuration

SAE J518 Code 62 Threaded Captive Flange
