Brennan Inc / Code 61/62 4-Bolt Flanges and Hardware / Split Flanges, Captive Flanges, and Kits / Split Flange Kits / 1901-56

1901-56

Product Code: 1901-56 Brand: Brennan Inc

Options

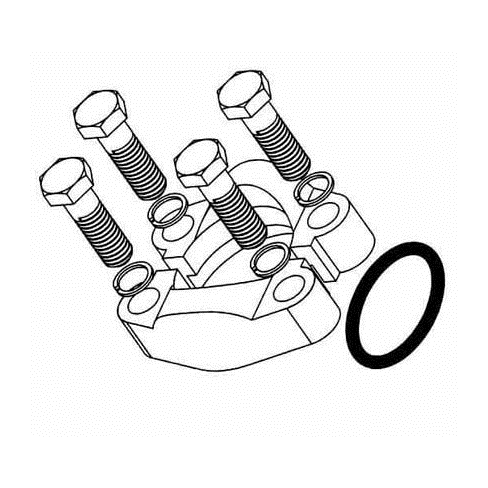

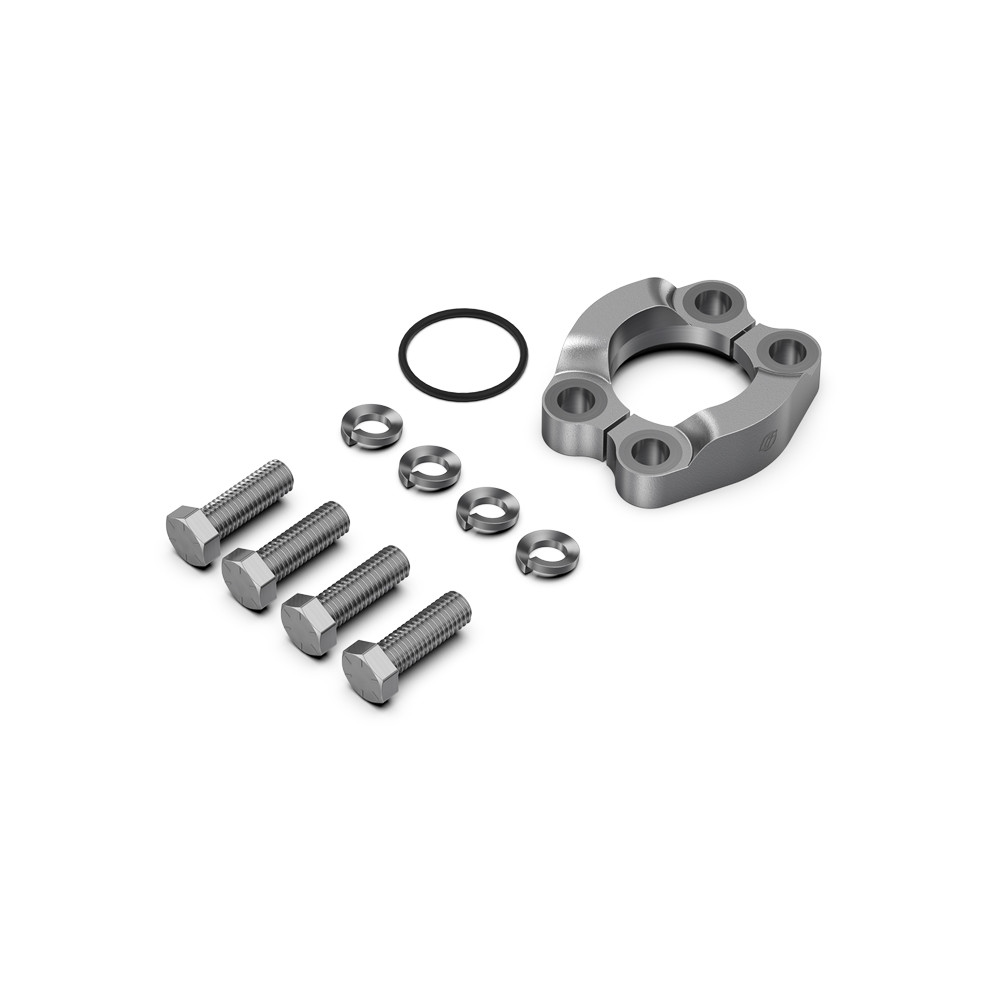

Steel, SAE J518 Code 61 Split Flange Kit, 3-1/2″ Flange Size

Flange Kit Components	Flange Part Number: 1951-56 Flange Size: 3-1/2" Bolt Type: Hex Head Bolt Screw Size: 5/8-11 Bolt Grade: Grade 8 Bolt Material: Steel Bolt Quantity: 4 Washer Type: Lock Washer Washer Material: Steel Washer Quantity: 4 O-Ring Part Number: 4005-56 O-Ring Dash Size: -56 O-Ring Dash Number: -241 O-Ring Quantity: 1
Cross References	Aeroquip Part Number: FF593-56 Parker Hose Part Number: 5151HK-56 Parker TFD Part Number: 56FCS1SK
Series Configuration	Code 61 Split Flange Kit
Technical Series Configuration	SAE J518 Code 61 Split Flange Kit
Shape	Kit
