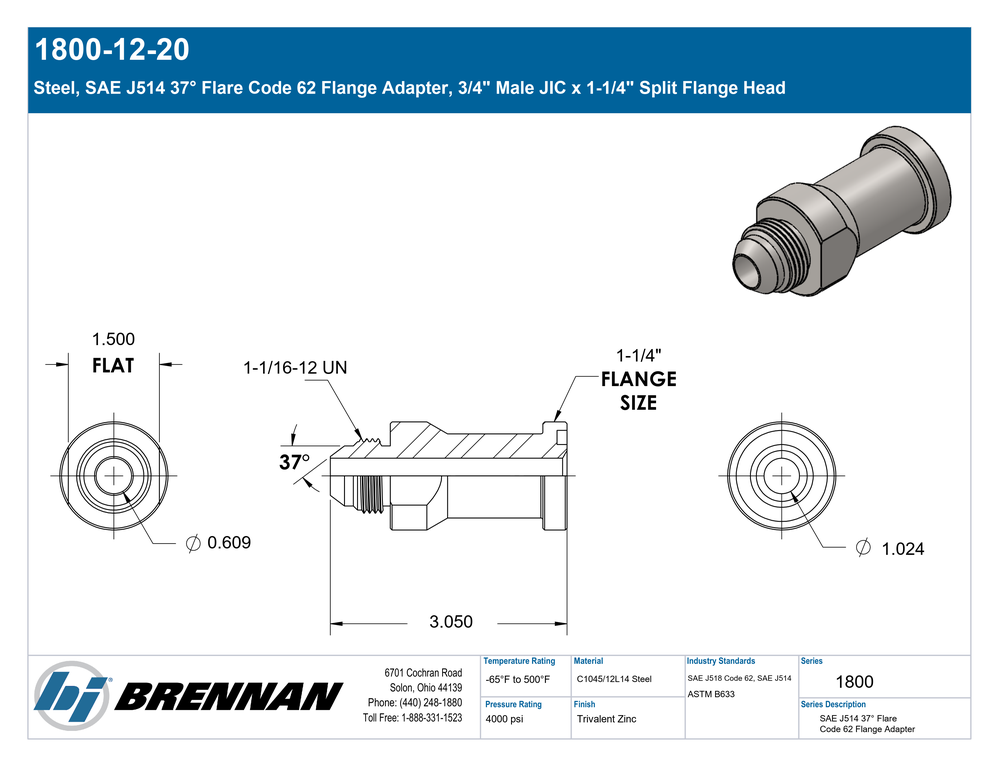

Steel, SAE J514 37° Flare Code 62 Flange Adapter, 3/4″ Male JIC x 1-1/4″ Split Flange Head

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 3/4" Side 1 Thread Type: 1-1/16-12 UN Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Split Flange Head Side 2 Flange Size: 1-1/4" Side 2 Standard: SAE J518 Side 2 Role: Flange Connection
Body & Materials	Shape: Straight Shape Type: Male Adapter Primary Material: Steel Material Grade: 12L14/C1045 Plating: Trivalent Zinc
Dimensions	Weight: 1.23 lb
Performance Specifications	Working Pressure: 4000 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 16000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: FF5541-2012S Parker Hose Part Number: 6AH3-20-12 Parker TFD Part Number: 12-20 XHQ2-S
Regulatory & Compliance	RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy) REACH Compliance: May contain Lead ≥0.1%
Series Configuration	Male JIC x Code 62 Flange
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J518 Code 62 Split Flange Head Adapter
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Split Flange Head
Shape	Straight
Product Type	Fittings
