1800-08-08-SS - Capital Rubber & Gasket: A Singer Industrial Company

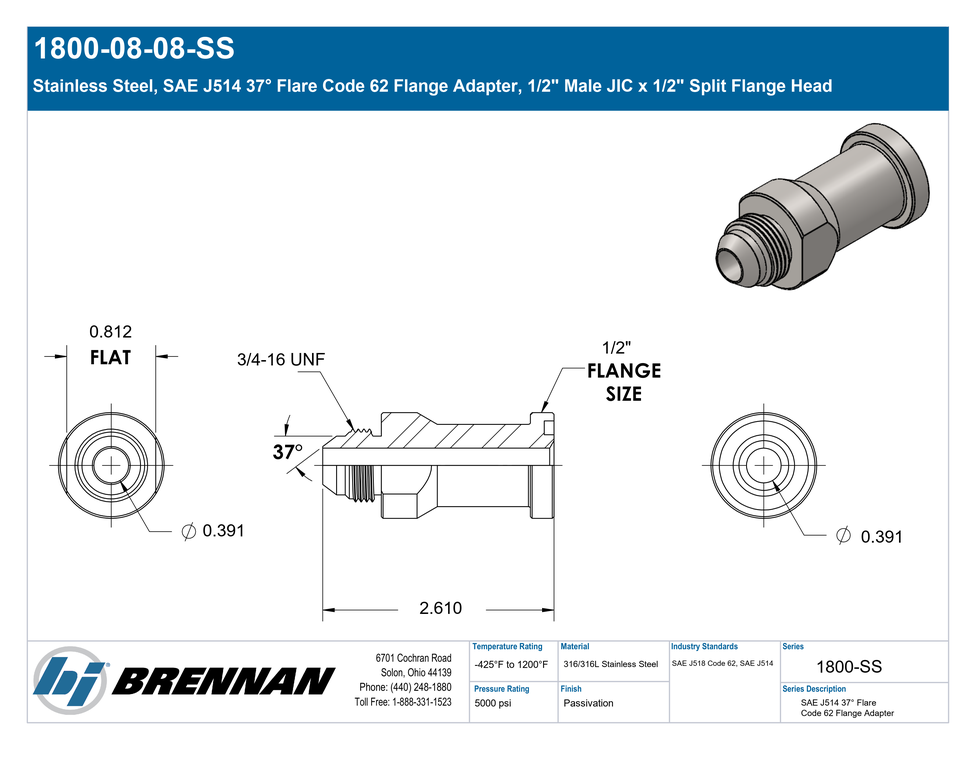

Stainless Steel, SAE J514 37° Flare Code 62 Flange Adapter, 1/2″ Male JIC x 1/2″ Split Flange Head

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 1/2" Side 1 Thread Type: 3/4-16 UNF Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Split Flange Head Side 2 Flange Size: 1/2" Side 2 Standard: SAE J518 Side 2 Role: Flange Connection
Body & Materials	Shape: Straight Shape Type: Male Adapter Primary Material: Stainless Steel Material Grade: 316/316L Surface Treatment: Passivated
Dimensions	Weight: 0.42 lb
Performance Specifications	Working Pressure: 5000 psi Temperature Range: -425°F to 1200°F Burst Pressure: 20000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-FF5541-0808 Parker Hose Part Number: 6AH3-8-8-SS Parker TFD Part Number: 8 XHQ2-SS
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Code 62 Flange
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J518 Code 62 Split Flange Head Adapter
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Split Flange Head
Shape	Straight
Product Type	Fittings
