Flange Plugs / 1724-16-SS

1724-16-SS

1724-16-SS
1724-16-SS - Image 2
1724-16-SS - Image 3
1724-16-SS - Image 4

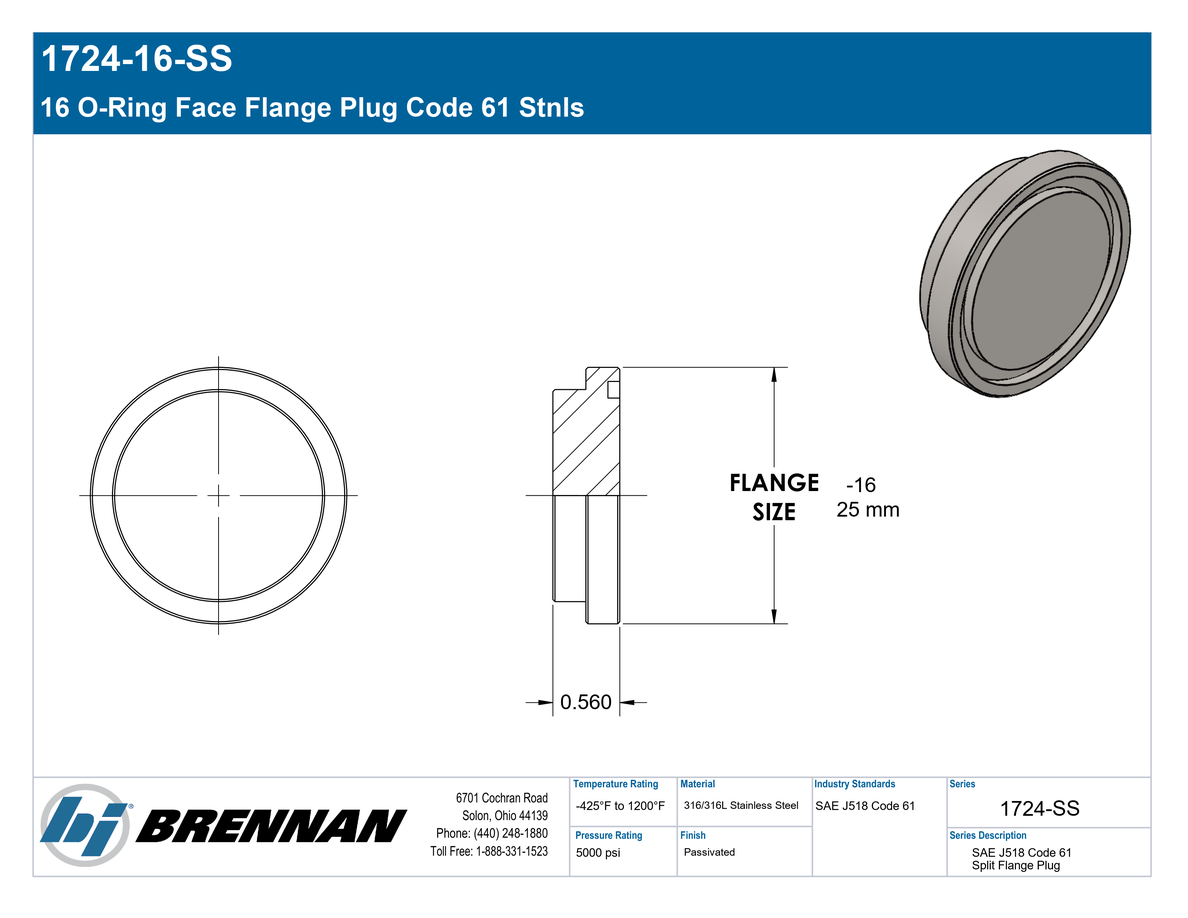

1724-16-SS - Image 5
Product Code: 1724-16-ss Brand:
Options
- +

Description

Stainless Steel, SAE J518 Code 61 Split Flange Plug, 1″ Flange Plug

Additional information

Connection Details

Connection Type: Flange Plug
Flange Size: 1"
Standard: SAE J518
Connection Standard: SAE J518
Role: Flange Connection
Connection Role: Flange Connection
Body & Materials

Shape: Plug
Shape Type: Flange Head Plug
Primary Material: Stainless Steel
Material Grade: 316/316L
Dimensions

Weight: 0.32 lb
Performance Specifications

Working Pressure: 5000 psi
Temperature Range: -425°F to 1200°F
Burst Pressure: 20000 psi
Burst Ratio: 4:1
Cross References

Parker TFD Part Number: 16PQ1SS
Regulatory & Compliance

RoHS Compliance: Compliant
REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration

Code 61 Flange Plug
Technical Series Configuration

SAE J518 Code 61 Split Flange Head Plug
Side 1 Connection Type

Flange Plug
Shape

Cap/Plug
Product Type

Fittings
