Flange Plugs / 1724-08

1724-08

1724-08
1724-08 - Image 2
1724-08 - Image 3
1724-08 - Image 4
1724-08 - Image 5
Product Code: 1724-08 Brand:
Options
- +

Description

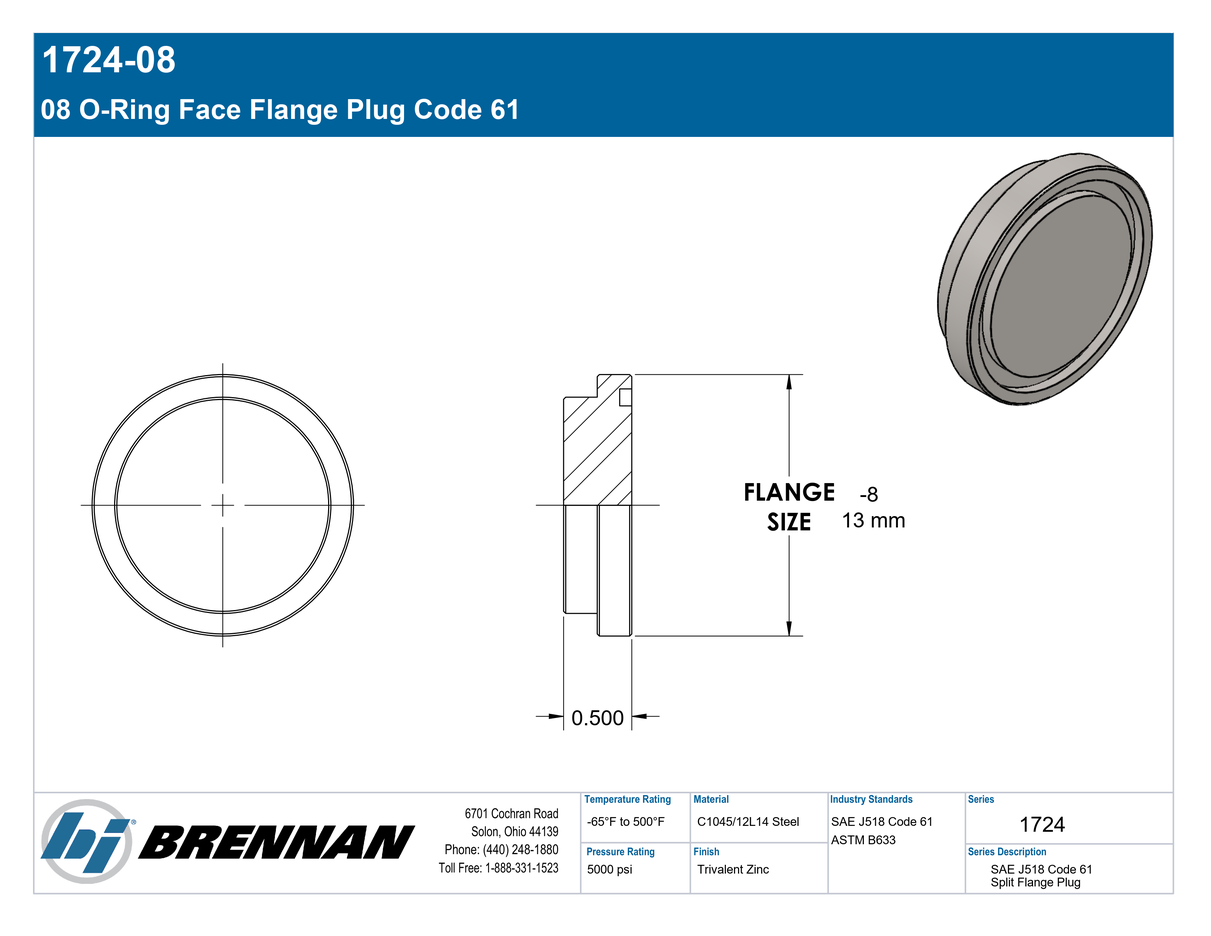

Steel, SAE J518 Code 61 Split Flange Plug, 1/2″ Flange Plug

Additional information

Connection Details

Connection Type: Flange Plug
Flange Size: 1/2"
Standard: SAE J518
Connection Standard: SAE J518
Role: Flange Connection
Connection Role: Flange Connection
Body & Materials

Shape: Plug
Shape Type: Flange Head Plug
Primary Material: Steel
Material Grade: 12L14/C1045
Plating: Trivalent Zinc
Dimensions

Weight: 0.12 lb
Performance Specifications

Working Pressure: 5000 psi
Temperature Range: -65°F to 500°F
Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117
Burst Pressure: 20000 psi
Burst Ratio: 4:1
Cross References

Parker TFD Part Number: 8PQ1SX
Regulatory & Compliance

RoHS Compliance: Compliant by Exemption 6a-I (Lead in steel alloy)
REACH Compliance: May contain Lead ≥0.1%
Series Configuration

Code 61 Flange Plug
Technical Series Configuration

SAE J518 Code 61 Split Flange Head Plug
Side 1 Connection Type

Flange Plug
Shape

Cap/Plug
Product Type

Fittings
