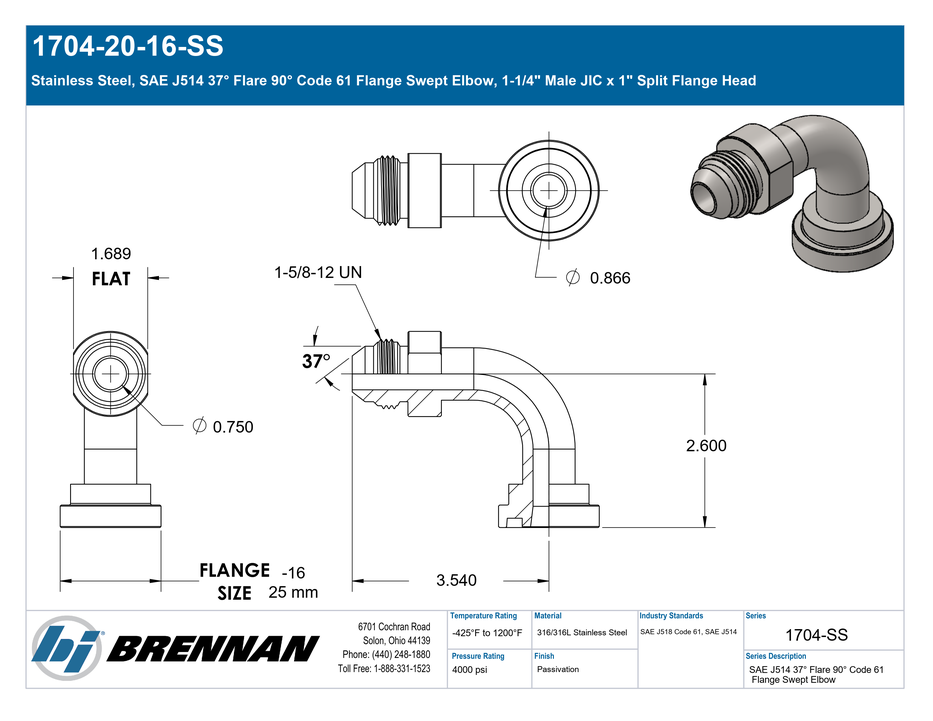

Stainless Steel, SAE J514 37° Flare 90° Code 61 Flange Swept Elbow, 1-1/4″ Male JIC x 1″ Split Flange Head

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 1-1/4" Side 1 Thread Type: 1-5/8-12 UN Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Split Flange Head Side 2 Flange Size: 1" Side 2 Standard: SAE J518 Side 2 Role: Flange Connection
Body & Materials	Shape: 90° Swept Elbow Shape Type: Male Swept Elbow Primary Material: Stainless Steel Material Grade: 316/316L Surface Treatment: Passivated
Dimensions	Weight: 1.32 lb
Performance Specifications	Working Pressure: 4000 psi Temperature Range: -425°F to 1200°F Burst Pressure: 16000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-500024-16-20 Parker Hose Part Number: 19T3-16-20-SS
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Code 61 Flange
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J518 Code 61 Split Flange Head Swept 90° Elbow
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Split Flange Head
Shape	90° Swept Elbow
Product Type	Fittings
