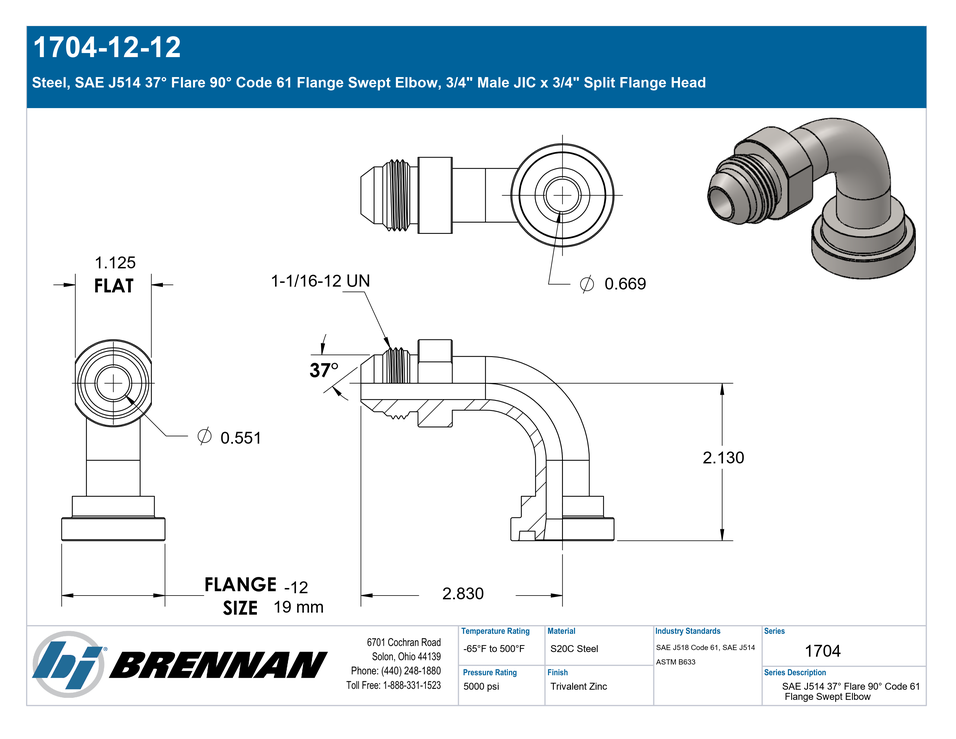

Steel, SAE J514 37° Flare 90° Code 61 Flange Swept Elbow, 3/4″ Male JIC x 3/4″ Split Flange Head

Connection Details	Side 1 Connection Type: Male JIC Side 1 Tube OD: 3/4" Side 1 Thread Type: 1-1/16-12 UN Side 1 Standard: SAE J514 – Class 2A Thread Side 1 Role: Line/Tube Connection Side 2 Connection Type: Split Flange Head Side 2 Flange Size: 3/4" Side 2 Standard: SAE J518 Side 2 Role: Flange Connection
Body & Materials	Shape: 90° Swept Elbow Shape Type: Male Swept Elbow Primary Material: Steel Material Grade: S20C Plating: Trivalent Zinc
Dimensions	Weight: 0.59 lb
Performance Specifications	Working Pressure: 5000 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 20000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 500024-12S Parker Hose Part Number: 4NH3-12-12
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male JIC x Code 61 Flange
Technical Series Configuration	SAE J514 Male JIC Tube x SAE J518 Code 61 Split Flange Head Swept 90° Elbow
Side 1 Connection Type	Male JIC
Side 2 Connection Type	Split Flange Head
Shape	90° Swept Elbow
Product Type	Fittings
