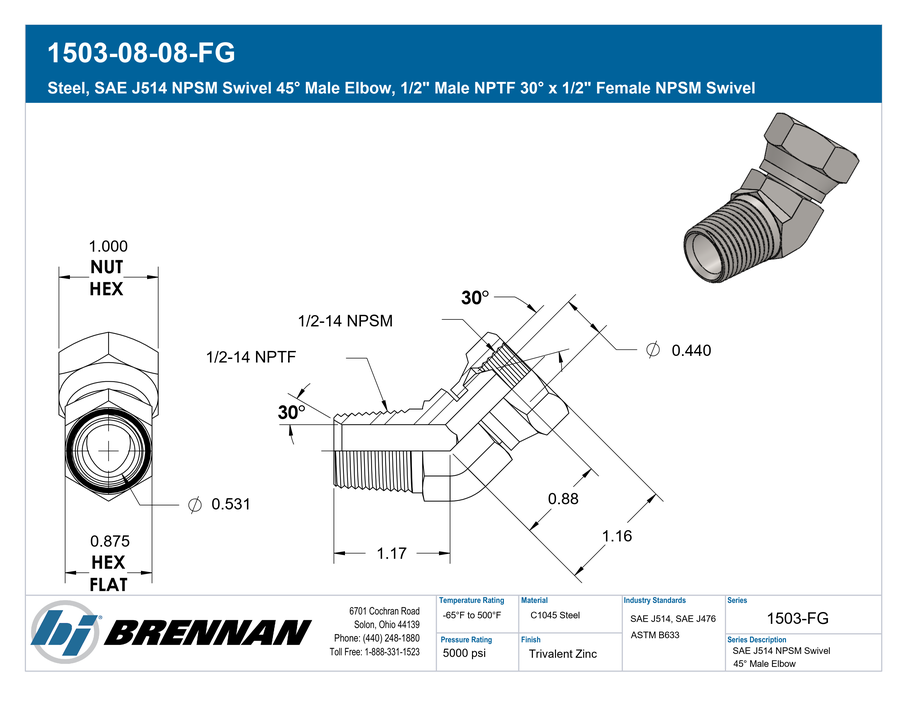

Steel, SAE J514 NPSM Swivel 45° Male Elbow, 1/2″ Male NPTF 30° x 1/2″ Female NPSM Swivel

Connection Details	Side 1 Connection Type: Male NPTF 30° Side 1 Pipe Size: 1/2" Side 1 Thread Type: 1/2-14 NPTF Side 1 Standard: SAE J476 Side 1 Role: Line/Pipe Connection Side 2 Connection Type: Female NPSM Swivel Side 2 Pipe Size: 1/2" Side 2 Thread Type: 1/2-14 NPSM Side 2 Standard: SAE J514 Side 2 Role: Line/Pipe Connection
Body & Materials	Shape: 45° Elbow Shape Type: Male Swivel Elbow Primary Material: Steel Material Grade: C1045 Plating: Trivalent Zinc
Dimensions	Weight: 0.24 lb
Performance Specifications	Working Pressure: 5000 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 20000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2049-8-8S Parker Hose Part Number: 3107-8-8 Parker TFD Part Number: 3107-8-8 SAE J514 Part Number: SAE J514 8-8 140330C
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male Pipe x Female Pipe Swivel
Technical Series Configuration	SAE J476 Male NPTF x Female NPSM Swivel 45° Elbow
Side 1 Connection Type	Male NPTF 30°
Side 2 Connection Type	Female NPSM Swivel
Shape	45° Elbow
Product Type	Fittings
