1502-08-08-FG - Capital Rubber & Gasket: A Singer Industrial Company

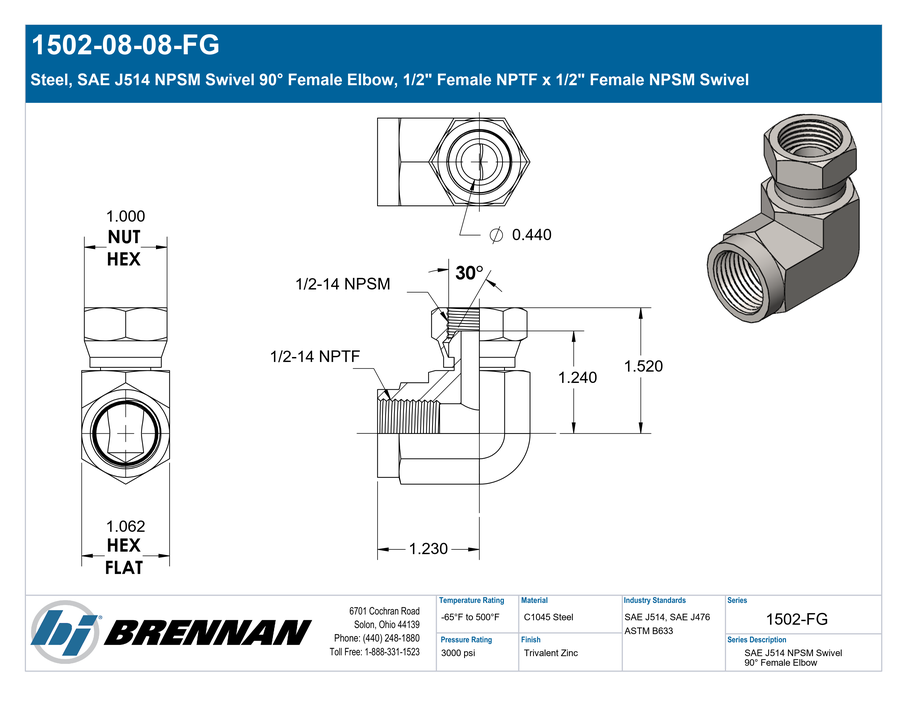

Steel, SAE J514 NPSM Swivel 90° Female Elbow, 1/2″ Female NPTF x 1/2″ Female NPSM Swivel

Connection Details	Side 1 Connection Type: Female NPTF Side 1 Pipe Size: 1/2" Side 1 Thread Type: 1/2-14 NPTF Side 1 Standard: SAE J476 Side 1 Role: Pipe Connection Side 2 Connection Type: Female NPSM Swivel Side 2 Pipe Size: 1/2" Side 2 Thread Type: 1/2-14 NPSM Side 2 Standard: SAE J514 Side 2 Role: Line/Pipe Connection
Body & Materials	Shape: 90° Elbow Shape Type: Female Swivel Elbow Primary Material: Steel Material Grade: C1045 Plating: Trivalent Zinc
Dimensions	Weight: 0.43 lb
Performance Specifications	Working Pressure: 3000 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 12000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2048-8-8S Parker TFD Part Number: 2207-8-8 SAE J514 Part Number: SAE J514 8-8 140231C
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Female Pipe x Female Pipe Swivel
Technical Series Configuration	SAE J476 Female NPTF x Female NPSM Swivel 90° Elbow
Side 1 Connection Type	Female NPTF
Side 2 Connection Type	Female NPSM Swivel
Shape	90° Elbow
Product Type	Fittings
