1502-06-08-SS - Capital Rubber & Gasket: A Singer Industrial Company

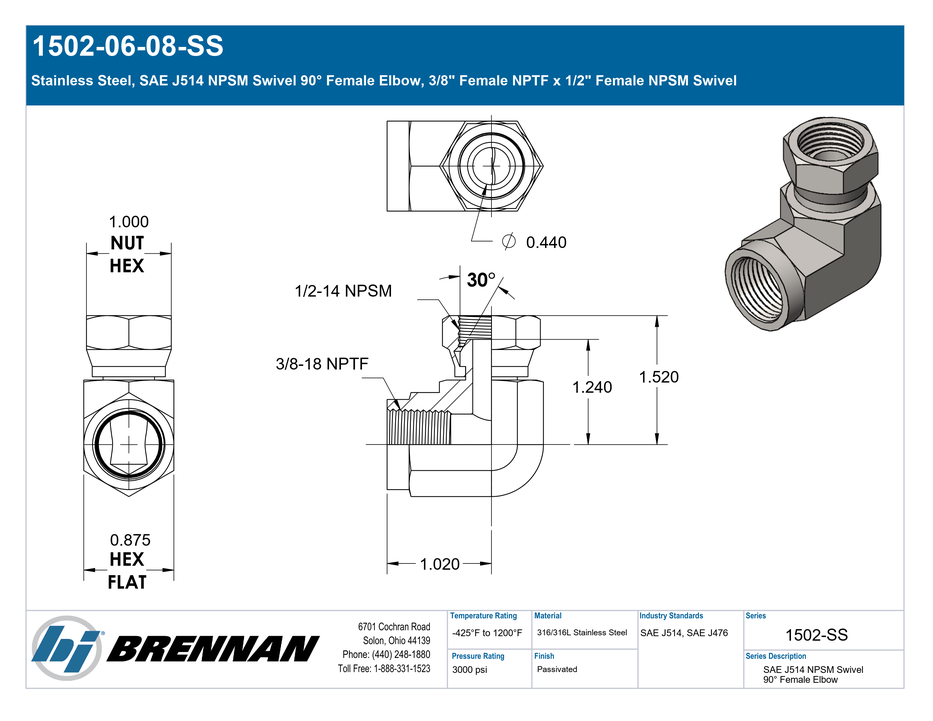

Stainless Steel, SAE J514 NPSM Swivel 90° Female Elbow, 3/8″ Female NPTF x 1/2″ Female NPSM Swivel

Connection Details	Side 1 Connection Type: Female NPTF Side 1 Pipe Size: 3/8" Side 1 Thread Type: 3/8-18 NPTF Side 1 Standard: SAE J476 Side 1 Role: Pipe Connection Side 2 Connection Type: Female NPSM Swivel Side 2 Pipe Size: 1/2" Side 2 Thread Type: 1/2-14 NPSM Side 2 Standard: SAE J514 Side 2 Role: Line/Pipe Connection
Body & Materials	Shape: 90° Elbow Shape Type: Female Swivel Elbow Primary Material: Stainless Steel Material Grade: 316/316L
Dimensions	Weight: 0.30 lb
Performance Specifications	Working Pressure: 3000 psi Temperature Range: -425°F to 1200°F Burst Pressure: 12000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-2048-8-6 Parker TFD Part Number: 2207-6-8-SS SAE J514 Part Number: SAE J514 8-6 140231S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Female Pipe x Female Pipe Swivel
Technical Series Configuration	SAE J476 Female NPTF x Female NPSM Swivel 90° Elbow
Side 1 Connection Type	Female NPTF
Side 2 Connection Type	Female NPSM Swivel
Shape	90° Elbow
Product Type	Fittings
