1501-32-32-SS - Capital Rubber & Gasket: A Singer Industrial Company

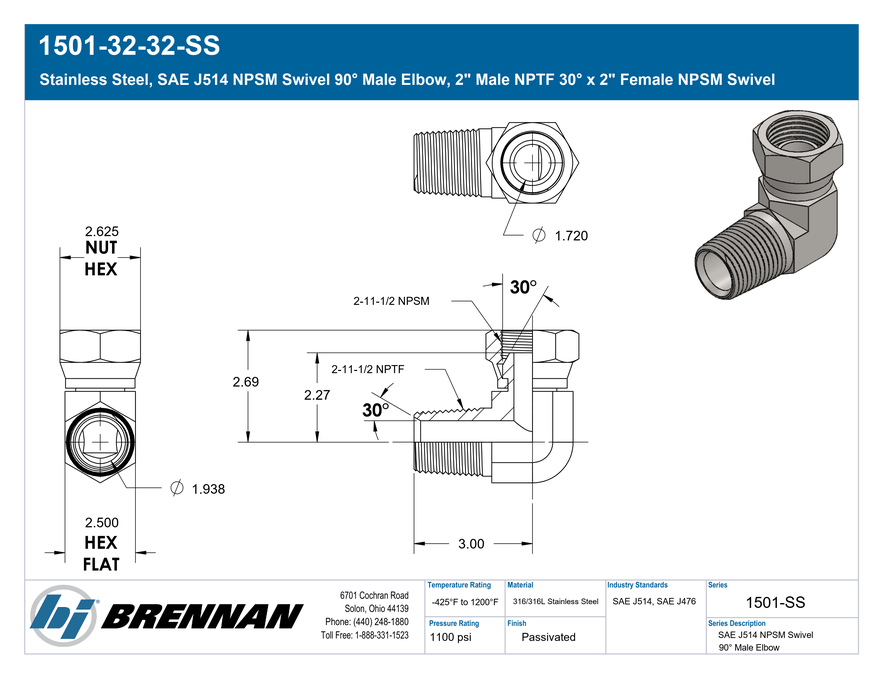

Stainless Steel, SAE J514 NPSM Swivel 90° Male Elbow, 2″ Male NPTF 30° x 2″ Female NPSM Swivel

Connection Details	Side 1 Connection Type: Male NPTF 30° Side 1 Pipe Size: 2" Side 1 Thread Type: 2-11-1/2 NPTF Side 1 Standard: SAE J476 Side 1 Role: Line/Pipe Connection Side 2 Connection Type: Female NPSM Swivel Side 2 Pipe Size: 2" Side 2 Thread Type: 2-11-1/2 NPSM Side 2 Standard: SAE J514 Side 2 Role: Line/Pipe Connection
Body & Materials	Shape: 90° Elbow Shape Type: Male Swivel Elbow Primary Material: Stainless Steel Material Grade: 316/316L
Dimensions	Weight: 3.85 lb
Performance Specifications	Working Pressure: 1100 psi Temperature Range: -425°F to 1200°F Burst Pressure: 4400 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-2047-32-32 Parker TFD Part Number: 2107-32-32-SS SAE J514 Part Number: SAE J514 32-32 140230S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male Pipe x Female Pipe Swivel
Technical Series Configuration	SAE J476 Male NPTF x Female NPSM Swivel 90° Elbow
Side 1 Connection Type	Male NPTF 30°
Side 2 Connection Type	Female NPSM Swivel
Shape	90° Elbow
Product Type	Fittings
