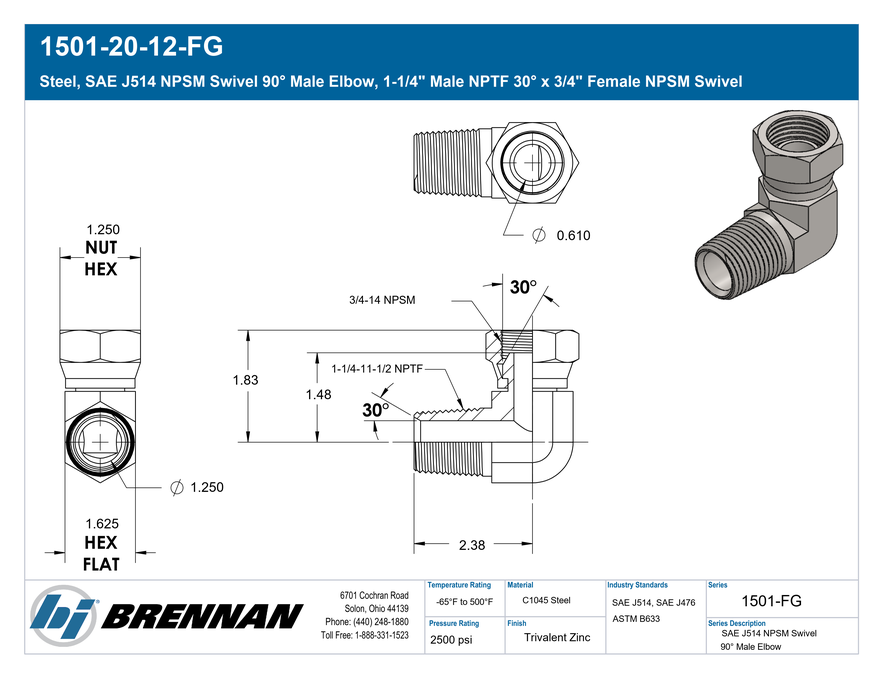

Steel, SAE J514 NPSM Swivel 90° Male Elbow, 1-1/4″ Male NPTF 30° x 3/4″ Female NPSM Swivel

Connection Details	Side 1 Connection Type: Male NPTF 30° Side 1 Pipe Size: 1-1/4" Side 1 Thread Type: 1-1/4-11-1/2 NPTF Side 1 Standard: SAE J476 Side 1 Role: Line/Pipe Connection Side 2 Connection Type: Female NPSM Swivel Side 2 Pipe Size: 3/4" Side 2 Thread Type: 3/4-14 NPSM Side 2 Standard: SAE J514 Side 2 Role: Line/Pipe Connection
Body & Materials	Shape: 90° Elbow Shape Type: Male Swivel Elbow Primary Material: Steel Material Grade: C1045 Plating: Trivalent Zinc
Dimensions	Weight: 1.28 lb
Performance Specifications	Working Pressure: 2500 psi Temperature Range: -65°F to 500°F Corrosion Resistance: 120 hrs no white rust; 240 hrs no red rust per ASTM B117 Burst Pressure: 10000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 2047-12-20S Parker TFD Part Number: 2107-20-12 SAE J514 Part Number: SAE J514 12-20 140230C
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male Pipe x Female Pipe Swivel
Technical Series Configuration	SAE J476 Male NPTF x Female NPSM Swivel 90° Elbow
Side 1 Connection Type	Male NPTF 30°
Side 2 Connection Type	Female NPSM Swivel
Shape	90° Elbow
Product Type	Fittings
