1405-06-04-SS - Capital Rubber & Gasket: A Singer Industrial Company

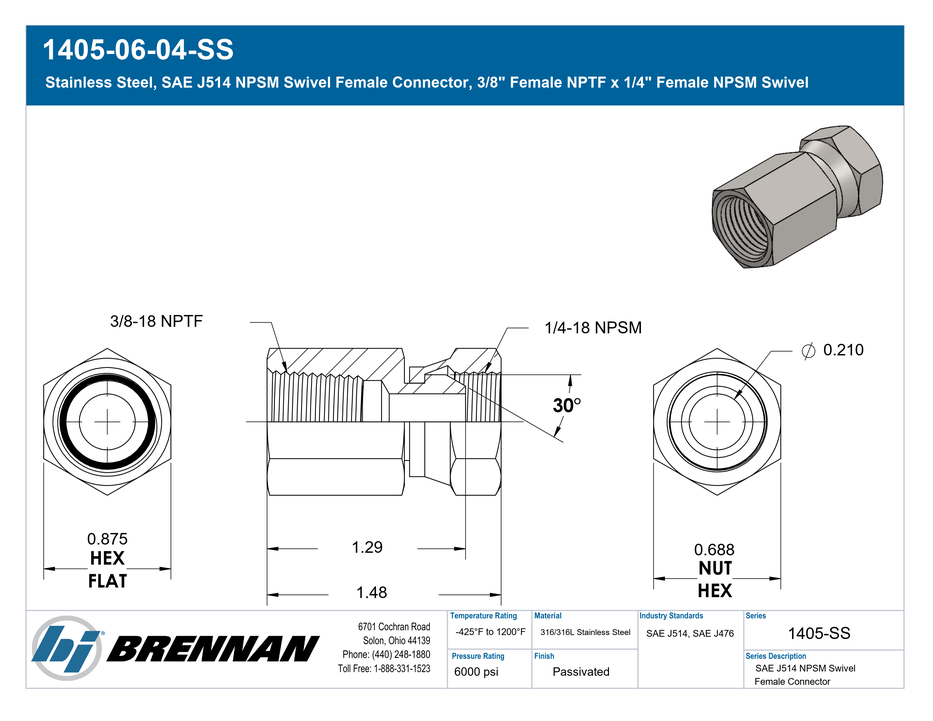

Stainless Steel, SAE J514 NPSM Swivel Female Connector, 3/8″ Female NPTF x 1/4″ Female NPSM Swivel

Connection Details	Side 1 Connection Type: Female NPTF Side 1 Pipe Size: 3/8" Side 1 Thread Type: 3/8-18 NPTF Side 1 Standard: SAE J476 Side 1 Role: Pipe Connection Side 2 Connection Type: Female NPSM Swivel Side 2 Pipe Size: 1/4" Side 2 Thread Type: 1/4-18 NPSM Side 2 Standard: SAE J514 Side 2 Role: Line/Pipe Connection
Body & Materials	Shape: Straight Shape Type: Female Swivel Connector Primary Material: Stainless Steel Material Grade: 316/316L
Dimensions	Weight: 0.15 lb
Performance Specifications	Working Pressure: 6000 psi Temperature Range: -425°F to 1200°F Burst Pressure: 24000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-2046-4-6 Parker TFD Part Number: 0207-6-4-SS SAE J514 Part Number: SAE J514 4-6 140131S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Female Pipe x Female Pipe Swivel
Technical Series Configuration	SAE J476 Female NPTF x Female NPSM Swivel Connector
Side 1 Connection Type	Female NPTF
Side 2 Connection Type	Female NPSM Swivel
Shape	Straight
Product Type	Fittings
