1404-24-20-SS - Capital Rubber & Gasket: A Singer Industrial Company

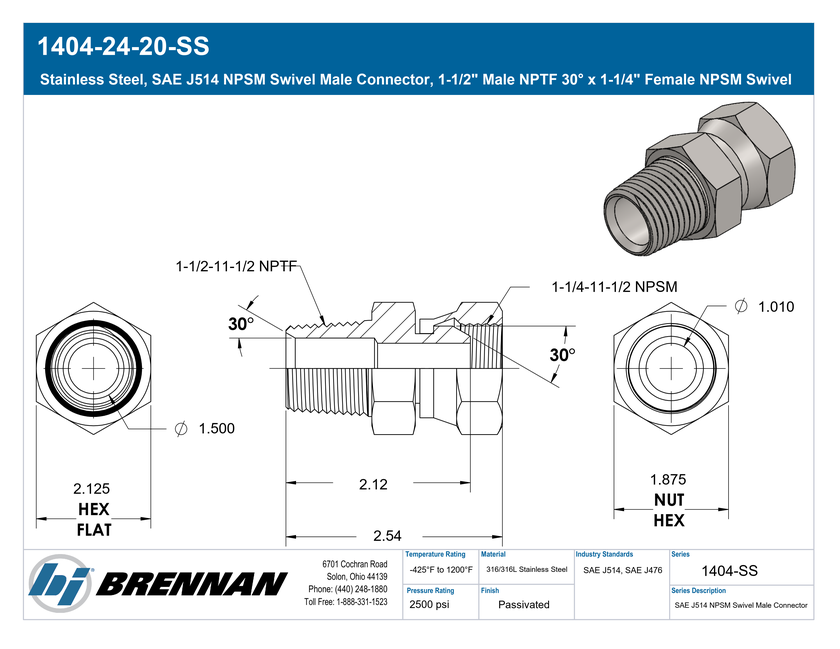

Stainless Steel, SAE J514 NPSM Swivel Male Connector, 1-1/2″ Male NPTF 30° x 1-1/4″ Female NPSM Swivel

Connection Details	Side 1 Connection Type: Male NPTF 30° Side 1 Pipe Size: 1-1/2" Side 1 Thread Type: 1-1/2-11-1/2 NPTF Side 1 Standard: SAE J476 Side 1 Role: Line/Pipe Connection Side 2 Connection Type: Female NPSM Swivel Side 2 Pipe Size: 1-1/4" Side 2 Thread Type: 1-1/4-11-1/2 NPSM Side 2 Standard: SAE J514 Side 2 Role: Line/Pipe Connection
Body & Materials	Shape: Straight Shape Type: Male Swivel Connector Primary Material: Stainless Steel Material Grade: 316/316L
Dimensions	Weight: 1.14 lb
Performance Specifications	Working Pressure: 2500 psi Temperature Range: -425°F to 1200°F Burst Pressure: 10000 psi Burst Ratio: 4:1
Cross References	Aeroquip Part Number: 259-2045-20-24 Parker Hose Part Number: 0107-24-20-SS Parker TFD Part Number: 0107-24-20-SS SAE J514 Part Number: SAE J514 20-24 140130S
Regulatory & Compliance	RoHS Compliance: Compliant REACH Compliance: No Substance(s) Present Above Threshold
Series Configuration	Male Pipe x Female Pipe Swivel
Technical Series Configuration	SAE J476 Male NPTF x Female NPSM Swivel Connector
Side 1 Connection Type	Male NPTF 30°
Side 2 Connection Type	Female NPSM Swivel
Shape	Straight
Product Type	Fittings
