130HMB3/16X1/8 - Capital Rubber & Gasket: A Singer Industrial Company

Brass Pipe Fitting, Hose Connector 3/16″ x Male NPT 1/8″

Connection Details	Side 1 Connection Type: Hose Connector Side 1 Hose ID: 3/16" Side 2 Connection Type: Male NPT Side 2 Pipe Size: 1/8" Side 2 Thread Type: 1/8-27 NPT Side 2 Standard: ASME/ANSI B1.20.1 Side 2 Role: Pipe Connection
Body & Materials	Shape: Straight Shape Type: Male Connector Primary Material: Brass Length: 1.27"

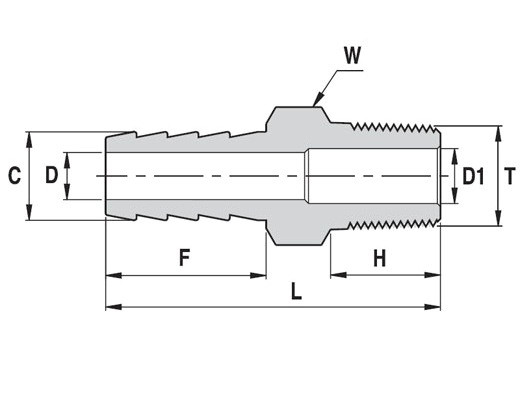

Dimensions	Hex/Wrench: 0.4375" Overall Length/Centerline: 1.27" Weight: 0.045 lb
Performance Specifications	Temperature Range: -325°F to 400°F
Cross References	Gal #: 3103256 Swagelok Part Number: B-3-HC-1-2
Series Configuration	Hose Connector x Male NPT
Side 1 Connection Type	Hose Connector
Side 2 Connection Type	Male NPT
Product Type	Fittings
