Stainless Steel 316 Pipe Fitting, Reducing Bushing, Male NPT 1/2″ x Female NPT 1/4″

Connection Details	Side 1 Connection Type: Male NPT Side 1 Pipe Size: 1/2" Side 1 Thread Type: 1/2-14 NPT Side 1 Standard: ASME/ANSI B1.20.1 Side 1 Role: Pipe Connection Side 2 Connection Type: Female NPT Side 2 Pipe Size: 1/4" Side 2 Thread Type: 1/4-18 NPT Side 2 Standard: ASME/ANSI B1.20.1 Side 2 Role: Pipe Connection
Body & Materials	Shape: Straight Shape Type: Reducer Bushing Primary Material: Stainless Steel Material Grade: 316L Surface Treatment: Passivated Length: 1.08"

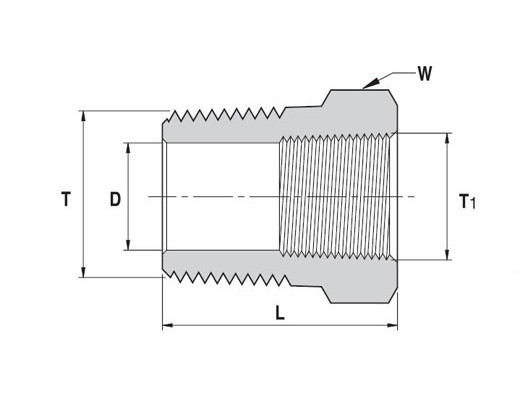

Dimensions	Hex/Wrench: 0.875" Overall Length/Centerline: 1.08" Weight: 0.111 lb
Performance Specifications	Temperature Range: -425°F to 1200°F
Cross References	Gal #: 3001073 Parker IPD ALOK Part Number: 8-4 RB-SS Swagelok Part Number: SS-8-RB-4
Series Configuration	Male NPT x Female NPT
Side 1 Connection Type	Male NPT
Side 2 Connection Type	Female NPT
Product Type	Fittings
